Behringer HEAVY DISTORTION HD300 Manual

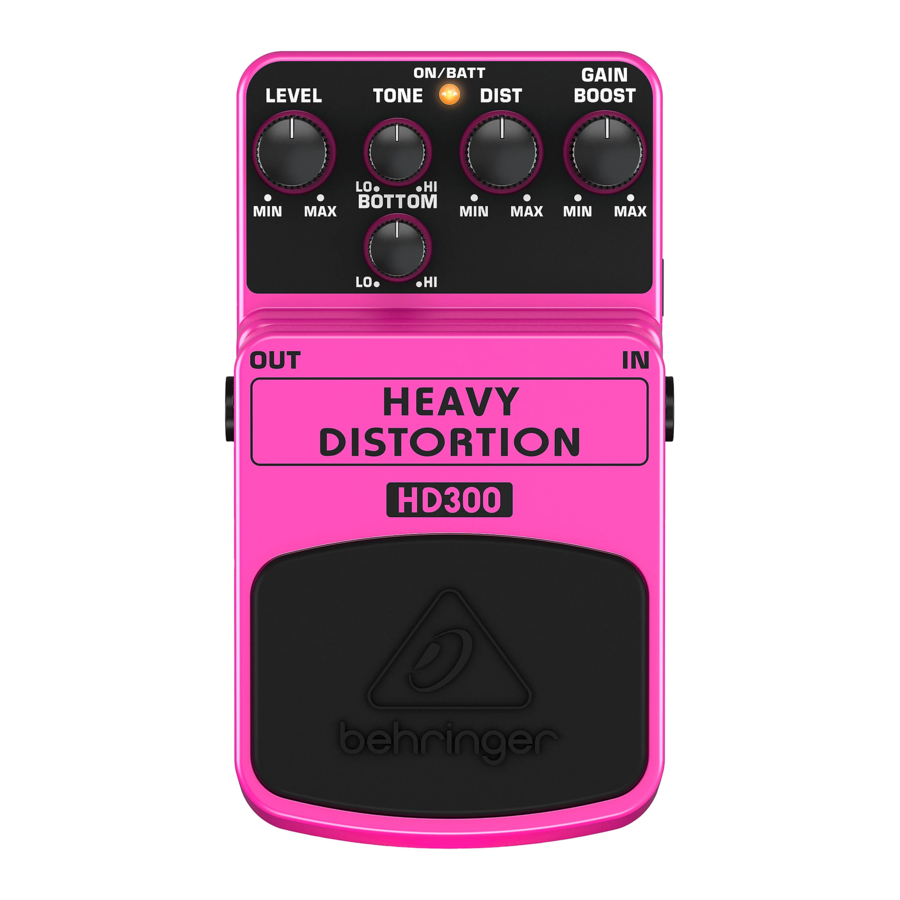

Controls

1. The LEVEL control adjusts the output level.
2. The TONE control allows you to shape your overall sound.
3. The BOTTOM control allows you to boost/cut the low frequency range.
4. The DIST(ortion) control adjusts the amount of distortion.
5. The GAIN BOOST control adjusts the gain for more extreme distortion sounds.
6. The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
7. Use the footswitch to activate/deactivate the effect.
8. Use this ¼" TS IN connector to plug in the instrument cable.
9. The ¼" TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to scratch the unit.

• The HD300 has no on/off switch. As soon as you insert the plug into the in connector, the HD300 is on. When not in use, remove the plug from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the underside.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• As with all small batteries, the batteries used with this product should be kept away from small children who still put things in their mouths. If they are swallowed, promptly call your local poison control center.
• Always purchase the correct size and grade of battery most suitable for intended use.
• Replace all batteries of a set at the same time.
• Clean the battery contacts and also those of the device prior to battery installation.
• Ensure the batteries are installed correctly with the regard to polarity (+ and -).
• Always remove battery if consumed or if product is to be left unused for a long time.
• Replacement of a battery with an incorrect type that can defeat a safeguard! Replace only with the same or equivalent type!
• Risk of fire or explosion if the battery is replaced by an incorrect type.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas; and
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.
• Attention should be drawn to the environmental aspects of battery disposal.

Specifications

In

Connector: ¼" TS
Impedance: 500 kΩ

Out

Connector: ¼" TS
Impedance: 1 kΩ

Power Supply

9 V , 100 mA regulated

Physical / Weight

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Support

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/support.

Safety Instruction

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Use only attachments/ accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
11. Do not install in a confined space, such as a book case or similar unit.
12. Do not place naked flame sources, such as lighted candles, on the apparatus.
