Behringer ULTRA CHORUS UC200 Manual

Introduction

Thank you for showing your confidence in us by purchasing the Behringer ULTRA CHORUS UC200. This ultimate effects pedal is designed to deliver super-thick chorus with unbelievable stereo effect. Thanks to its high-performance features you'll have full parameter control for absolute flexibility and limitless creative options.
The chorus effect slightly detunes the original signal. A very pleasant detune effect is created in connection with the pitch variation. The chorus effect is used often and quite extensively used for dispersing signals.

Controls

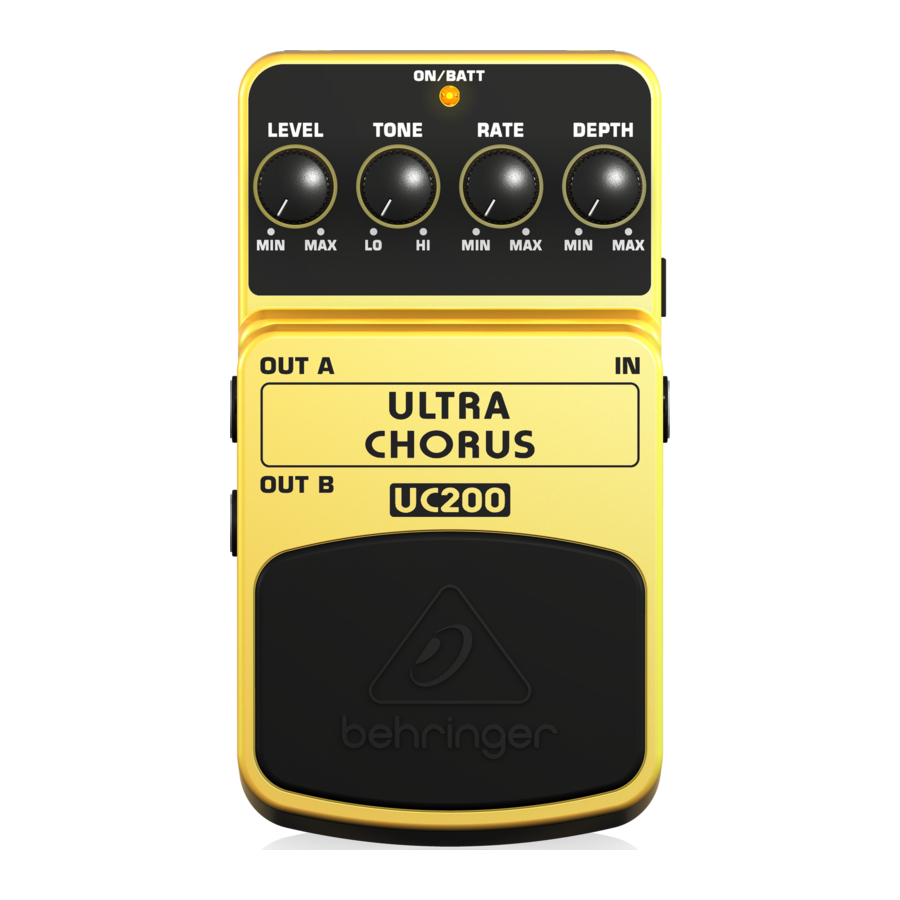

Controls Overview

The LEVEL control adjusts the output level.
The TONE control allows you to adjust the overall effects sound and achieve a more defined and brilliant tone.
The RATE control determines the chorus effect speed.
Turn up the DEPTH control to achieve a fuller, deeper effect sound.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this ¼" TS INPUT connector to plug in the instrument cable.
The two ¼" TS connectors OUT A and OUT B send the signal to your amp. Use both connectors if you want to achieve full stereo chorus effect. For mono use just plug in OUT A.

Use the DC IN connection to plug in a 9 V power supply (not included). The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The UC200 has no on/off switch. As soon as you insert the jack into the in connector, the UC200 begins running. When not using the UC200, remove the jack from the IN connector. This extends the life of the battery.

The SERIAL NUMBER is located on the bottom.

Specifications

In
Connector		¼" TS
Impedance		500 kΩ
Out A
Connector		¼" TS
Impedance		1 kΩ
Out B
Connector		¼" TS
Impedance		1 kΩ
Power Supply
		9 V⎓, 100 mA regulated
Behringer PSU-SB	USA/Canada	120 V~, 60 Hz
	China/Korea	220 V~, 50 Hz
	U.K./Australia	240 V~, 50 Hz
	Europe	230 V~, 50 Hz
	Japan	100 V~, 50 - 60 Hz
Power connector		2 mm DC jack, negative center
Battery		9 V type 6LR61
Power consumption		30 mA
Physical/Weight
Dimensions (H x W x D)		approx. 2 1/8 x 2 3/4 x 4 4/5" approx. 54 x 70 x 123 mm
Weight		approx. 0.73 lbs / 0.33 kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
