Introduction

This ultimate effects pedal is specifically designed to deliver 24-bit high-resolution stereo reverbs comparable to state-ofthe-art studio processors. Thanks to six renowned modes and extensive parameter control for maximum creativity you'll have plenty of cool sounds at your disposal for every situation.

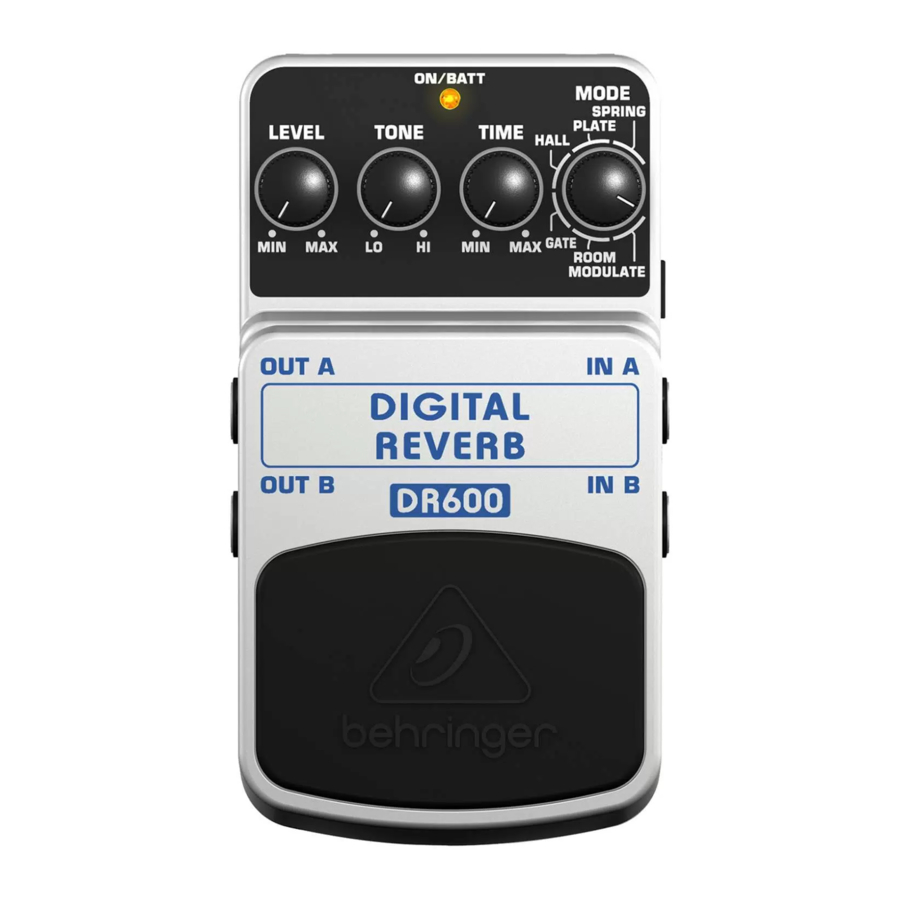

Controls

1. The LEVEL control adjusts the output level.
2. The TONE controlallows you to shape your overall sound.
3. The TIME control determines the rever time.
4. The MODE control lets you chose between six different reverb sounds:
   SPRING: Simulates classic spring reverberation.
   PLATE: Simulates the sound of plat reverberation.
   HALL: Very bright reverb that simulates the reflections of a concert hall.
   GATE: This effect snthetically cuts off reverberation after a period of time.
   ROOM: Clearly hear natural room acoustics.
   MODULATE: By detuning the reverb tail it creates spacious, almost choir-like reverb that reminds a little bit of a chorus effect.
5. The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
6. Use the footswitch to activate/deactivate the effect.
7. Use the two 1/4" TS connectors IN A and IN B to plug in a stereo input signal. For mono use just plug in IN A.
8. The two 1/4" TS connectorsOUT A and OUT B send the signal to your amp. Use both connectors if you want to achieve full stereo effect. For mono use just plug in OUT A.

Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to scratch the unit.

• The DR600 has no on/off switch. As soon as you insert the jack into the IN connector, the DR600 begins running. When not using the DR600, remove the jack from the IN connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

Specifications

In

Power Supply

	9 V, 100 mA regulated
Behringer PSU-SB
PSU-SB-CN Behringer	220 VAC adaptor China
PSU-SB-EU Behringer	230 VAC adaptor Europe
PSU-SB-JP Behringer	100 VAC adaptor Japan
PSU-SB-SAA Behringer	240 VAC adaptor Australia
PSU-SB-UK Behringer	240 VAC adaptor UK
PSU-SB-UL Behringer	115 VAC adaptor USA
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	30 mA

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
