Behringer VINTAGE DELAY VD400 Manual

Introduction

This ultimate effects pedal is designed to deliver amazing delay sounds comparable to state-of-the-art studio processors. Thanks to its parameter controls, you'll have plenty of cool sounds at your disposal to handle almost any situation. The delay effect creates a delay of the input signal with various repetitions. Different tempo settings allow interesting delay effects.

Controls

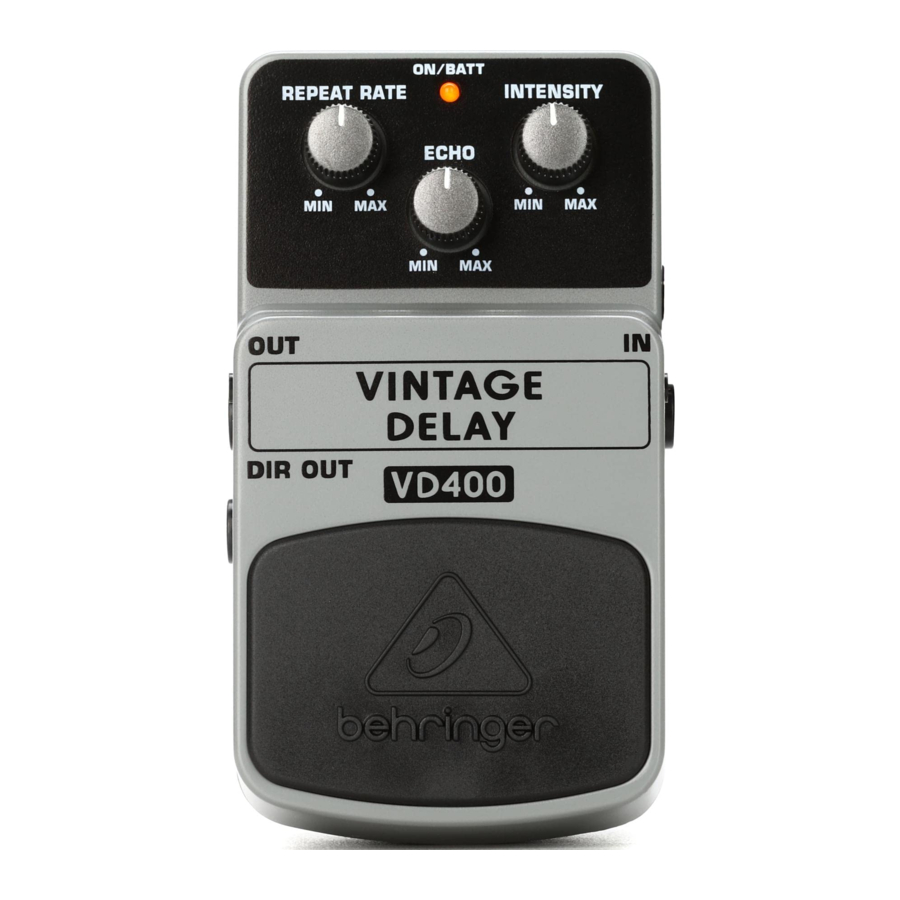

1. TheREPEAT RATE control adjusts the delay time (repetition rate).
2. TheECHO control adjusts the effect output level.
3. TheINTENSITY control adjusts the number of repetitions.
4. TheON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
5. Use the footswitch to activate/deactivate the effect.
6. Use this 1/4" TSIN connector to plug in the instrument cable.
7. The 1/4" TSOUT connector sends the signal to your amp.
8. The 1/4" TSDIR OUT connector sends the unaffected signal to connect, for example, to a separate amp.

If you use the OUT connector only, it will send the affected signal and, when deactivated, the unaffected signal. When using both the OUT and the DIR OUT, the VD400 acts like an A/B box. This means when activated, the OUT sends only the echo signal while the DIR OUT carries the dry signal. When deactivated the OUT is muted while the DIR OUT sends the unaffected signal.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to scratch the unit.

The VD400 has no on/off switch. As soon as you insert the plug into the in connector, the VD400 is on. When not in use, remove the plug from the in connector. This extends the life of the battery.
The SERIAL NUMBER is located at the underside.

Specifications

In
Connector	1/4" TS
Impedance	500 kΩ
In
Connector	1/4" TS
Impedance	1 kΩ
Power Supply
	9 V , 100 mA regulated
Behringer PSU-SB
USA/Canada	120 V~, 60 Hz
Europe/U.K./Australia	230 V~, 50 Hz
China	220 V~, 50 Hz
Korea	220 V~, 60 Hz
Japan	100 V~, 50/60 Hz
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	30 mA
Physical/Weight
Dimensions (H x W x D)	approx. 2 1/8 x 2 3/4 x 4 4/5" approx. 54 x 70 x 123 mm
Weight	approx. 0.73 lbs / 0.33 kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Safety Instruction

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Use only attachments / accessories specified by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. Do not install in a confined space, such as a book case or similar unit.
12. Do not place naked flame sources, such as lighted candles, on the apparatus.

This ultimate effects pedal is designed to deliver amazing delay sounds comparable to state-of-the-art studio processors. Thanks to its parameter controls, you'll have plenty of cool sounds at your disposal to handle almost any situation.
The delay effect creates a delay of the input signal with various repetitions. Different tempo settings allow interesting delay effects.
Safety Instructions
Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
