Behringer ULTRA OCTAVER UO300 Manual

Introduction

Thank you for showing your confidence in us by purchasing the Behringer ULTRA OCTAVER UO300. This high-quality effects pedal creates a monster sound by adding two additional tones using your guitar — one and two octaves below the original tone. Thanks to its high-performance features you'll get natural, clear octave sounds with constant pitch, even for staccato playing.
Octave effect is possible due to a circuitry that generates signals one or more octaves below the input signal.

Controls

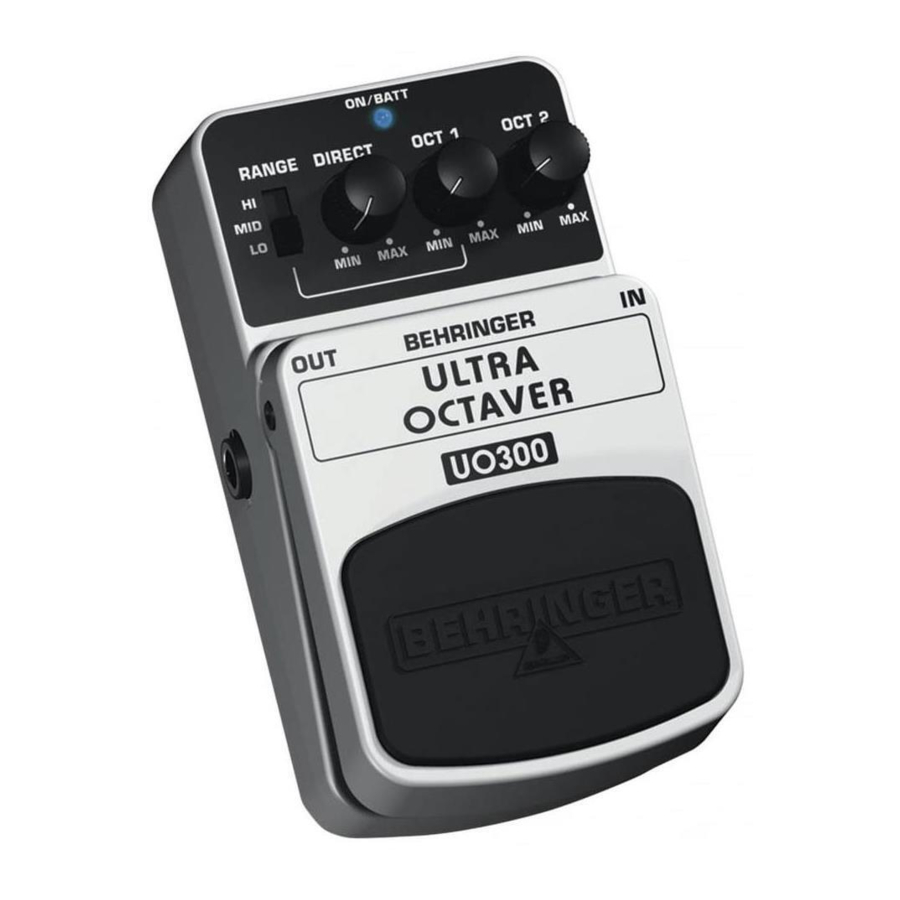

Controls Overview

The RANGE selector allows you to optimize the effects pedal for HIGH, MID and LOW frequencies and use instruments with different frequency ranges (guitar, bass guitar, keyboard, etc.)
The DIRECT control adjusts the level of the original input signal.
The OCT 1 control adjusts the level of the generated signal one octave below the original signal.
The OCT 2 control adjusts the level of the generated signal two octaves below the original signal.
The blue ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this ¼" TS IN connector to plug in the instrument cable.
The ¼" TS OUT connector sends the signal to your amp.

Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The UO300 has no on/off switch. As soon as you insert the jack into the in connector, the UO300 begins running. When not using the UO300, remove the jack from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

Specifications

In
Connector		¼" TS
Impedance		500 kΩ
Out
Connector		¼" TS
Impedance		1 kΩ
Power Supply
		9 V⎓, 100 mA regulated
Behringer PSU-SB	USA/Canada	120 V~, 60 Hz
	China/Korea	220 V~, 50 Hz
	U.K./Australia	240 V~, 50 Hz
	Europe	230 V~, 50 Hz
	Japan	100 V~, 50 - 60 Hz
Power connector		2 mm DC jack, negative center
Battery		9 V type 6LR61
Power consumption		30 mA
Physical/Weight
Dimensions (H x W x D)		approx. 54 x 70 x 123 mm (2.1 x 2.8 x 4.8")
Weight		approx. 0.33 kg (0.7 lbs)

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
