Behringer CHROMATIC TUNER TU300 Manual

Introduction

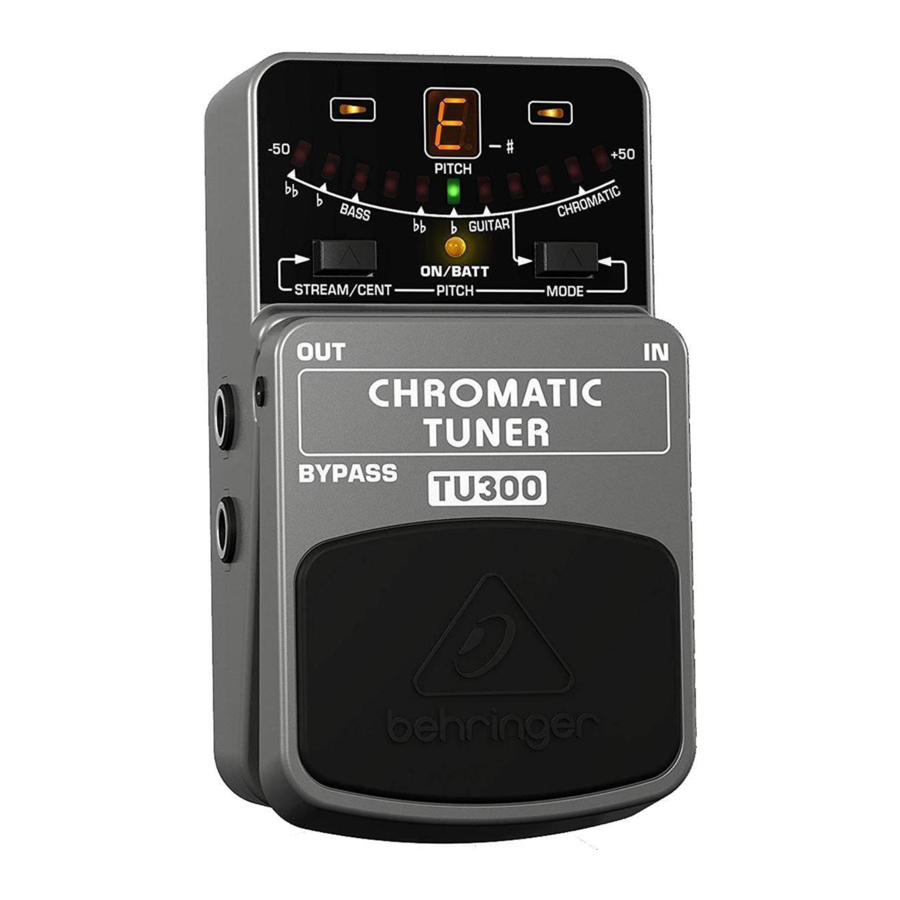

This compact guitar and bass tuner provides 7 different tuning modes. Thanks to its 7-segment LED display and 11-point LED indicators, it provides great visibility, especially in dark environments.

Controls

The ON/BATT LED illuminates when the tuner is activated. It also serves as a battery level indicator.
This LED meter indicates to what degree the instrument's tone deviates from the reference tone.
These yellow arrow LEDs light up when the played note is below or above pitch. Both LEDs will light up when the tone's pitch is correct.
The 7-segment LED display indicates the string number (high E string: "1", B string: "2" etc.) of the strummed string of your instrument, if the TU300 is operated in one of the guitar or bass modes. In chromatic mode it displays the note name. Semitones are shown by the decimal point LED ("#") in the display.
Press the STREAM/CENT button to switch between the LED display modes.
Press the MODE button to select the tuning mode.
Use the footswitch to activate/deactivate the tuner.
Connect your guitar or bass to the ¼" TS IN connector.
Connect your amp or another stompbox to the ¼" TS OUT connector. When the tuner is activated (footswitch pressed) the output is muted. This way, you can silently tune your guitar or bass.
The ¼" TS BYPASS connector always sends a signal to your amp independently of the footswitch position.

Use the DC IN connection at the right side of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

information The TU300 is powered as soon as you insert a plug into the INPUT. The battery is "disconnected" when the plug is removed. For this reason, the TU300 has no on/off switch. To extend battery life, always disconnect the input when the unit is not in use.

The SERIAL NUMBER is located at the bottom.

Warranty

Please register your new BEHRINGER equipment right after your purchase by visiting http://behringer.com.

Specifications

In
Connector	¼ " TS
Impedance	500 kΩ
Out
Connector	¼ " TS
Impedance	1 kΩ
Bypass
Connector	¼ " TS
Impedance	1 kΩ
Power Supply
	9 V , 100 mA regulated
BEHRINGER PSU-SB
USA/Canada	120 V~, 60 Hz
China/Korea	220 V~, 50 Hz
U.K./Australia	240 V~, 50 Hz
Europe	230 V~, 50 Hz
Japan	100 V~, 50 - 60 Hz
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	70 mA
Physical/Weight
Dimensions (H x W x D)	approx. 54 x 70 x 123 mm (2.1 x 2.8 x 4.8")
Weight	approx. 0.33 kg (0.7 lbs)

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualifi ed servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
