Behringer ULTRA METAL UM300 Manual

INTRODUCTION

This high-quality effects pedal comes with a dual-gain circuitry that enables you to produce super thick, tube-like distortion plus endless sustain. Thanks to its high-performance features you will achieve the most extreme and sought-after hard rock or heavy metal distortion sounds.

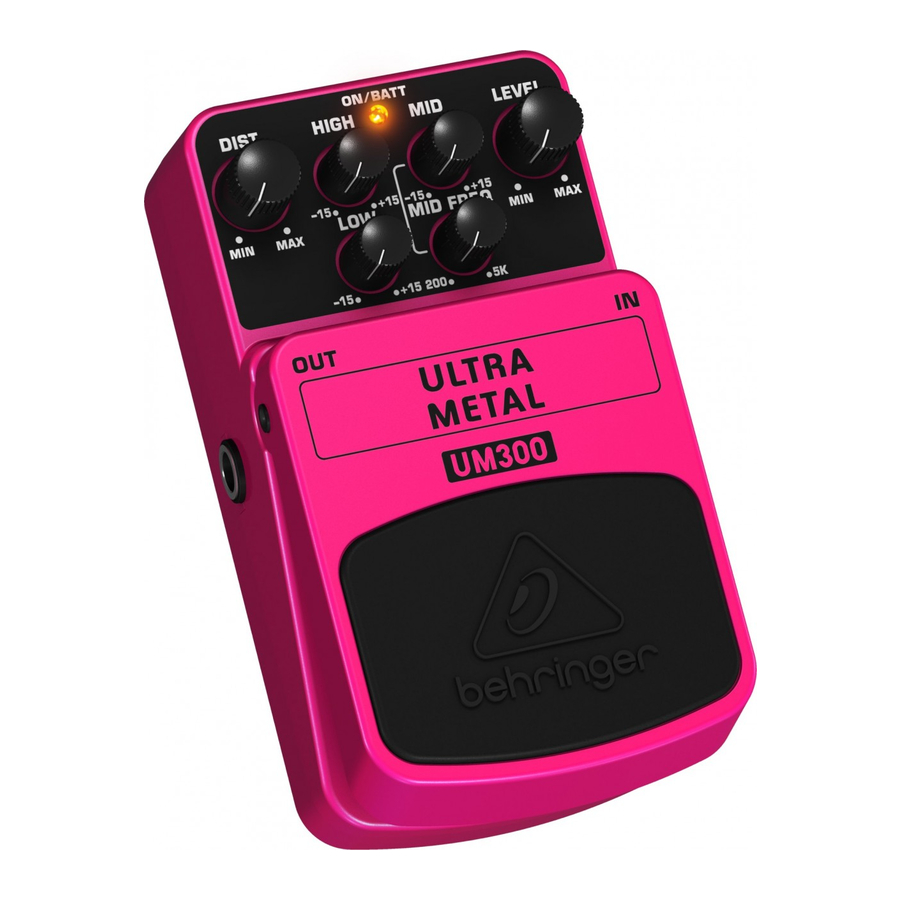

CONTROLS

The DIST(ortion) control adjusts the amount of distortion effect.
The HIGH control allows you to boost/cut the high-frequency range.
The LOW control allows you to boost/cut the low-frequency range.
- Please keep in mind that extreme distortion and EQ settings will increase noise and may induce oscillation.
The two MID FREQ(uency) controls allow to boost/cut a defined mid-frequency range. The upper control is used to increase or lower the mid range, the control below adjusts the center frequency of the mid range that is affected (200 Hz to 5 kHz).
The LEVEL control adjusts the output level.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this ¼" TS IN connector to plug in the instrument cable.
The ¼" TS OUT connector sends the signal to your amp.

Use the DC IN connection to plug in a 9 V power supply (not included).

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The UM300 has no on/off switch. As soon as you insert the jack into the IN connector, the UM300 begins running. When not using the UM300, remove the jack from the IN connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

Limited Warranty

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/pages/support#warranty.

Specifications

In
Connector	¼" TS
Impedance	500 kΩ
Out
Connector	¼" TS
Impedance	1 kΩ
Power Supply
	9 V , 100 mA regulated
Behringer PSU-SB
USA/Canada	120 V~, 60 Hz
U.K./Australia	240 V~, 50 Hz
China/Korea	220 V~, 50 Hz
Europe	230 V~, 50 Hz
Japan	100 V~, 50 - 60 Hz
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	30 mA
Physical/Weight
Dimensions (H x W x D)	approx. 2 ¹/₈ x 2 ³/₄ x 4 ⁴/₅" approx. 54 x 70 x 123 mm
Weight	approx. 0.73 lbs / 0.33 kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
