Behringer OVERDRIVE/DISTORTION OD300 Manual

Introduction

Thank you for showing your confidence in us by purchasing the BEHRINGER OVERDRIVE DISTORTION OD300. This effects pedal is ideally suited for electric guitars. Thanks to its high-performance features you can create state-of-the-art overdrive, distortion or a combination of both effects.

Controls

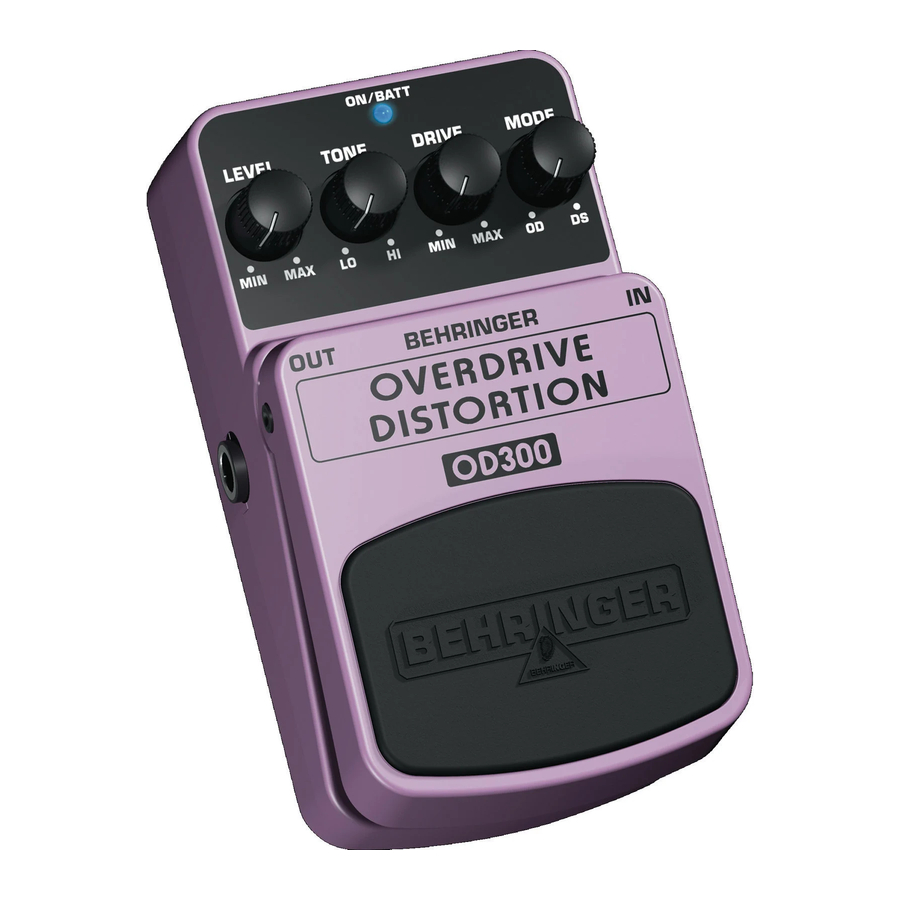

Controls Overview

The LEVEL control adjusts the output level.
The TONE control allows you to shape your overall sound.
The DRIVE control adjusts the intensity of the overdrive/distortion effect.
Use the MODE control to adjust the balance between overdrive and distortion effect. In leftmost position you got pure overdrive effect and in the rightmost position you get pure distortion.
The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
Use this ¼" TS IN connector to plug in the instrument cable.
The ¼" TS OUT connector sends the signal to your amp.

Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The OD300 has no on/off switch. As soon as you insert the jack into the in connector, the OD300 begins running. When not using the OD300, remove the jack from the in connector. This extends the life of the battery.

The SERIAL NUMBER is located at the bottom.

Specifications

In
Connector	¼" TS
Impedance	500 kΩ
Out
Connector	¼" TS
Impedance	1 kΩ
Power Supply
	9 V⎓, 100 mA regulated
BEHRINGER PSU-SB
USA/Canada	120 V~, 60 Hz
China/Korea	220 V~, 50 Hz
U.K./Australia	240 V~, 50 Hz
Europe	230 V~, 50 Hz
Japan	100 V~, 50 - 60 Hz
Power connector	2 mm DC jack, negative center
Battery	9 V type 6LR61
Power consumption	30 mA
Physical/Weight
Dimensions (H x W x D)	approx. 2 1/8 x 2 3/4 x 4 4/5" approx. 54 x 70 x 123 mm
Weight	approx. 0.73 lbs/0.33 kg

BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

Please register your new BEHRINGER equipment right after your purchase by visiting http://behringer.com and read the terms and conditions of our warranty carefully.
