Behringer VINTAGE TUBE OVERDRIVE TO800 Manual

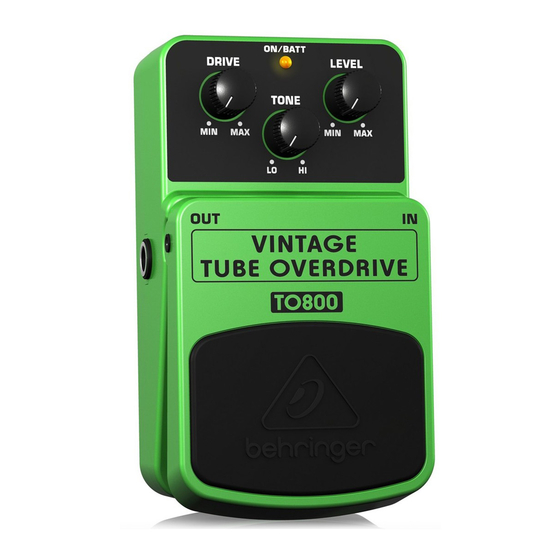

VINTAGE TUBE OVERDRIVE TO800
Vintage Tube-Sound Overdrive Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER VINTAGE TUBE
OVERDRIVE TO800. This high-quality effects pedal is ideally suited for giving electric guitars maximum
flexibility with classic overdrive sounds that capture every nuance of your playing—from smooth
overdrive to screaming tube sounds. Thanks to its high-performance features you get tube-like
vintage-style distortion, smooth sustain and super fat tone.

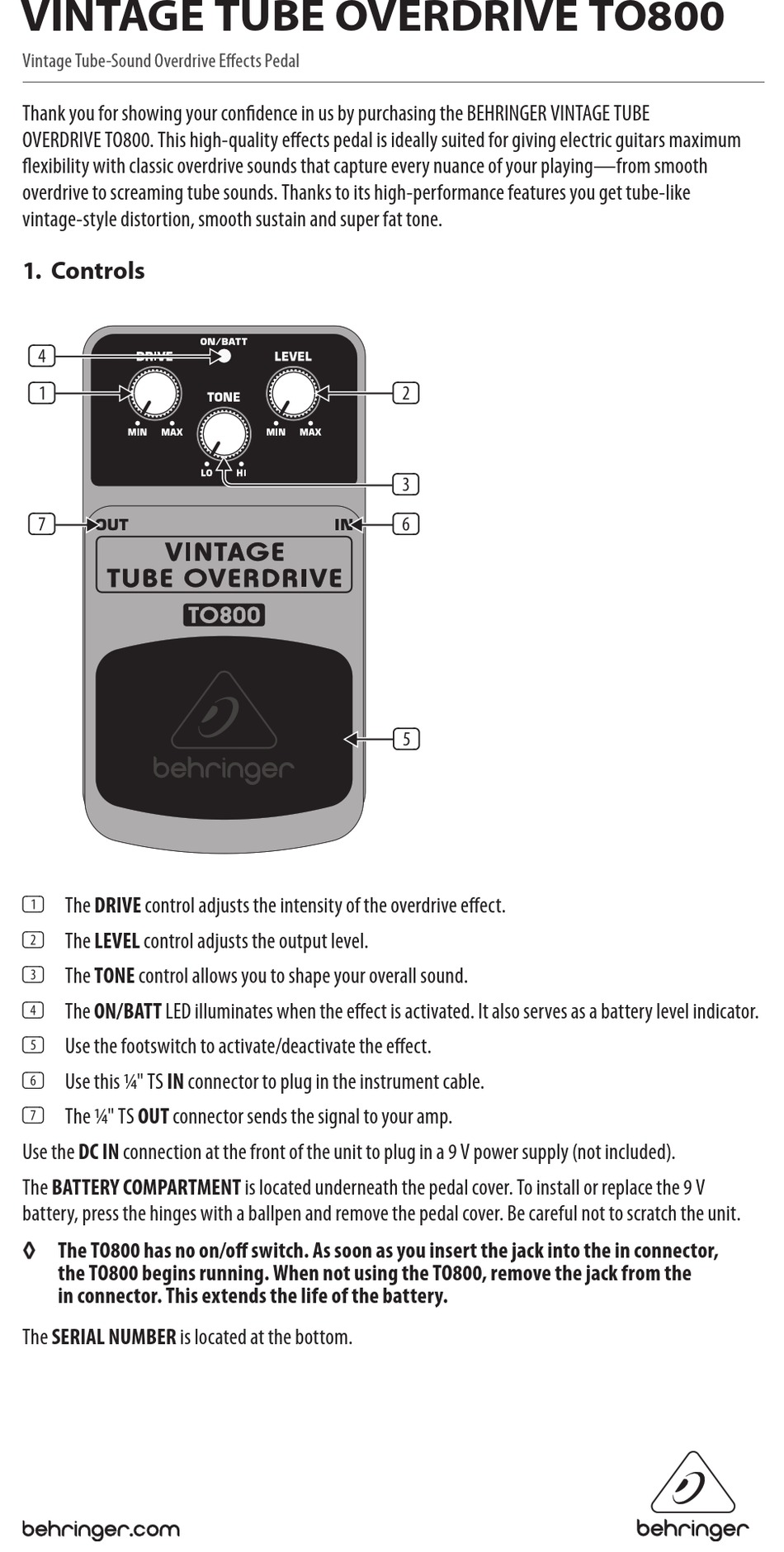

1. Controls

(4)
(1)
(7)
(1) The DRIVE control adjusts the intensity of the overdrive effect.
(2) The LEVEL control adjusts the output level.
(3) The TONE control allows you to shape your overall sound.
(4) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
(5) Use the footswitch to activate/deactivate the effect.
(6) Use this 1/4" TS IN connector to plug in the instrument cable.
(7) The 1/4" TS OUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V
battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.
◊
The TO800 has no on/off switch. As soon as you insert the jack into the in connector,
the TO800 begins running. When not using the TO800, remove the jack from the
in connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom.
