Page 1

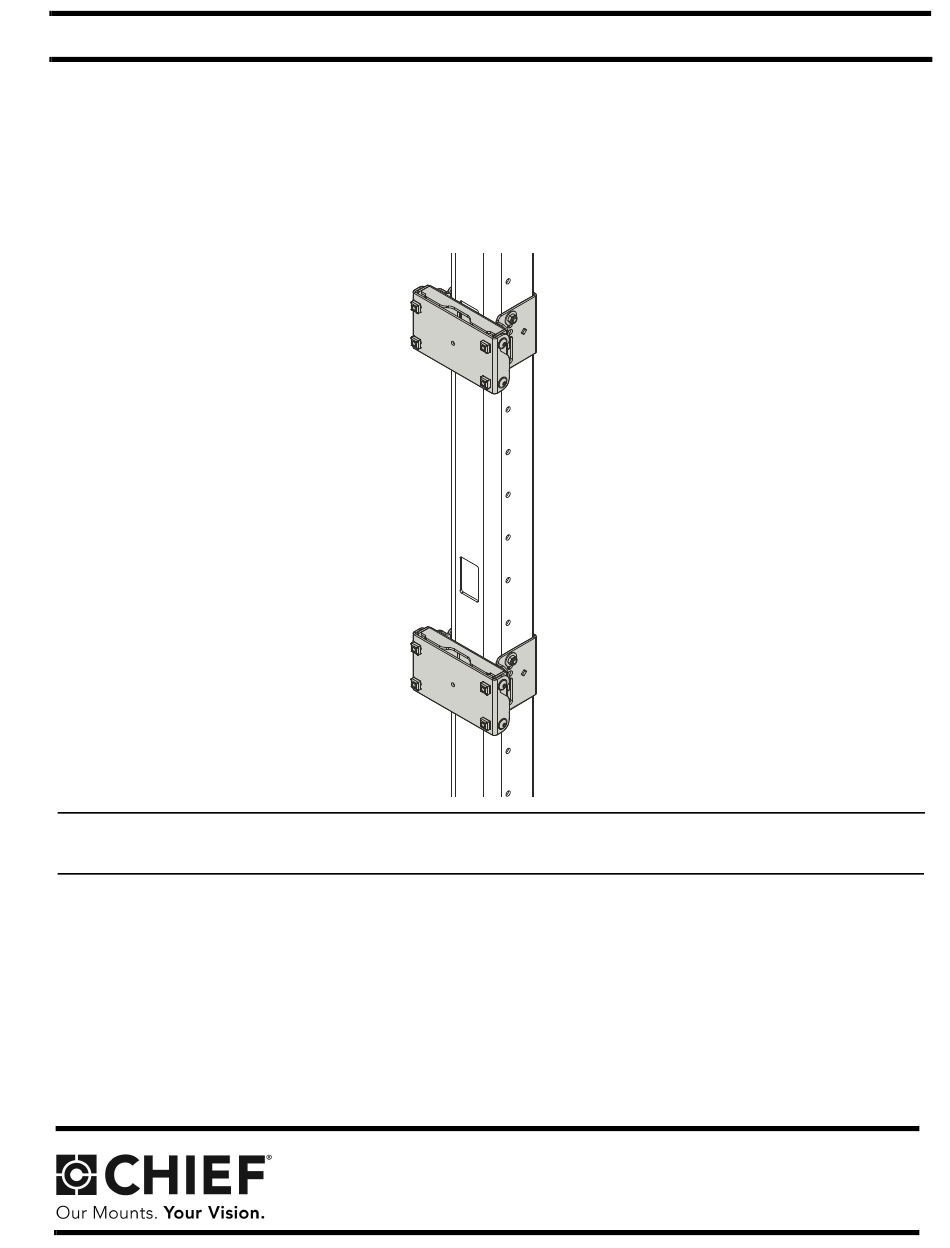

I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Modular Column to Rail Adapter Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FMSFR...
Page 2
--SAVE THESE INSTRUCTIONS- ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it. COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.
Page 3
Installation Instructions FMSFR DIMENSIONS LEGEND Tighten Fastener Hex-Head Wrench Apretar elemento de fijación Llave de cabeza hexagonal Befestigungsteil festziehen Sechskantschlüssel Apertar fixador Chave de cabeça sextavada Serrare il fissaggio Chiave esagonale Bevestiging vastdraaien Zeskantsleutel Serrez les fixations Clé à tête hexagonale...
Page 4
FMSFR Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2” (12.7mm) 3/8” (9.5mm) 3/16” (included) PARTS -Non-portrait Models- LBM2X2U/LBM3X2U/LBM3X3U/LBM1X2U/LBM1X3U (Portrait next page) A (5) B (1) C (8) 5/16-18 x 1/2” 5/16-18 x 4 1/2” 1/4-20 x 1/2” H (1) [clamp bracket]...
Page 5
Installation Instructions FMSFR Assembly And Installation NOTE: If some clearance is desired in between displays, install lower brackets slightly more than one screen height Rails Installation below upper brackets. Using display dimensions, determine where the center of the top displays will be on the cart.
Page 6
FMSFR Installation Instructions Use four 5/16-18 x 1/2" button head cap screws (A) to connect four square nuts (D) to quick connect bracket (K). (See Figure 5) (D) x4 (A) x 4 rail end cover Figure 7 11. Replace end cover removed in Step 8 using two removed Figure 5 screws.
Page 7
Installation Instructions FMSFR 14. Install two 5/16-18 x 3/4" button head flange screws (C) into the lower holes on each quick connect base (J) to secure rails to quick connect bases. (See Figure 9) 15. Tighten all 5/16-18 x 3/4" button head flange screws (C).
Page 8
FMSFR Installation Instructions USA/International A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 / 952.225.6000 F 877.894.6918 / 952.894.6918 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845...
