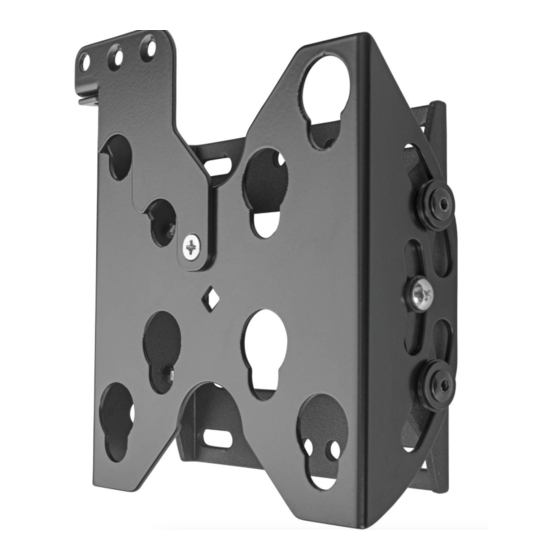

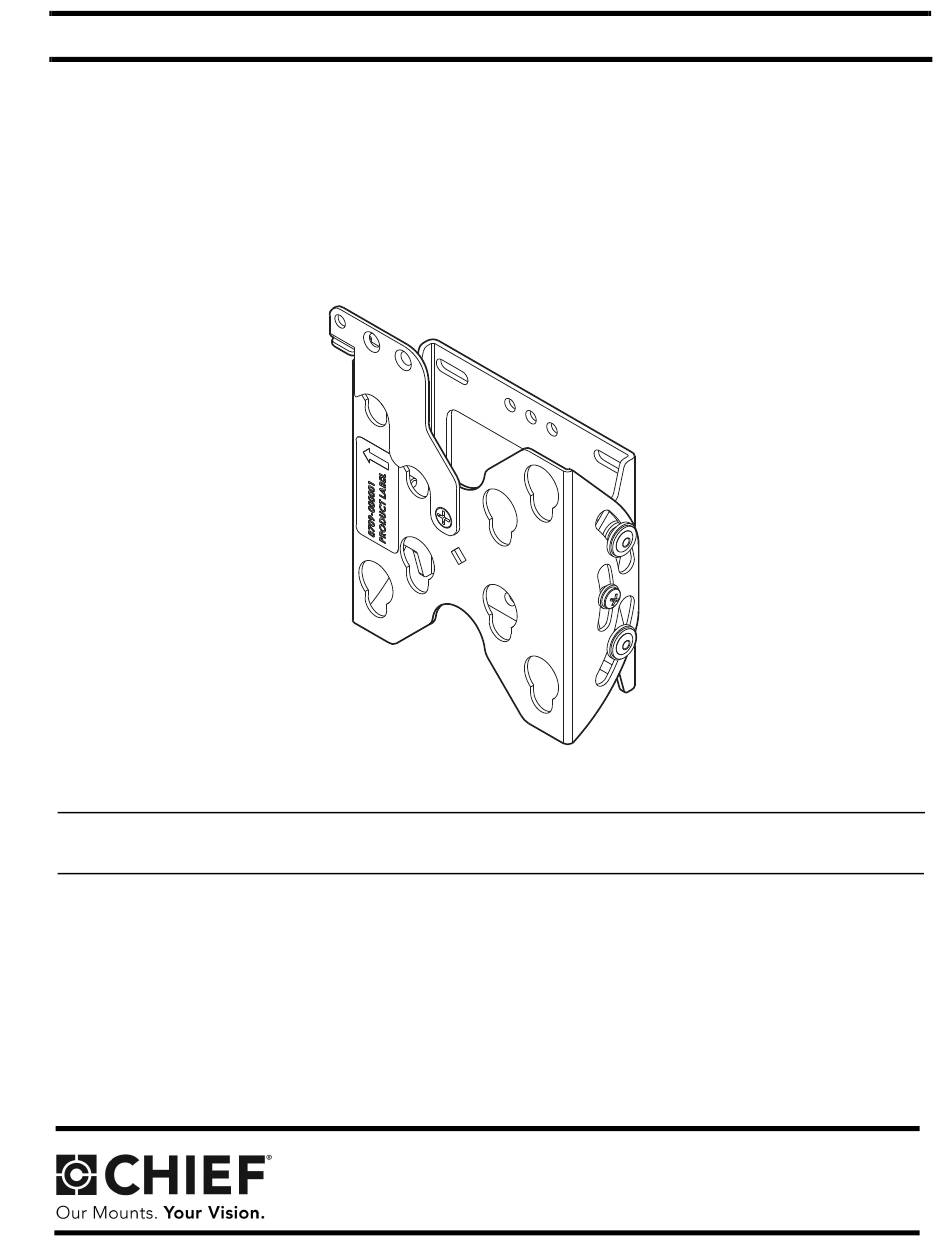

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Small Flat Panel Tilt Wall Mount Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FTR1U / FTR100...
-
Page 2: Important Safety Instructions
AN ACCESSORY is the secondary Chief WARNING: Do not use this mounting system outdoors. product which is attached to a primary Chief product, and may have a component attached or setting on it. IMPORTANT ! : The FTR1U/FTR100 mounts are designed to... -
Page 3: Installation Instructions
Installation Instructions FTR1U / FTR100 DIMENSIONS 4.00 101.6 0.38 5.78 0.99 146.7 25.2 4.00 2.50 101.6 63.5 1.38 0.50 34.9 1.88 12.7 47.6 2.38 60.3 3.75 0.25 95.3 3.94 1.90 1.97 100.0 50MM 48.2 MOUNTING 6.37 3.94 5.61 161.7 4.75 100MM 142.5... -
Page 4: Tools Required For Installation
FTR1U / FTR100 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon... - Page 5 5/8”. Do not install drywall anchors into the seam between drywall pieces. The FTR1U/FTR100 allows a tilt range from +5° to -15°. Determine approximate mounting location, keeping in mind Install Mount Centered to Single Wood Stud the display size.
- Page 6 (See Figure 4) Open latching flag by rotating flag clockwise on FTR1U/ NOTE: Anchor screw will feel tight until anchor begins to FTR100 assembly (A). (See Figure 6) collapse.
-
Page 7: Adjusting Tilt
Installation Instructions FTR1U / FTR100 Lift and maneuver display such that all mounting buttons fit into openings on FTR1U/FTR100 assembly (A). (See Figure 7) Add padlock here Lower display firmly into place. Ensure each mounting button has fully seated in the opening. (See Figure 7) Close latching flag by rotating flag counterclockwise on FTR1U/FTR100 assembly (A). - Page 8 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
