I N S T A L L A T I O N I N S T R U C T I O N S
FMSWM
FMSWA

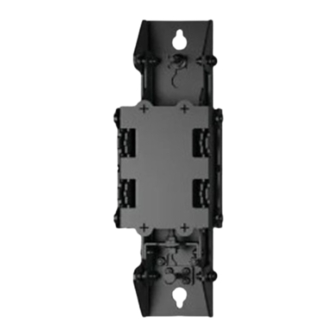

Fusion Modular Wall-Mounting Uprights
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FMSWM / FMSWA
Advertisement
Related Manuals for CHIEF FMSWA
Summary of Contents for CHIEF FMSWA

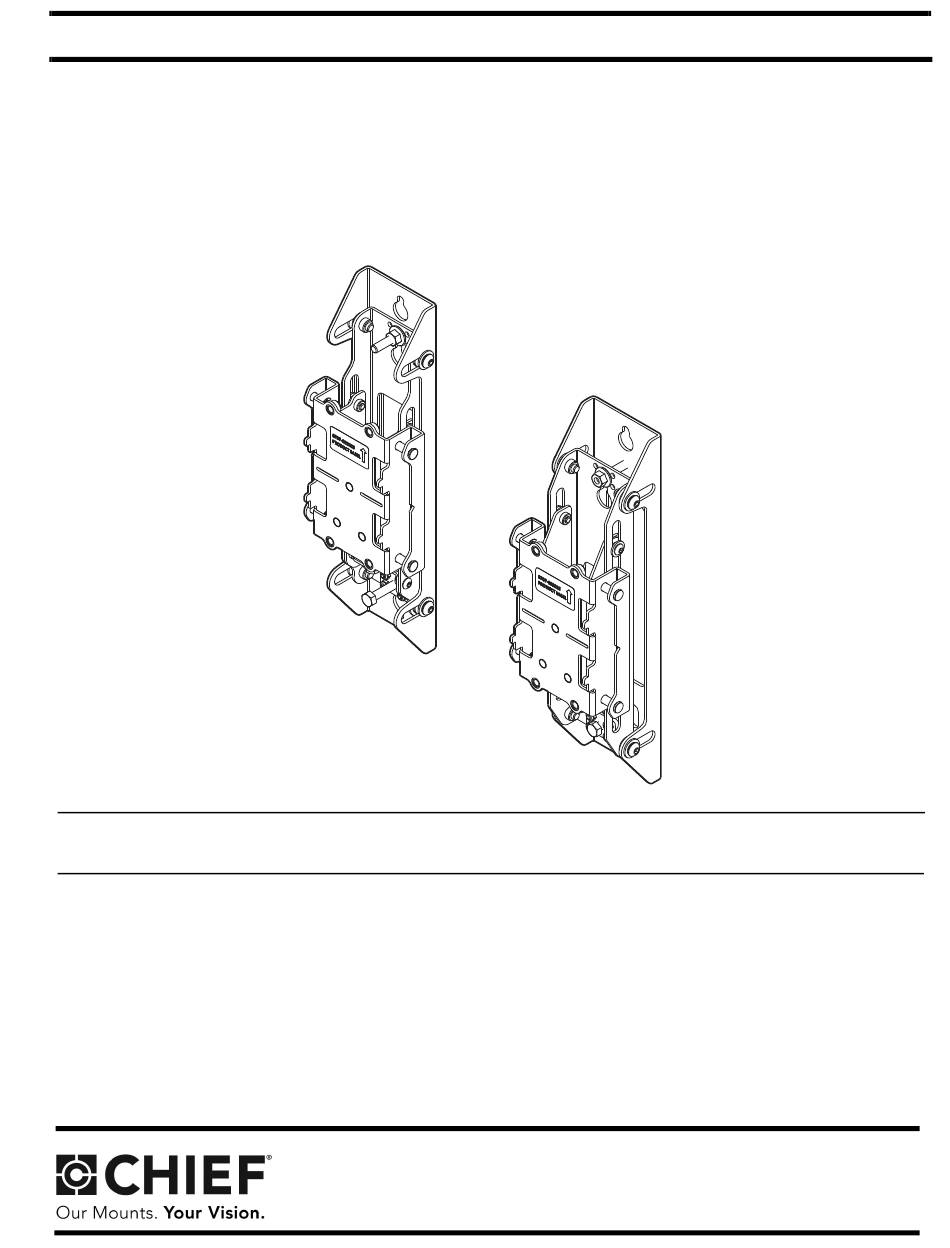

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S FMSWM FMSWA Fusion Modular Wall-Mounting Uprights Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description FMSWM / FMSWA...
-
Page 2: Important Safety Instructions
--SAVE THESE INSTRUCTIONS-- ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it. COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc. - Page 3 Installation Instructions FMSWM / FMSWA DIMENSIONS FMSWM 2.87 72.9 DISTANCE TO 0.63 BACK OF 15.9 EXTRUSION 1.00 25.4 2.00 50.8 HEIGHT ADJUST 7.00 177.8 15.25 387.4 C/L OF EXTRUSION 1.00 HEIGHT ADJUST 25.4 MINIMUM MAXIMUM SCREW 0.34 DEPTH ADJUST DEPTH...
-
Page 4: Tools Required For Installation
FMSWM / FMSWA Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon... - Page 5 Installation Instructions FMSWM / FMSWA INSTALLATION Remove wall upright assembly from outer bracket, while removing one shoulder washer and one steel washer from between outer bracket and wall upright assembly in four NOTE: The FMSWM outside wall uprights (A) ship assembled locations.
- Page 6 1/4-20 BB Snaptoggle anchor (2 ea) installation instructions. Use the FMSWM outside wall upright (A) or FMSWA center wall upright (B) as a model to mark upper and lower pilot Use, at a minimum, a 2" long Grade 5 hole placement for 2 outside wall uprights (and center wall screw with each anchor.
- Page 7 Installation Instructions FMSWM / FMSWA Installing to Wood Stud Walls Installing to Concrete Walls Drill one 7/32" (5.5mm) pilot hole in stud at upper mounting Drill one 3/8" x 3-1/2" (9.5mm x 88.9mm) pilot hole at each slot. (See Figure 7) marking.
- Page 8 FMSWM / FMSWA Installation Instructions Installing to Plywood-Backed Steel Stud Wall Installing into plywood (covered in 1/2" or 5/8" drywall) ONLY: Use two 1/4-20 BB Snaptoggle anchors OR 5/16-18 BE Snaptoggle anchors with two minimum 2" long, minimum Grade 5 screws through wall upright into plywood. (Hardware not included.) (See Figure 9)
- Page 9 Installation Instructions FMSWM / FMSWA Mounting Rails Attach one remaining end cap following FMSECAP installation instructions. Slide height adjust plates (C) into open end of mounting rail. (See Figure 10) Mounting rail (front view of rail) (back view of rail)
- Page 10 FMSWM / FMSWA Installation Instructions...
- Page 11 Installation Instructions FMSWM / FMSWA...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
