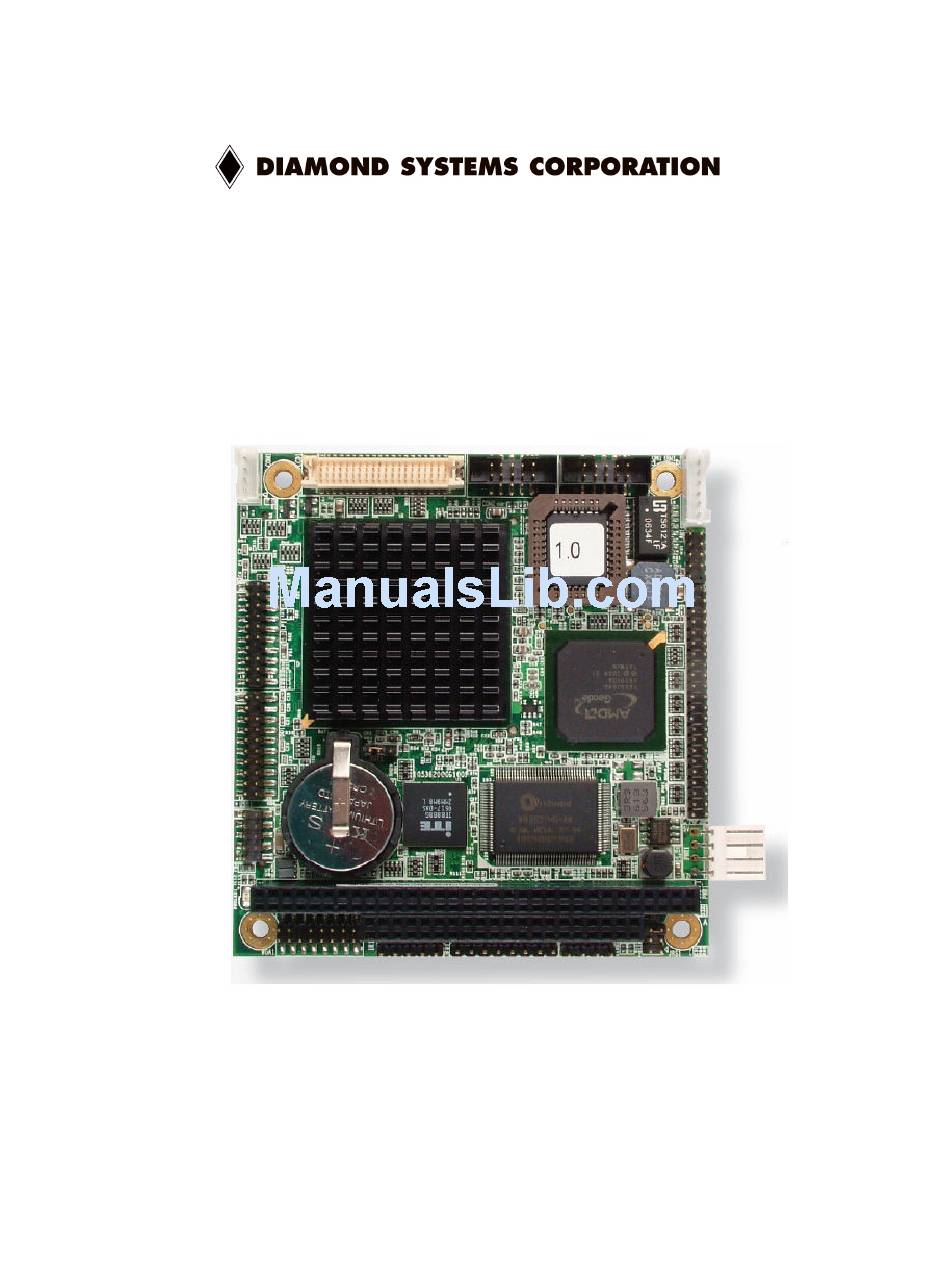

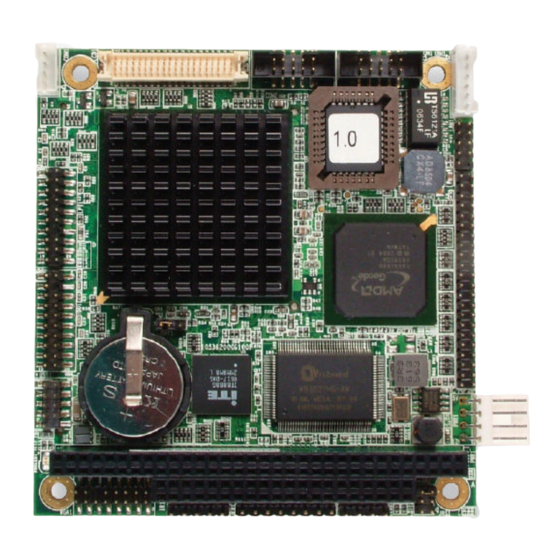

- Page 1 Rhodeus-LC Low Power AMD Geode™ LX800 PC/104 CPU Module with CRT/LCD, LAN and CF User’s Manual Copyright © 2008 Diamond Systems Corporation 1255 Terra Bella Ave. Mountain View, CA 94043 Tel (650) 810-2500 www.diamondsystems.com...
-
Page 2: Table Of Contents
Index Table of Contents Chapter 1 - Introduction 1.1 Copyright Notice 1.2 About User’s Manual 1.3 Warning 1.4 Replacing the lithium battery 1.5 Technical Support 1.6 Warranty 1.7 Packing List 1.8 Ordering Information 1.10 Board Dimensions Chapter 2 - Installation 2.1 Block Diagrams 2.2 Jumpers and Connectors KBM1: Keyboard &... - Page 3 COM1/ COM2: Serial Port Connector ...20 CFD1: CompactFlash II Socket ...21 2.3 The Installation Paths of CD Driver Chapter 3 - BIOS ...23 3.1 BIOS Introduction 3.2 BIOS Setup 3.3 Standard CMOS Features 3.4 Advanced BIOS Features 3.5 Advanced Chipset Features 3.6 Integrated Peripherals 3.8 PC Health Status 3.9 Load Optimized Defaults...
-
Page 4: Chapter 1 - Introduction
Introduction Chapter 1 Introduction Chapter 1 - Introduction - 1 - - 1 -... -
Page 5: Copyright Notice
1.1 Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages. -
Page 6: Replacing The Lithium Battery
Introduction 1.4 Replacing the lithium battery Incorrect replacement of the lithium battery may lead to a risk of explosion. The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with local regulations concerning special waste. -
Page 7: Warranty
Introduction 1.6 Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms. -
Page 8: Packing List
Introduction 1.7 Packing List 1 x Rhodeus-LC 1 x CD-ROM 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. 1.8 Ordering Information Rhodeus-LC PC/104 CPU module with AMD Geode™ LX800 (500MHz), 1 x SO-DIMM, CRT/LCD &... - Page 9 Form Factor PC/104 CPU module Processor AMD Geode™ LX800 Cache 64K L1 cache and 128K L2 cache Chipset AMD LX800 + CS5536 System Memory 1 x 200 pins DDR SO-DIMM up to 1GB SDRAM AMD Geode LX series CPU integrated VGA VGA/ LCD Controller controller with 2D Engine (Shared memory Max.
-
Page 10: Board Dimensions
Introduction 1.10 Board Dimensions Unit:mm - 7 -... - Page 11 Introduction Unit:mm - 8 -...
-
Page 12: Chapter 2 - Installation
Installation Chapter 2 Installation Chapter 2 - Installation - 9 -... -
Page 13: Block Diagrams
2.1 Block Diagrams Analog R.G.B. AMD Geode LX800 CPU TTL 18/24 bit 500MHz USB I/F 4 x USB AMD Geode IDE ATA I/F 1 x IDE CS5536 1 x CF 1 x 200pin Memory Bus SO-DIMM Socket PCI to ISA PCI Bus ISA Bus Bridge... -
Page 14: Jumpers And Connectors
Installation 2.2 Jumpers and Connectors CON1 LCD1 LPT1 FDD1 JBAT1 USB1 PC/104 VGA1 COM2 COM1 JRS1 JFRT1 LLED1 - 11 - KBM1 LAN1 IDE1 PWR1... - Page 15 Jumper / Connector Quick Reference Jumpers Label Function JRS1 COM2 RS-232/422/485 Select JBAT1 CMOS Jumper Settings Connectors DIMM1 200 pins DDR SDRAM DIMM Socket PC104_1 PC/104 for ISA Interface KBM1 PS/2 Keyboard and Mouse VGA1 CRT Display LCD1 TTL LCD Panel Connector COM1 ~ COM2 Serial Ports CON1...
-
Page 16: Kbm1: Keyboard & Mouse Connector
Installation KBM1: Keyboard & Mouse Connector (1) Connector type: 2.0mm pitch 1x6 pins wafer connector Description KB_DATA MS_DATA KB_CLK KB_VCC MS_CLK LAN1: Fast Ethernet Connector (2) Description Description N/C (Key) Connector type: 2.0mm pitch 2x5 pin header - 13 -... -
Page 17: Ide1: 44 Pin Ide Connector
IDE1: 44 pins IDE Connector (3) Connector type: 2.0mm pitch 2x22 pin header Description Description IDE RESET DATA7 DATA8 DATA6 DATA9 DATA5 DATA10 DATA4 DATA11 DATA3 DATA12 DATA2 DATA13 DATA1 DATA14 DATA0 DATA15 N/C (Key) IO WRITE IO READ IO READY IDESEL DACK IRQ14... -
Page 18: Pc/104: Pc/104 Isa Interface
Installation PC/104: PC/104 ISA Interface (5) Description Description MEMCS16# SBHE# IOCS16# LA23 IRQ10 LA22 IRQ11 LA21 IRQ12 LA20 IRQ15 SA19 IRQ14 SA18 DACK0# SA17 DREQ0 MEMR# DACK5# MEMW# DREQ5 DACK6# DREQ6 SD10 DACK7# SD11 DREQ7 SD12 SD13 MASTER# SD14 SD15 Connector type: PC104 PRESS FIT 2x20P connector C 1 9 D 1 9... -
Page 19: Jrs1: Com 2 Rs-232/422/485 Select
JRS1: COM 2 RS-232/422/485 Select (6) Connector type: 2.00mm pitch 2x3 pin header. Select RS-232 (Default) RS-422 RS-485 LLED1: LAN LED indicators (7) Connector type: 2.54mm pitch 1x4 pin header. Description LAN1_ACTIVE- LAN1_ACTIVE+ LAN1_LINK- LAN1_LINK+ JFRT1: Switches and Indicators (8) It provides connectors for system indicators that provides light indication of the computer activities and switches to change the computer status. -
Page 20: Ir1: Intrared Connector
Installation IR1: Infrared Connector (9) Connector Type: 2.54mm pitch 5 pins header Voltage IRRX IRTX VGA1: CRT Connector (10) Connector type: 2.0mm pitch 2x5 pin header Description BLUE N/C (Key) HSYNC VDCLK USB1: USB Connector (11) USB1 supports two USB 2.0 w/ 480MB/s by pin header Description Description USBD-... -
Page 21: Fdd1: 20 Pins Fdd Connector
FDD1: 20 pins FDD Connector (12) Connector type: 2.0mm pitch 2x10 pin header Description Write Data# Write Gate# Track 0# Write Protect# Read Data# Head Select# Disk Change# JBAT1: CMOS Setup (13) Connector type: 2.0 mm pitch 1x3 pin header. Mode Keep CMOS (Default) Clear CMOS... -
Page 22: Lpt1: 20 Pins Parallel Port Connector
Installation LPT1: 20 pins Parallel Port Connector (14) Connector type: 2.0mm pitch 2x10 pin header Description Description STROBE PTD0 ERROR PTD1 INIT PTD2 SLIN PTD3 PTD4 PTD5 GND (Key) PTD6 BUSY PTD7 SELECT CON1: RS-422/ 485 Output Connector (15) Connector type: 2.0mm pitch 1x4 pins wafer connector RS-422 RS-485 Data+... -
Page 23: Lcd1: Ttl Lcd Connector
LCD1: TTL LCD Connector (16) Connector type: DF-13-40DP-1.25V Description 5V_SAFE 3V_SAFE PD11 PD13 PD15 PD17 PD19 PD21 PD23 ENAVDD COM1/ COM2: Serial Port Connector (17), (18) Description Description Connector type: 2.0mm pitch 2x5 box pin header Description 5V_SAFE 3V_SAFE PD10 PD12 PD14 PD16... -
Page 24: Cfd1: Compactflash Ii Socket
Installation CFD1: CompactFlash II Socket CFD1 does not support hot swap. Description Description PDD3 PDD4 PDD11 PDD5 PDD12 PDD6 PDD13 PDD7 PDD14 CS#0 PDD15 CS#1 PDIOR# PDIOW# IRQ14 CSEL# IDE_RST# PDRDY PDA2 PDREQ PDA1 PDACK# PDA0 IDE_ACT# PDD0 CFDIAG PDD1 PDD8 PDD2 PDD9... -
Page 25: The Installation Paths Of Cd Driver
2.3 The Installation Paths of CD Driver Driver Path CHIPSET \Chiset\AMD\LX \ISA\ITE8888 \Ethernet\REALTEK\8100C \Graphics\AMD\LX Installation - 22 -... -
Page 26: Chapter 3 - Bios
BIOS Chapter 3 BIOS Chapter 3 - BIOS - 23 -... -
Page 27: Bios Introduction
BIOS 3.1 BIOS Introduction The Award BIOS (Basic Input/Output System) installed in your computer sys- tem’s. The BIOS provides for a standard device such as disk drives, serial ports and parallel ports. It also adds password protection as well as special 3.2 BIOS Setup The Award BIOS provides a Setup utility program for specifying the system utility. -
Page 28: Standard Cmos Features
BIOS 3.3 Standard CMOS Features “Standard CMOS Features” allows you to record some basic hardware error handling. If the CPU card is already installed in a working system, you will not need to select this option. You will need to run the Standard CMOS option, however, if you change Date Day : Sun to Sat The date format is:... -
Page 29: Ide Primary Hdds / Ide Secondary Hdds
IDE Primary HDDs / IDE Secondary HDDs The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. the second is the “Slave”. You will be asked to enter the following items. Cylinder: Number of cylinders Head:... - Page 30 BIOS Halt On detected during power up. All errors (default) Whenever the BIOS detects a non-fatal error, the system will stop and you will be prompted. No errors The system boot will not be halted for any error that may be detected. All, But Keyboard The system boot will not be halted for a keyboard error;...
-
Page 31: Advanced Bios Features
BIOS 3.4 Advanced BIOS Features Quick Power On Self Test the system is turned on. If it is set to Enabled, BIOS will skip some items. Setting: Enabled (Default), Disabled. First/ Second Boot Device operating system. The options available include Setting: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN and Disabled. -
Page 32: Boot Up Numlock Status
BIOS Boot Up NumLock Status It allows you to activate the NumLock function after you power up the system. Setting: On (Default), Off. Security Option It allows you to limit access to the System and Setup. When you select System, the system prompts for the User Password every time you boot up. -
Page 33: Advanced Chipset Features
BIOS 3.5 Advanced Chipset Features CAS Latency Time It allows CAS latency time in HCLKs as 2 or 2.5. The system board designer installed DRAM or CPU. Setting: 2.5 (Default), 2. Interleave Select It allows you to Use the Interleave Select option to specify how the cache memory is interleaved. -
Page 34: Video Memory Size
BIOS XOR MB0 Setting: Disabled (Default), Enabled. XOR Bit Select Setting: 18 (Default), 19, 20, 21. Video Memory Size In order to determine how much memory is allocated to the video graphics device. Setting: None, 8M (Default), 16M, 32M, 64M, 128M, 254M. Output display In order to specify the display devices the system is connected to. -
Page 35: Integrated Peripherals
BIOS 3.6 Integrated Peripherals OnChip IDE Devicev >>> On-Chip IDE Channel 1 The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. Setting: Disabled, Enabled (Default). - 32 -... -
Page 36: Ide Dma Transfer Access
BIOS IDE Primary Master/Slave PIO It allows your system HDD controller to run faster. Rather than having the BIOS issue with a series of commands that transferring to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly. When Auto is selected, the BIOS will select the best available mode. -
Page 37: Onboard Fdc Controller
SuperIO Device >>> Onboard FDC Controller Select “Enabled” if you wish to use it. Select “Disabled” if you don’t wish to use it. Setting: Disabled, Enabled (Default). Serial/ Onboard Parallel Port It allows you to select the onboard serial and parallel ports with their addresses. -
Page 38: Parallel Port Mode
BIOS UR2 Duplex Mode Setting: Full, Half (Default). Use IR Pins Setting: RxD2,TxD2 , IR-Rx2Tx2 (Default). Parallel Port Mode Setting: SPP (Default) ECP+EPP Normal EPP Mode Select Setting: EPP1.9, EPP1.7 (Default) ECP Mode Use DMA Setting: 1, 3 (Default). - 35 -... -
Page 39: It8888 Isa Decode Io
BIOS IT8888 ISA Decode IO >>> It allows you to use the IT8888 ISA Decode IO menu to set the IO memory range for the onboard ISA. Decode I/O Space 0/ 1/ 2/ 3/ 4/ 5 It allows you to allocate system resources to the ISA bridge and to enable the function correctly. -
Page 40: It8888 Isa Decode Memory
BIOS Decode I/O Address 0/ 1/ 2/ 3/ 4/ 5 [15:4] It allows you to allocate an address to the ISA bus. The address may range from 0001 to 0FFF. Decode I/O Size 0/ 1/ 2/ 3/ 4/ 5 It allows you to specify the size of the ISA bus. Setting: 1 Byte, 2 Bytes, 4 Bytes, 8 Bytes, 16 Bytes, 32 Bytes, 64 Bytes, 128 Bytes. -
Page 41: Onboard Lan Boot Rom
BIOS Decode Memory Speed 0/ 1/ 2/ 3 It allows you to specify the memory speed of the ISA bus. Setting: Subtractive Speed, Slow Speed, Medium Speed, Fast Speed. Decode Memory Addr. 0/ 1/ 2/ 3 [23: It allows you to allocate a memory address to the ISA bus. The address may range from 0001 to 0FFF. -
Page 42: Resources Controlled By
BIOS PNP OS Installed It allows you to enable the PNP OS Install option if it is supported by the OS installed. Setting: No (Default), Yes. Setting: Disabled (Default), Enabled. Resources Controlled By use of a PnP operating system. Setting: Auto(ESCD) (Default), Manual. - 39 -... -
Page 43: Irq Resources
BIOS IRQ Resources Memory Resources PCI/VGA Palette Snoop Some non-standard VGA display cards may not show colors properly. It allows you to set whether or not MPEG ISA/VESA VGA cards can display with PCI/VGA. When “Enabled”, a PCI/VGA can display with an MPEG ISA/VESA VGA card. -
Page 44: Pc Health Status
BIOS 3.8 PC Health Status Current CPU Temperature CPU/ MEM VCore VCC3/ +5V/ +12V/ VBAT(V)/ 5VSB - 41 -... -
Page 45: Load Optimized Defaults
BIOS 3.9 Load Optimized Defaults default setting is optimal and enabled all high performance features. - 42 -... -
Page 46: Set Password
BIOS 3.10 Set Password Using Password to set a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, your password by asking you to type it again. -
Page 47: Save & Exit Setup
BIOS 3.11 Save & Exit Setup Typing “Y”, you will quit the setup utility and save all the changes into the CMOS memory. Typing “N”, you will return to Setup utility. - 44 -... -
Page 48: Exit Without Saving
BIOS 3.12 Exit Without Saving Typing “N” will return you to Setup utility. - 45 -... -
Page 49: Bios Beep Sound Code List
3.13 BIOS Beep Sound code list Beep Sound Message 1 short (Beep) System booting is normally 2 short (Beep) CMOS setting error 1 long - 1 short (Beep) DRAM error 1 long - 2 short (Beep) Display card or monitor connected error 1 long - 3 short (Beep) Keyboard error 1 long - 9 short (Beep) -
Page 50: Award Bios Post Codes
BIOS 3.15 Award BIOS POST Codes CFh Test CMOS read/write functionality Early chipset initialization: Disable shadow RAM, L2 cache (socket 7 and below), program basic chipset registers Detect memory: Auto detection of DRAM size, type and ECC, auto detection of L2 cache (socket 7 and below) C3h Expand compressed BIOS code to DRAM C5h Call chipset hook to copy BIOS back to E000 &... - Page 51 Reserved HPM initialization (notebook platform) Reserved Check validity of RTC value; Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead; Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD's legacy information;...
- Page 52 BIOS Initialize EISA slot Reserved Calculate total memory by testing the last double last word of each 64K page; Program writes allocation for AMD K5 CPU Reserved Reserved 4Ch Reserved 4Dh Reserved Program MTRR of M1 CPU; initialize L2 cache for P6 class CPU & program cacheable range;...
- Page 53 Reserved Reserved Reserved and ALT+F2 is pressed Reserved Detect and install all IDE devices: HDD, LS120, ZIP, CDROM... Reserved Detect serial ports and parallel ports Reserved Reserved Detect and install coprocessor Reserved 7Ch Reserved 7Dh Reserved Reserved Switch back to text mode if full screen logo is supported: if errors occur, report errors &...
-
Page 54: Chapter 4 - Appendix
Appendix Chapter 4 Appendix Chapter 4 - Appendix - 51 -... -
Page 55: I/O Port Address Map
4.1 I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device Description 00000022 - 0000003F PCI bus 00000044 - 00000047 PCI bus... -
Page 56: Interrupt Request Lines (Irq)
Appendix 000003F8 - 000003FF Communications Port 00000778 - 0000077B Printer Port 00000A79 - 00000A79 ISAPNP Read Data Port 00000D00 - 0000FFFF PCI Bus 0000FC00 - 0000FCFF Realtek RTL8139/810x family Fast Ethernet NIC 0000FF00 - 0000FF0F Standard Dual Channel PCI IDE Controller 4.2 Interrupt Request Lines (IRQ) Peripheral devices use interrupt request lines to notify CPU for the service required. -
Page 57: Memory Address Map
4.4 Memory Address Map Address Device Description EE000000 - EEFFFFFF Standard Floppy Disk Controller EFFE8000 - EFFEBFFF AMD Win 2K/XP Graphics Driver EFFEC000 - EFFEFFFF AMD Win 2K/XP Graphics Driver EFFF0000 - EFFF3FFF AMD Win 2K/XP Graphics Driver EFFF4000 - EFFF7FFF Geode LX AES Crypto Driver EFFF8000 - EFFFBFFF AMD Win 2K/XP Graphics Driver...
