One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Self-contained board, including synthesizer, 100 MHz
reference, USB interface, and voltage regulators
Accompanying software allows control of synthesizer
functions from a PC (via USB interface)
Externally powered by 5.5 V and 15 V supplies
EVALUATION KIT CONTENTS
EV-ADF4159EB1Z, EV-ADF4159EB2Z, or EV-ADF4159EB3Z
evaluation board
CD with evaluation software
USB cable
REQUIRED ADDITIONAL EQUIPMENT
VCO (for EV-ADF4159EB2Z and EV-ADF4159EB3Z)
Loop filter components (for EV-ADF4159EB2Z and
EV-ADF4159EB3Z)
Soldering equipment
Spectrum analyzer
Power supplies (5.5 V and 15 V)
Windows®-based PC with USB port for evaluation software
REQUIRED DOCUMENTS
ADF4159
data sheet
UG-383
user guide
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADF4159
Frequency Synthesizer for Phase-Locked Loops

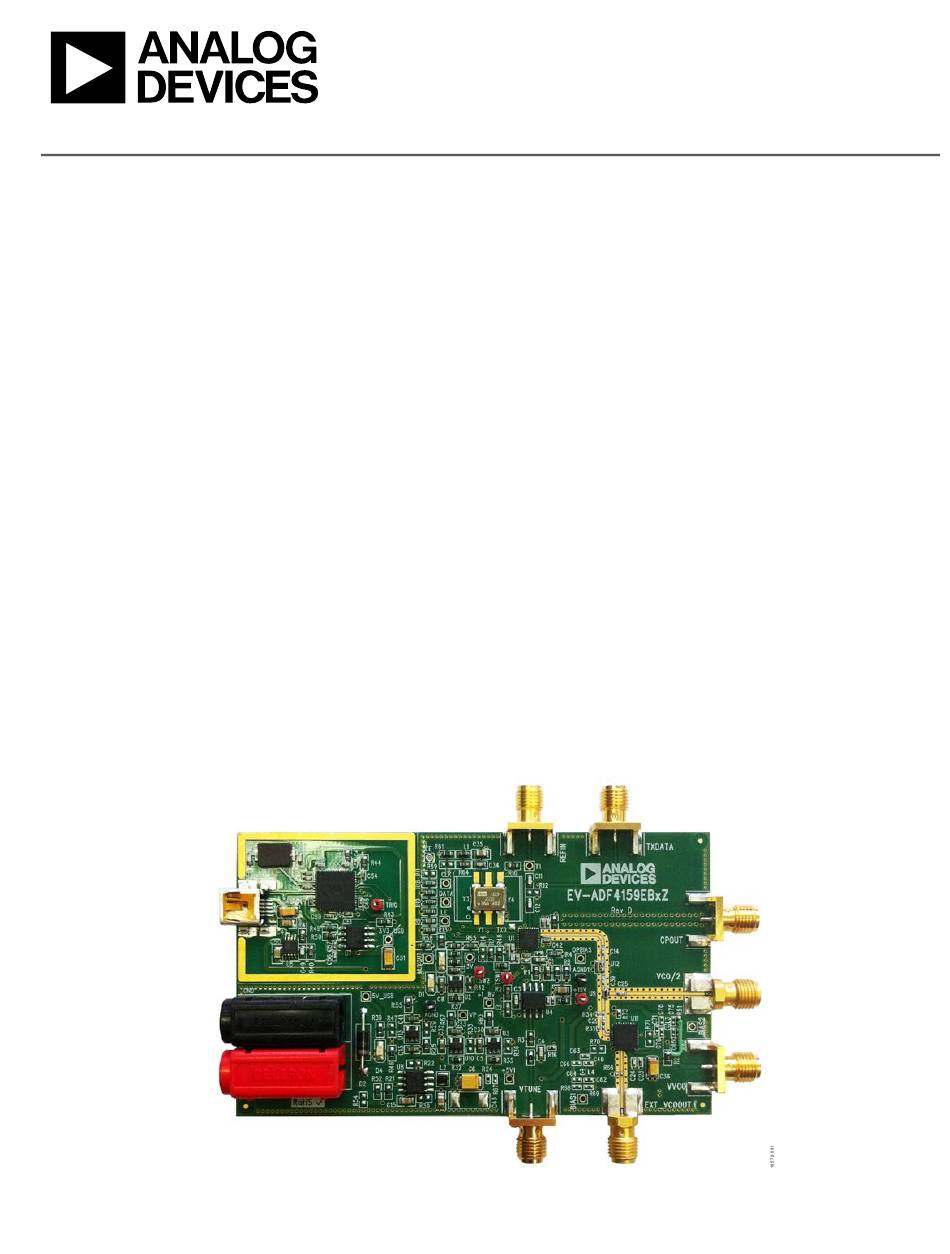

EVALUATION BOARD PHOTOGRAPH
Rev. 0 | Page 1 of 16
Evaluation Board User Guide
REQUIRED SOFTWARE
Analog Devices ADF4158-9 evaluation software, Version 4.x
or higher (included on the CD in the evaluation board kit or
available for download at www.analog.com)
GENERAL DESCRIPTION
The EV-ADF4159EB1Z/EV-ADF4159EB2Z/EV-ADF4159EB3Z
evaluates the performance of the
for phase-locked loops (PLL). A photograph of the evaluation
board is shown in Figure 1. The evaluation board involves the
ADF4159
synthesizer, a USB connector, SMA connectors, a
reference oscillator, and power supply connectors. There are also
footprints for active filter components and a voltage controlled
oscillator (VCO); if used, these components must be soldered to
the board to complete the loop. An on-board temperature compen-
sated crystal oscillator (TCXO) provides the 100 MHz reference
frequency, and a USB cable is included to connect the board to
a PC USB port.
In addition, the evaluation kit contains Windows-based software
to allow easy programming of the synthesizer.
Figure 1.
UG-383
ADF4159
frequency synthesizer
Advertisement
Related Manuals for Analog Devices EV-ADF4159EB2Z
Summary of Contents for Analog Devices EV-ADF4159EB2Z
- Page 1 FEATURES REQUIRED SOFTWARE Self-contained board, including synthesizer, 100 MHz Analog Devices ADF4158-9 evaluation software, Version 4.x reference, USB interface, and voltage regulators or higher (included on the CD in the evaluation board kit or Accompanying software allows control of synthesizer available for download at www.analog.com)
- Page 2 Loop Filter ..................4 Required Additional Equipment ............ 1 VCO Configuration ................5 Required Documents ............... 1 EV-ADF4159EB1Z ................5 Required Software ................1 EV-ADF4159EB2Z ................5 General Description ................. 1 EV-ADF4159EB3Z ................5 Evaluation Board Photograph ............1 Evaluation Setup ................6 Revision History ................2 Getting Started ...................7...
- Page 3 Connect the The VCO configuration is different for each evaluation red connector to a 5.5 V power supply and the black connector board model: EV-ADF4159EB1Z, EV-ADF4159EB2Z, and to ground. EV-ADF4159EB3Z. See the VCO Configuration section for The op amp is powered by a 15 V power supply.
- Page 4 UG-383 Evaluation Board User Guide LOOP FILTER Sample Loop Filter Use the parameters of the sample loop filter described in this The loop filter schematic is included in Figure 13. The general section as a guide for adding a loop filter onto the evaluation placement of loop filter components is shown in Figure 3.
- Page 5 DNP is do not populate. Terminate the VCO/2 SMA with 50 Ω.. EV-ADF4159EB2Z The EV-ADF4159EB2Z evaluation board does not have a VCO installed. The board is configured for a standard 32-lead LFCSP footprint for a microwave VCO. The RFOUT signal is connected to the EXT_VCOOUT SMA.
- Page 6 UG-383 Evaluation Board User Guide EVALUATION SETUP REFERENCE CRYSTAL TO PC ADF4159 50Ω TERMINATION OP AMP 5.5V TO SPECTRUM ANALYZER Figure 4. Evaluation Setup Block Diagram Figure 5. Evaluation Setup Rev. 0 | Page 6 of 16...
- Page 7 Evaluation Board User Guide UG-383 GETTING STARTED Click the Main Controls tab to view the main controls (see INSTALLING THE SOFTWARE Figure 7). The default values are set to lock a VCO at 12 GHz. For the software installation procedure, see the UG-476 user Click Write All Registers (7, 6, 6, 5, 5, 4, 4, 3, 2, 1, 0) or...
- Page 8 UG-383 Evaluation Board User Guide USING THE SOFTWARE—MAIN CONTROLS Phase Detector Polarity to negative when using an inverting active loop filter configuration (as is on this evaluation board). Use the Main Controls tab to select the RL and PLL settings. The Muxout drop-down box allows you to choose the signal Because the evaluation board is set up to feedback the VCO/2 that is connected to the output of the MUXOUT pin.
- Page 9 Evaluation Board User Guide UG-383 USING THE SOFTWARE—RAMP AND SHIFT-KEY CONTROLS In the Ramps and Shift-keying tab, you can configure the ramping and shift-keying functionality of the ADF4159. The ramp type can be selected in the Ramp mode drop-down box, and the various ramp parameters can be set in CLK1 and Up Ramp boxes.
- Page 10 UG-383 Evaluation Board User Guide EVALUATION BOARD SCHEMATICS Figure 10. Evaluation Board Schematic (Page 1) Rev. 0 | Page 10 of 16...
- Page 11 Evaluation Board User Guide UG-383 Figure 11. Evaluation Board Schematic (Page 2) Rev. 0 | Page 11 of 16...
- Page 12 UG-383 Evaluation Board User Guide Figure 12. Evaluation Board Schematic (Page 3) Rev. 0 | Page 12 of 16...
- Page 13 Evaluation Board User Guide UG-383 Figure 13. Evaluation Board Schematic (Page 4) Rev. 0 | Page 13 of 16...
- Page 14 UG-383 Evaluation Board User Guide NOTES Rev. 0 | Page 14 of 16...
- Page 15 Evaluation Board User Guide UG-383 NOTES Rev. 0 | Page 15 of 16...
- Page 16 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
