Cumberland Super Saver XLTM Owner's Manual

Agricultural building heater 120v, 60 hz, etl
Hide thumbs

Advertisement

Quick Links

Download this manual
TM
Super Saver XL
Heater
Agricultural Building Heater 120V, 60 Hz, ETL
Owner's Manual
4801-1015
Version: 7.0
Date: 04-26-22
4801-1015

Advertisement

loading
Need help?

Need help?

Do you have a question about the Super Saver XLTM and is the answer not in the manual?

Questions and answers

Related Manuals for Cumberland Super Saver XLTM

Summary of Contents for Cumberland Super Saver XLTM

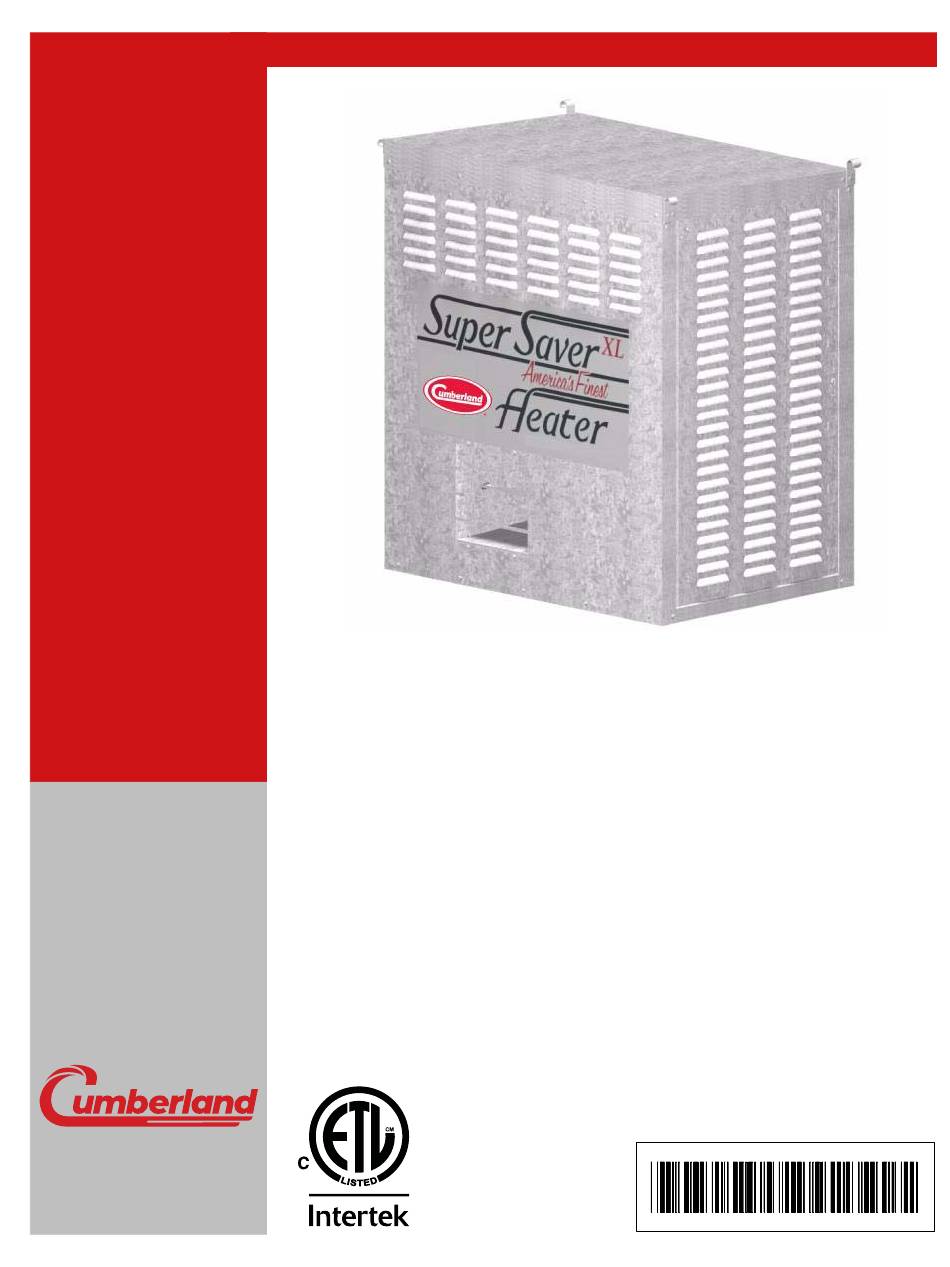

  • Page 1 Super Saver XL Heater Agricultural Building Heater 120V, 60 Hz, ETL Owner’s Manual 4801-1015 Version: 7.0 Date: 04-26-22 4801-1015...
  • Page 2 Model BTUH HH-SS-250-XL 250,000 73.3 HH-SS-225-XL 225,000 65.9 HH-SS-200-XL 200,000 58.6 HH-SS-175-XL 175,000 36.6 HH-SS-120-XL 120,000 35.2 SS-75-XL 75,000 21.9 SS-40-XL 40,000 11.7 • Hot Surface Ignition • Direct Spark Ignition • Wash-Down Design • 120 Volt (only) All information, illustrations, photos and specifications in this manual are based on the latest information available at the time of publication.
  • Page 3 Table of Contents Contents Chapter 1 Safety ..............................4 Safety Guidelines ...........................4 Cautionary Symbols Definitions ......................5 Safety Cautions ............................6 Safety Sign-Off Sheet ..........................11 Chapter 2 General Information ...........................12 Heater Dimensions ..........................12 Tools Required .............................13 Minimum Clearances ...........................13 Specifications and Requirements ......................13 Chapter 3 Installation ............................14 Hanging the Heater ..........................14...
  • Page 4 1. Safety Safety Guidelines Safety guidelines are general-to-specific safety rules that must be followed at all times. This manual is written to help you understand safe operating procedures and problems that can be encountered by the operator and other personnel when using this equipment. Read and save these instructions. As owner or operator, you are responsible for understanding the requirements, hazards, and precautions that exist and to inform others as required.
  • Page 5 1. Safety Cautionary Symbols Definitions Cautionary symbols appear in this manual and on product decals. The symbols alert the user of potential safety hazards, prohibited activities and mandatory actions. To help you recognize this information, we use the symbols that are defined below. DANGER This symbol indicates an imminently hazardous situation which, if not avoided, will result in serious injury or death.
  • Page 6 1. Safety Safety Cautions Use Personal Protective Equipment • Use appropriate personal protective equipment: Respiratory Foot Protection Protection Protection Hearing Head Fall Protection Protection Protection Hand Protection • Wear clothing appropriate to the job. • Remove all jewelry. • Tie long hair up and back. ST-0004-1 Follow Safety Instructions •...
  • Page 7 Do not attempt maintenance or repairs on the heater unless you are competent to do so. Understand service procedures before doing work. • Use only genuine Cumberland/AP parts when maintaining the heater. Use of other non-genuine parts is a misuse and may lead to dangerous situations. •...
  • Page 8 1. Safety Install and Operate Electrical Equipment Properly • The electrical connections and grounding of the appliance shall be in compliance with the National Electric Code ANSI/NFPA 70 for the United States or the Canadian Electrical Code for Canada, as well as all local and state codes.
  • Page 9 1. Safety Install and Operate Gas-Fired Equipment Properly • Gas-fired equipment should be installed by a qualified pipe fitter and must conform with local codes. • For Canada: The equipment shall be installed in accordance with the Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA B149.2, or applicable provincial regulations, which should be carefully followed in all cases.
  • Page 10 1. Safety Improper Use Warning • The intended use of this appliance is the heating of agricultural animal confinement buildings. • Not for home or recreational vehicle use. Installation of this heater in a home or recreational vehicle may result in a fire or explosion, property damage, personal injury or loss of life.
  • Page 11 1. Safety Safety Sign-Off Sheet Below is a sign-off sheet that can be used to verify that all personnel have read and understood the safety instructions. This sign-off sheet is provided for your convenience and personal record keeping. Date Employee Name Supervisor Name ST-0007 4801-1015 Super Saver XL...
  • Page 12 2. General Information 1. Installation must conform with local, state, and national codes, or in the absence of local codes, with the Standard for the Storage and Handling of CAUTION Liquefied Petroleum Gases, in accordance with ANSI/NFPA 58 and/or the National Fuel Gas Code, ANSI Z223.1, as applicable.
  • Page 13 2. General Information Tools Required 1. Adjustable Wrench 2. Pipe Glue 3. Gas Leak Testing Solution 4. 1/4" (7 mm) Nut Driver NOTE: Install screw hooks with hammer or drill. Be Sure to Check Delivery Locate packing slip and make sure all of the listed parts are enclosed. If not, call your Distributor immediately.
  • Page 14 3. Installation Hanging the Heater Chain Suspension Mount the heater with chain hooks and chains so that the back of the heater is at least 12" (305 mm) from the ceiling and wall. The heater must be a minimum of 20" (500 mm) from floor, and located so that livestock and combustible materials are unable to come in contact with heater or within 10' (3 meters) of the hot air discharge.
  • Page 15 3. Installation Outside Mount (Optional) Heaters are available with Outside Mount (OSM) kits. These heaters are designed to be mounted to the outside wall of a building. This saves valuable space inside the building and ensures fresh air intake for the heater.
  • Page 16 3. Installation 9. Place heater on the support bracket. Support bracket must be level before heater is set in place. 10. Slide thru-wall extension duct assembly (6) into flange, and secure with sheet metal screws. 11. Place outer flashing seal (13) around thru-wall extension duct (6) and secure with sheet metal screws to the inside of the wall.
  • Page 17 3. Installation 13. If not already bent, bend the sides of two door covers (3) 90° by hand (15) in the direction of the existing top and bottom bends (14). (See Figure 3G.) Ref # Description Door Cover Existing Bend Direction Hand Bend 90°...
  • Page 18 4. User Instructions Before turning ON gas, check main supply valve to be sure it is open. Be sure to check (See Figure 4A.) all connections for leaks with a Gas Leak Testing solution, (soap and water work well). Check to see if gas valve knob is in the ON position.
  • Page 19 This appliance rating is based on the use of ANSI LC-2 test gases including LP (2500 BTU/ft 93.15 MJ/m ) and natural gas (1075 BTU/ft , 40 MJ/m ). Cumberland makes no guarantees regarding the proper operation of this appliance when these conditions are not met. 4801-1015 Super Saver XL Heater...
  • Page 20 6. Wiring Diagrams - HSI Model Component and Wiring Diagram 4801-1015 Super Saver XL Heater...
  • Page 21 6. Wiring Diagrams - HSI Model Ladder Type Schematic Diagram 4801-1015 Super Saver XL Heater...
  • Page 22 7. Servicing Instructions: HSI Model United Technologies Hot Surface Ignition System IMPORTANT: Inspect and check operation of this appliance monthly. Follow the instructions below. If a problem is detected, contact a qualified technician to make any necessary repairs. In an effort to minimize the time required to troubleshoot this system: 1.
  • Page 23 7. Servicing Instructions: HSI Model 1018 Series Hot Surface Ignition Status Indicator Error Conditions The status indicator LED will not be lit with power applied to the board and the control operating properly. However, if the control is not operating properly, the status indicator LED will flash in one of the following error codes.
  • Page 24 7. Servicing Instructions: HSI Model First Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 25 7. Servicing Instructions: HSI Model Second Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 26 7. Servicing Instructions: HSI Model Third Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 27 8. Wiring Diagrams - DSI Model Component and Wiring Diagram 4801-1015 Super Saver XL Heater...
  • Page 28 8. Wiring Diagrams - DSI Model Ladder Type Schematic Diagram 4801-1015 Super Saver XL Heater...
  • Page 29 9. Servicing Instructions: DSI Model United Technologies Direct Spark Ignition System IMPORTANT: Inspect and check operation of this appliance monthly. Follow the instructions given below. If a problem is detected, contact a qualified technician to make any necessary repairs. In an effort to minimize the time required to troubleshoot this system: 1.
  • Page 30 9. Servicing Instructions: DSI Model 1016 Direct Spark Ignition Status Indicator Error Conditions The status indicator LED will not be lit with power applied to the board and the control operating properly. However, if the control is not operating properly, the status indicator LED will flash in one of the following error codes.
  • Page 31 9. Servicing Instructions: DSI Model First Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 32 9. Servicing Instructions: DSI Model Second Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 33 9. Servicing Instructions: DSI Model Third Visual Check Chart 4801-1015 Super Saver XL Heater...
  • Page 34 10. Pipe Sizing Guidelines Calculating HVR and ELOP 1. Using a system schematic, label each piping section of the system starting at the meter or regulator. A different pipe section starts where the gas demand of the system changes, usually at a junction. 2.
  • Page 35 10. Pipe Sizing Guidelines Ref # Description Heaters Tees Gate valve Gas Meter Figure 10A Arbitrary Piping System 5. Follow the row leftward until you reach the columns labeled “Internal Diameter” and “Nominal Pipe Size”. Read the pipe size for the particular pipe section. Example: For pipe section c-e, the pipe size is 3/4"...
  • Page 36 10. Pipe Sizing Guidelines IMPORTANT: Tables 2 and 3 given below are based on values given in the Gas Engineers Handbook and are intended as a guide only. Consult your gas supplier for gas capacity and pipe size information for your particular piping system. Table 2 Maximum Capacity of Pipe in Thousands of BTU Per Hour Natural Gas (Methane) @ Pressure Drop of 0.5 in W.C.
  • Page 37 11. Parts List 1. 120K-225K BTU (HSI and DSI) - (See Pages 38-41.) 2. 40K and 75K BTU (HSI and DSI) - (See Pages 42-45.) 3. 250K BTU (HSI and DSI) - (See Pages 46-49.) NOTE: Contact dealer for replacement parts. When ordering service parts, please specify the country, model number, date of manufacture, voltage, frequency, gas type, inside or outside mount, and whether the heater is constructed of galvanized or stainless steel.
  • Page 38 11. Parts List 120K-225K BTU (HSI and DSI) NOTE: The parts pointed out on this page are listed on Page Figure 11A Models SS-225-XXL, SS-200-XL, SS-175-XL and SS-120-XL 4801-1015 Super Saver XL Heater...
  • Page 39 11. Parts List 120K-225K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11B SS-225-XXL, SS-200-XL, SS-175-XL and SS-120-XL 4801-1015 Super Saver XL Heater...
  • Page 40 11. Parts List 120K-225K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11C Models SS-225-XXL, SS-200-XL, SS-175-XL and SS-120-XL 4801-1015 Super Saver XL Heater...
  • Page 41 11. Parts List 120K-225K BTU (HSI and DSI) Parts List Ref # Part # Description Ref # Part # Description 1903-3800 Harness Control 120V-K - HSI 1004-1422 Screw, Cap 3/8"-16 x 3/4" 1903-3802 Harness Control 120V-K - DSI 1021-1495 Pipe, 1/2" to 1/4" Reducer Fitting TSTAT TDISC 60T15 320D 3004-0100 Gas Valve - LP...
  • Page 42 11. Parts List 40K and 75K BTU (HSI and DSI) NOTE: The parts pointed out on this page are listed on Page Figure 11D Models SS-75-XL and SS-40-XL 4801-1015 Super Saver XL Heater...
  • Page 43 11. Parts List 40K and 75K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11E Models SS-75-XL and SS-40-XL 4801-1015 Super Saver XL Heater...
  • Page 44 11. Parts List 40K and 75K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11F Models SS-75-XL and SS-40-XL 4801-1015 Super Saver XL Heater...
  • Page 45 11. Parts List 40K and 75K BTU (HSI and DSI) Parts List Ref # Part # Description Ref # Part # Description TSTAT TDISC 60T15 350D 3004-0100 Gas Valve - LP 3005-0108 Airstream - 75K 3004-0101 Gas Valve - NG TSTAT TDISC 60T15 280D 3010-2139 Fuse 10 Amp 1/4"...
  • Page 46 11. Parts List 250K BTU (HSI and DSI) NOTE: The parts pointed out on this page are listed on Page Figure 11G 4801-1015 Super Saver XL Heater...
  • Page 47 11. Parts List 250K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11H 4801-1015 Super Saver XL Heater...
  • Page 48 11. Parts List 250K BTU (HSI and DSI) (Continued) NOTE: The parts pointed out on this page are listed on Page Figure 11I 4801-1015 Super Saver XL Heater...
  • Page 49 11. Parts List 250K BTU (HSI and DSI) Parts List Ref # Part # Description Ref # Part # Description 0408-8089-HH Igniter Bracket DSI 0404-10773 Heater Hanger Bracket 3002-6010 Electrode DSI Fenwall Brooder 6401-4546 Burner Assembly LP/NG - HSI 3002-6012 Igniter, Hot Surface 120V, NG Only 6401-0158 Burner 240/120 - DSI...
  • Page 50 NOTES 4801-1015 Super Saver XL Heater...
  • Page 51 0 to 3 years - no material cost to end user ® ® Flex-Flo/Pan Feeding System Motors 2 Years and Cumberland 3 to 5 years - end user pays 25% 5 to 7 years - end user pays 50% 24 Months from date Electronic Controls...
  • Page 52 This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.cumberlandpoultry.com...
