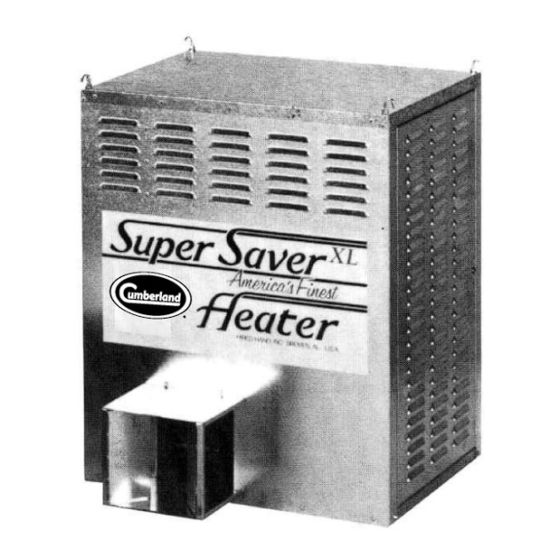

SUPER-SAVER XL
MODEL
BTUH
SS-225-XL
225,000
SS-200-XL
200,000
SS-175-XL
175,000
SS-120-XL
120,000
SS-75-XL
75,000
SS-40-XL
40,000
FOR YOUR SAFETY
If you smell gas:
1. Open windows
2. Don't touch electrical switches
3. Extinguish any open flames
4. Immediately call your gas supplier
CONSIGNES DE SECURITE
Si vous sentez une odeur de gaz:
1. Ouvrez les fenetres
2. Ne touchez pas aux interrupteurs electriques
3. Etegnex toute flamme hue
4. Contactez immediatement votre compangie
de gaz
CUMBERLAND  1004 E. Illinois St.  Assumption, IL 62510  Phone 1-217-226-4421  Fax 1-217-226-4420
Owner's Manual
Agricultural Building Heater
kW
65.9
58.6
36.6
35.2
21.9
11.7
Retain Instructions For Future Reference
Manual Part No. 4801-1006 Rev 1-15
Hot Surface Ignition
FOR YOUR SAFETY
Do not store or use gasoline or any
flammable vapors and liquids in the
vicinity of this or any other appliance.
CONSIGNES DE SECURITE
II es interdit dutiliser des liquides
inflammables ou degageant des
vapeurs inflammables, a proximite
de tout appareil fonctionnant au gaz
HEATER
TM
Wash Down Design

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPER-SAVER SS-175-XL and is the answer not in the manual?

Questions and answers

Related Manuals for Cumberland SUPER-SAVER SS-175-XL

Summary of Contents for Cumberland SUPER-SAVER SS-175-XL

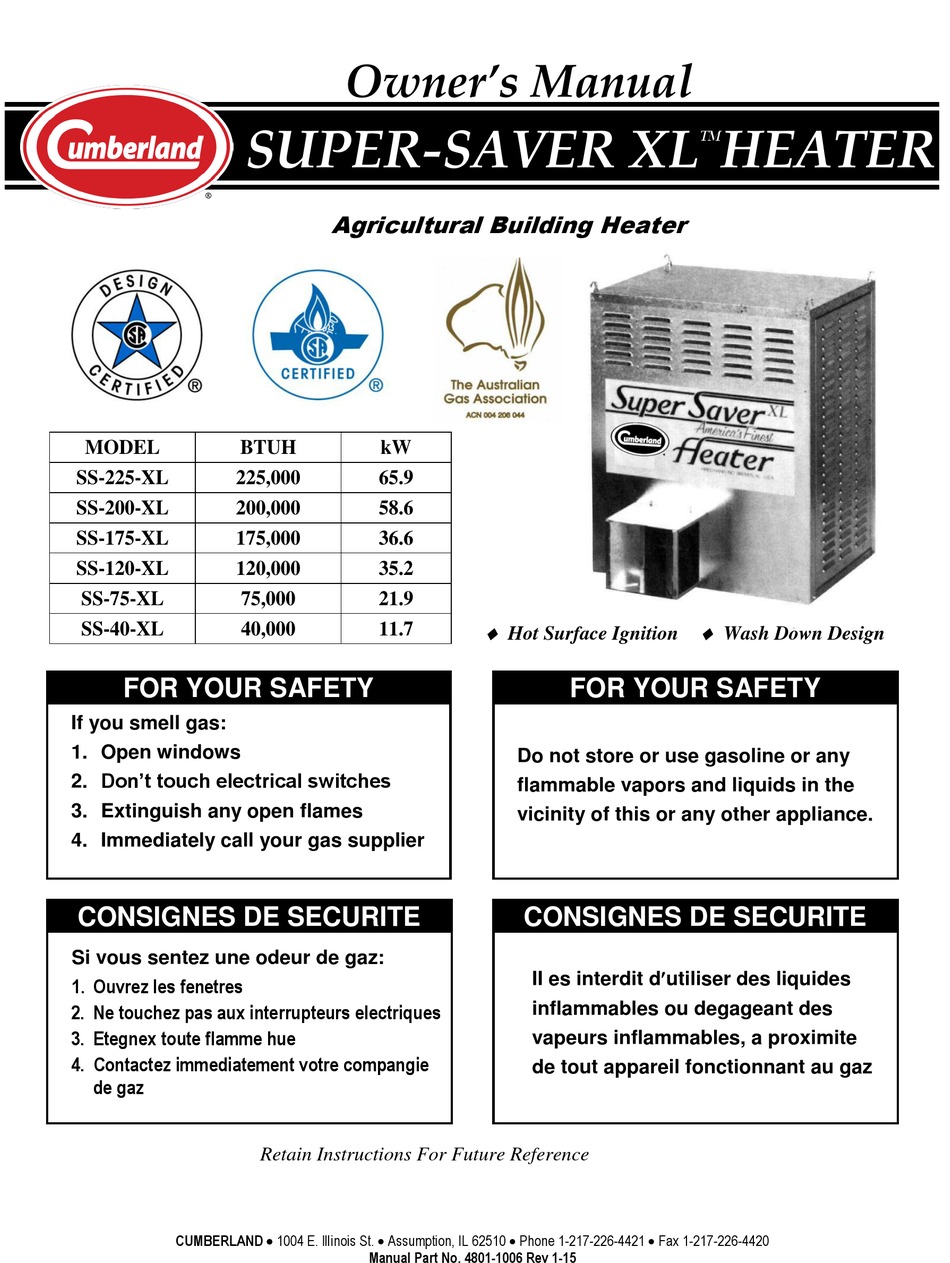

  • Page 1 4. Contactez immediatement votre compangie de tout appareil fonctionnant au gaz de gaz Retain Instructions For Future Reference CUMBERLAND  1004 E. Illinois St.  Assumption, IL 62510  Phone 1-217-226-4421  Fax 1-217-226-4420 Manual Part No. 4801-1006 Rev 1-15...
  • Page 2  GENERAL HAZARD WARNING Failure to comply with precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, carbon monoxide poisoning, and/or electrical shock. If you need assistance or heater information such as an instruction manual, labels, etc.

  • Page 3: Table Of Contents

    Component And Wiring Diagram ....10 Ladder Type Schematic Diagram ....12 not, call your Cumberland Servicing Instructions ........14 Distributor immediately. Pipe Sizing Guidelines ......... 19 Parts & Assemblies ........21 HEATER DIMENSIONS WEIGHT 130 lb.

  • Page 4: Specifications And Requirements

    Warnings And Cautions WARNING  When Heater Is Connected To Remote Thermostat Heater May Start At Any Time! ELECTRICAL GROUNDING INSTRUCTIONS This appliance is equipped with a three prong (grounding) plug for your protection against electrical shock and should be plugged directly into a properly grounded three-prong receptacle.

  • Page 5: Maintenance And Warranty

    This appliance rating is based on the use of ANSI LC-2 test gases including LP (2500 BTU/ft 93.15 MJ/m ) and natural gas (1075 BTU/ft , 40 MJ/m ). Cumberland makes no guarantees regarding the proper operation of this appliance when these conditions are not met. Page Super Saver XL Heater...
  • Page 6 5 to 7 years – end-user pays 50% Flooring All Fiberglass Housings Lifetime 7 to 10 years – end user pays 75% All Fiberglass Propellers Lifetime AP/Cumberland Flex-Flo/Pan Feeding Systems 2 Years ** Warranty prorated from list price: Feeder System Pan Assemblies 5 Years ** Cumberland 0 to 3 years –...

  • Page 7: Installation

    4. Installation 4.1 Hanging The Heater Chain Suspension Cable Suspension Mount the heater with screw hooks and chains so that the back of the heater is at least 12 inches (305 mm) If frequent height adjustment is required, use from the ceiling and wall. The heater must be a cables and pulleys.

  • Page 8: User Instructions

    User Instructions Before turning on gas, check main supply valve to be sure it is open (Fig. 3). Be sure to check all connections for leaks with a Gas Leak Testing solution, (soap and water work well). Check to see if gas valve knob is in the ON position.

  • Page 9: Outside Mount (Optional)

    Outside Mount (Optional) Cumberland heaters are available in Outside Mount (OSM) models. These heaters are designed to be mounted to the outside wall of a building. This saves valuable space inside the building and ensures fresh air intake for the heater.

  • Page 10: Component And Wiring Diagram

    Component and Wiring Diagram COMPONENT AND WIRING DIAGRAM THERMOSTAT OPTIONS INSIDE HEATER Option 2 Option 1 Low Voltage Control Piggy-Back Direct Wire Thermostat Transformer Thermostat or Controller STATUS INDICATOR ELECTRONIC MODULE INSIDE HEATER BLACK 1/2” IPON BURNER CONNECTORS 10 AMP FUSE ON/OFF SWITCH SAIL...
  • Page 11 COMPONENT AND WIRING DIAGRAM THERMOSTAT OPTIONS INSIDE HEATER Option 2 Option 1 ST ATUS INDICATOR Low Voltage Control Piggy-Back CONTROL BOX Direct Wire Thermostat Thermostat or Controller Transformers POWER SUPPLY CORD BURNER SAIL SWITCH INSIDE HEATER 240 Volts A.C. 50/60 Hz Single Phase 240 Volts A.C.

  • Page 12: Ladder Type Schematic Diagram

    Ladder Type Schematic Diagram LADDER TYPE SCHEMATIC DIAGRAM NEUTRAL LINE VOLTAGE GROUND THERMOSTAT LINE VOLTAGE ON / OFF LOW LINE 10 AMP FUSE 24 VAC-40VA, 50/60 Hz TRANSFORMER UNITED TECHNOLOGIES Hot Surface Ignition Control IGNITOR HSIG SAIL SWITCH FLAME SENSOR PROBE MAIN REDUNDANT...
  • Page 13 LADDER TYPE SCHEMATIC DIAGRAM LINE VOLTAGE NEUTRAL GROUND THERMOSTAT LINE VOLTAGE ON / OFF LOW LINE 10 AMP FUSE TRANSFORMER 24 VAC-40VA, 50/60 Hz UNITED TECHNOLOGIES Hot Surface Ignition Control TRANSFORMER 24 VAC-40VA, 50/60 Hz IGNITOR HSIG SAIL SWITCH FLAME SENSOR PROBE MAIN REDUNDANT...

  • Page 14: Servicing Instructions

    Servicing Instructions United Technologies Hot Surface Ignition System IMPORTANT! Inspect and check operation of this appliance monthly. Follow the instructions below. If a problem is detected, contact a qualified technician to make any necessary repairs. In an effort to minimize the time required to trouble shoot this system: Turn off the gas supply at the main gas valve.
  • Page 15 1018 Series Hot Surface Ignition Status Indicator Error Conditions The status indicator LED will not be lit with power applied to the board and the control operating properly. However, if the control is not operating properly, the status indicator LED will flash in one of the following error codes.
  • Page 16 Chart 1 First Visual Check Page Super Saver XL Heater Manual Part No. 4801-1006 Rev 1-15...
  • Page 17 Chart 2 Second Visual Check Page Super Saver XL Heater Manual Part No. 4801-1006 Rev 1-15...
  • Page 18 Chart 3 Third Visual Check Page Super Saver XL Heater Manual Part No. 4801-1006 Rev 1-15...

  • Page 19: Pipe Sizing Guidelines

    Determine the Equivalent Length Of Pipe (ELOP) Pipe Sizing Guidelines required for sufficient gas service. 10.1 Calculating HVR & ELOP ELOP = (length from meter to most remote heater) Using a system schematic, label each piping + (Minor loss equivalents of the system) section of the system starting at the meter or IMPORTANT: Use the ELOP value from this regulator.
  • Page 20 Table 1 Minor Loss Equivalents 2” (5.08 cm) IPS To 4” (10.16 cm) IPS Fitting 2" (5.08 cm) IPS Or Smaller Feet per fitting Meters per fitting Feet per fitting Meters per fitting 45 Elbow 90 Elbow Gate Valve Angle Valve Swing Valve Pipe Sizes Determined For Diagram Pipe Section...

  • Page 21: Parts & Assemblies

    Parts & Assemblies When ordering service parts, please specify the country, model number, date of manufacture, voltage, frequency, gas type, inside or outside mount, and whether the heater is constructed of galvanized or stainless steel. Models SS-225-XXL, SS-200-XL, SS-175-XL, SS-1290-XL 1903-3800 3005-0108 3005-2130...
  • Page 22 Models SS-225-XL, SS-200-XL, SS-175-XL, SS-120-XL OSM 0404-3000 ISM 6401-1151 OSM 6401- 4513 0404-1140 ISM 6401- 4504 0404-7036 0404-6674 1004-1406 0404-6703 6401-1308 1004-1102 1004-1102 1041-5004 1009-1500 SEE MODEL NO. 1041-1488 1004-1422 1021-1495 1021-1500 3004- 0100 LP/Propane Gas 3004- 0101 Natural Gas 1041-1491 1021-1496 Page...
  • Page 23 Models SS-225, SS-200-XL, SS-175-XL and SS-120-XL 6401-4508 1004-0107 6401-1318 1001-1452 0408-6673 1004-1130 1001-1452 0408-5017 3001-1740 1004-1388 0408-7022 1004-1410 3017-1301 120V 60 Hz 3017-5029 200/230V 60 Hz NOTE: The 240 volt control box has a two transformer assembly, 1001-2158 module and a connector block. 6401-4502 6401-2911 3008-2258...
  • Page 24 When ordering service parts, please specify the country, model number, date of manufacture, voltage, frequency, gas type, inside or outside mount, and whether the heater is constructed of galvanized or stainless steel. Model SS-75-XL and Model SS-40-XL 6401-2890 3005-0108 1007-1614 6401-2881 3005-2130 3005-0102...
  • Page 25 Models SS-75-XL and SS-40-XL 0404-2738 6401-1145 6401-2866 6401-1140 0404-2739 1004-1406 0404-2740 0408-4347 1004-7019 1001-1453 6401-1307 3002-5000 120V 3001-0111 1004-1102 1005-0100 1901-0163 1041-5004 1009-1500 SEE MODEL NO. 1041-1488 1004-1422 1021-1495 1021-1500 3004- 0100 LP/Propane Gas 3004- 0101 Natural Gas 1041-1491 1021-1496 Page Super Saver XL Heater Manual Part No.
  • Page 26 Models SS-75-XL and SS-40-XL 1004-1388 6401-2881 0408-1883 1004-2881 6401-1726 0408-1231 0408-2314 SS-40-XL Only 1004-1412 0408-1146 1004-1388 3001-1740 3017-1302 120V 60 Hz 0408-5017 1001-1452 3591-1851 3008-2257 0404-2348 1902-1137 3006-1581 3001-2862 3010-2139 1042-2693 120 Volt Heater Plate Page Super Saver XL Heater Manual Part No.
  • Page 27 Page Super Saver XL Heater Manual Part No. 4801-1006 Rev 1-15...
  • Page 28 Copyright © 2015 by The GSI Group, LLC Printed in the USA...

This manual is also suitable for:
