Ingenico Lane 3000 User Manual

Hide thumbs Also See for Lane 3000:

Download this manual

What's in the Box?

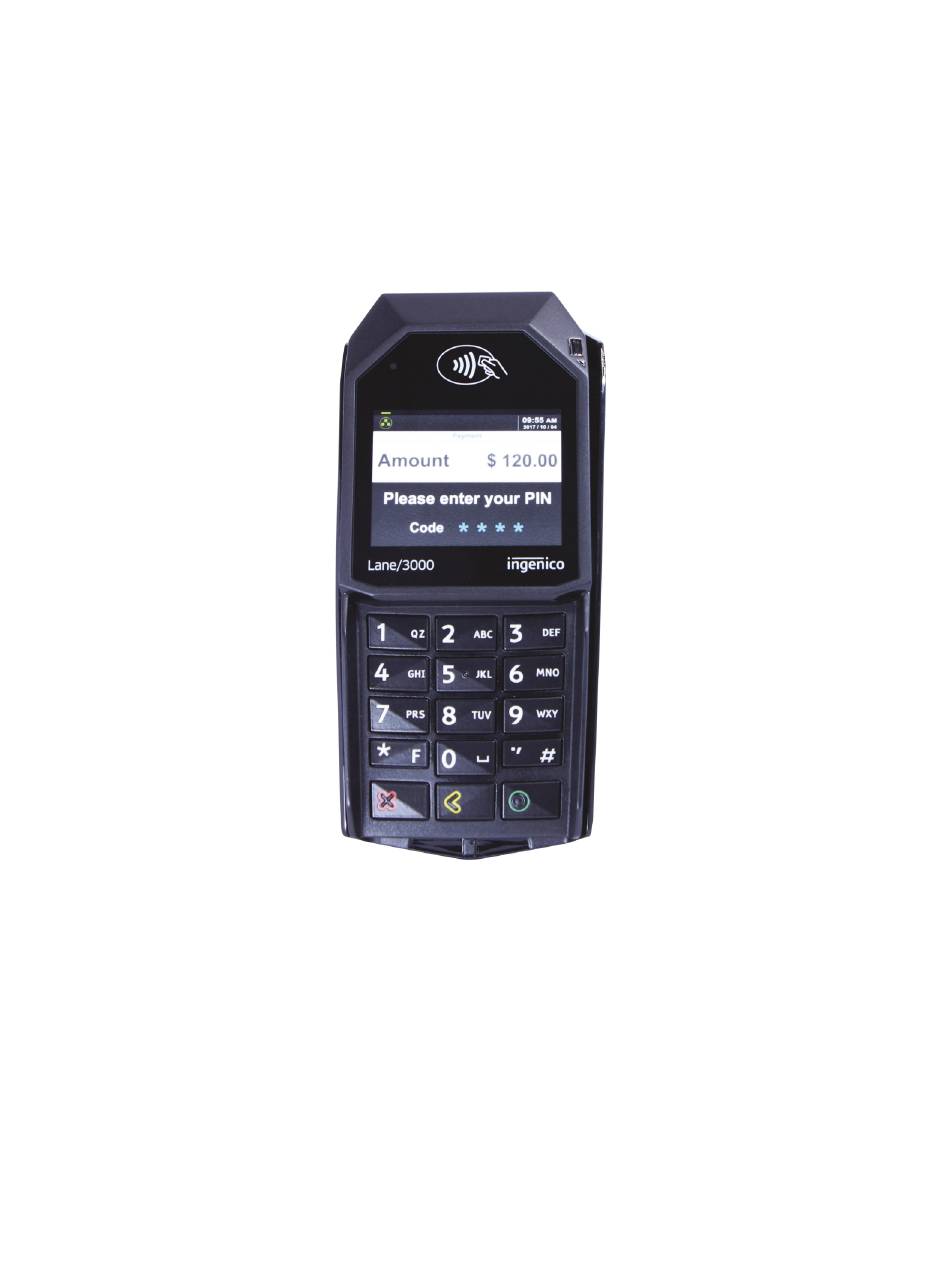

Ingenico Lane/3000 terminal

Ingenico Multipoint Interface Cable

Ingenico power supply

Setting up the Device

1. Plug the power supply connector into the jack on the Multipoint Interface Cable.

2. Connect the Multipoint Interface Cable into the Multipoint Port on the underside of the

terminal.

3. Connect the other end of the Multipoint Interface Cable to an Ethernet port (router,

modem, wall jack, etc.).

Note: This version of the Ingenico 3000 does not support Wifi connectivity

4. Plug the power supply adapter into an available power outlet.

Need help?

Do you have a question about the Lane 3000 and is the answer not in the manual?

Page 1 3. Connect the other end of the Multipoint Interface Cable to an Ethernet port (router, modem, wall jack, etc.). Note: This version of the Ingenico 3000 does not support Wifi connectivity 4. Plug the power supply adapter into an available power outlet.
Page 2 Powering on and registering the terminal 1. Once power is supplied to the terminal, the terminal will start initialization. After the terminal has successfully established its IP address, the registration process will begin. 2. The terminal will display a four digit code. Follow the steps in your software when instructed to provide a registration code.
Page 3 If you receive a message saying your device is disconnected, confirm the following: 1. Verify that you are using the provided multi-point mono connector (Ethernet) cable and power supply. The power supply plugs into the splitter on the Ingenico multi-point mono connector cable.
