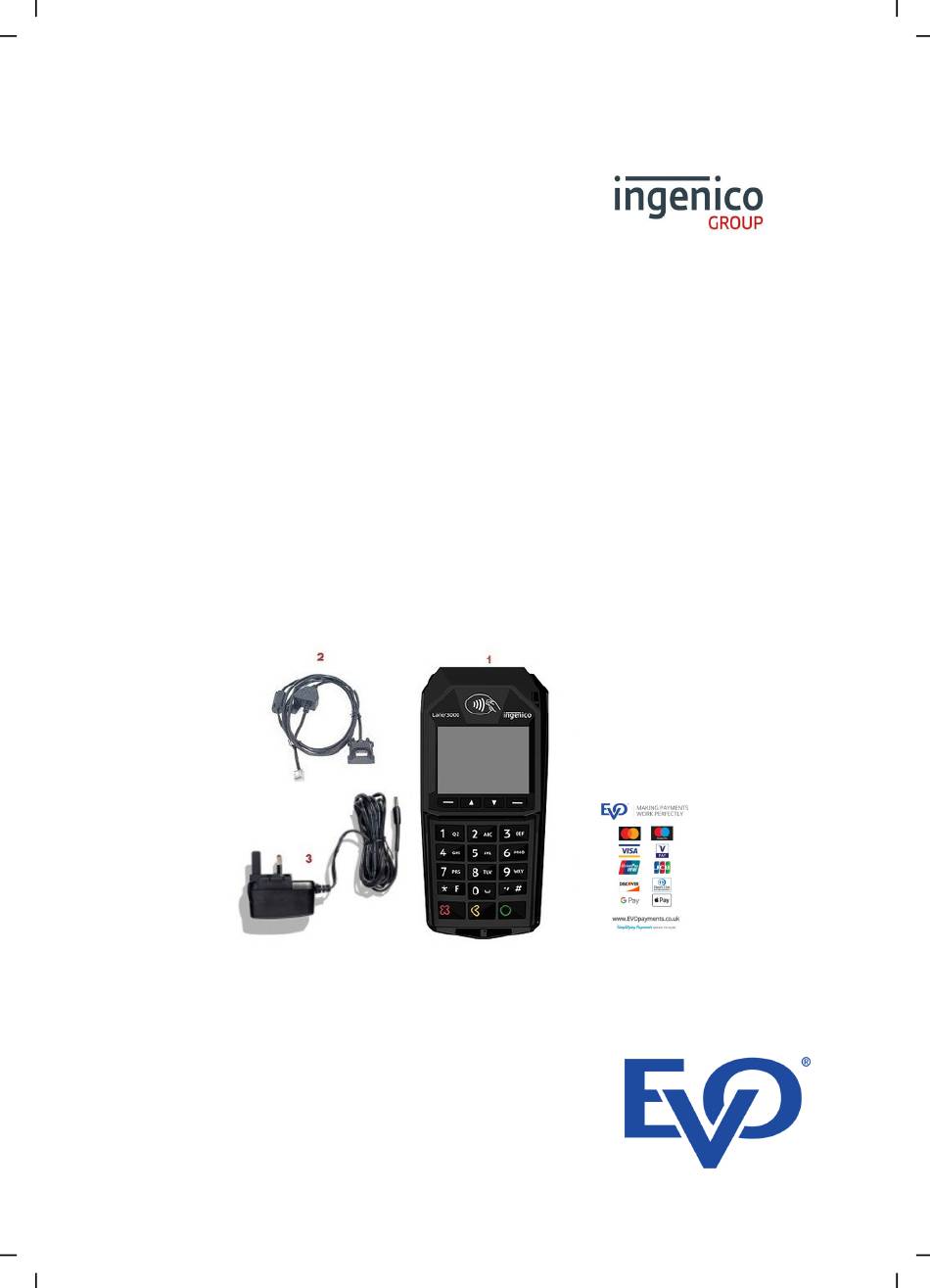

- Page 1 Quick Start Guide Lane 3000 What's in the box? 1.Card Terminal 2.Terminal Cable 3.Power Supply Unit 4.Window Decal...
- Page 2 Function keys Menu - Use this button to access the main functions menu on the terminal Cancel - Use this button to cancel and revert back to the previous screen Clear - Use this button to clear back or delete characters when keying in text/numbers Enter - Use this button to confirm selection on the terminal...
- Page 3 Getting started Connect the Terminal cable to the Lane 3000 Kiosk terminal by connecting the HDMI end to the back of the terminal as shown. Connect the Power supply to the Terminal cable, and connect to an active Ethernet port. *Note the Ethernet extension block and additional cable can be used to extend the cable if required.
- Page 4 2. The terminal will request an administrator password which is 123456 and ENTER You are now in the Admin Menu. Using the Up/Down keys, select “ETH setting”, then press ENTER Speed change appears on screen select Link Speed 100Mb/s and press ENTER Protocol Change will then appear on screen, press the RED button (cancel)
