Ingenico 2500 Link User Manual

Ingenico 2500 Link User Manual
What's in the box?
Ingenico Link 2500 device
Power supply
Setting up the Device

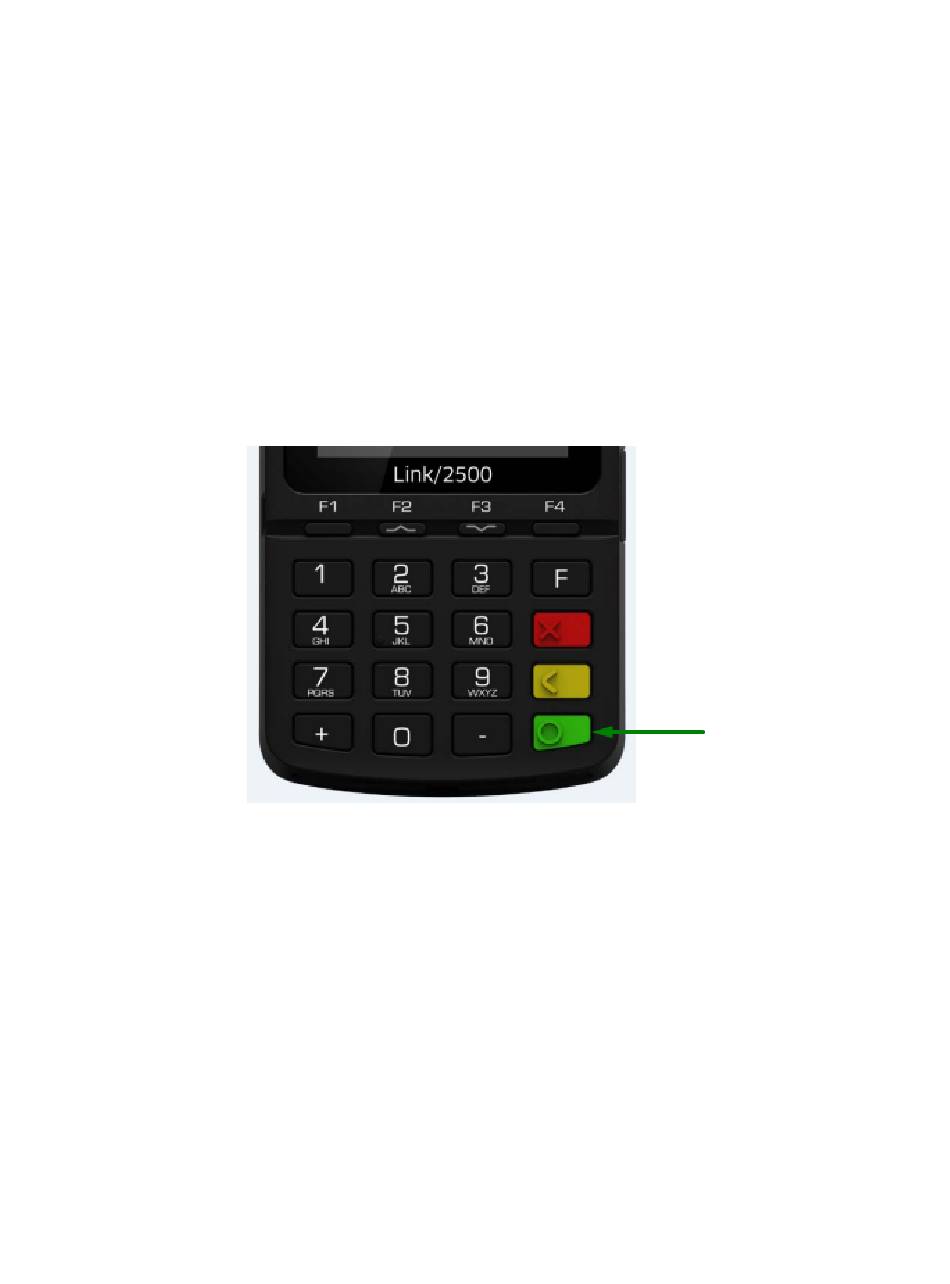

1. Power on the device by holding the Green button:
Note: If the device does not power on, ensure the device is fully charged with the
USB-C cable provided with the reader. The terminal must have at least 4 hours of
battery for initial start-up.
Connecting to Wi-Fi and Device Registration
1. Using the PIN-pad, enter 0-0-0-1 to access the Admin menu.
2. Select option 1- Communication Type. Then, select option 4- WiFi.
a. Note: Your screens will not react to this selection.
3. Navigate back to the Admin menu by using the yellow back button.
4. Next, select 2 - WiFi Parameters, then 2- Scan Networks to search for nearby networks.
5. Select your network once the scan is complete and enter your WiFi password.
6. Exit the Admin Menu by using the yellow back button or the red cancel button.
7. Once back to the home screen, you should see a registration code.
