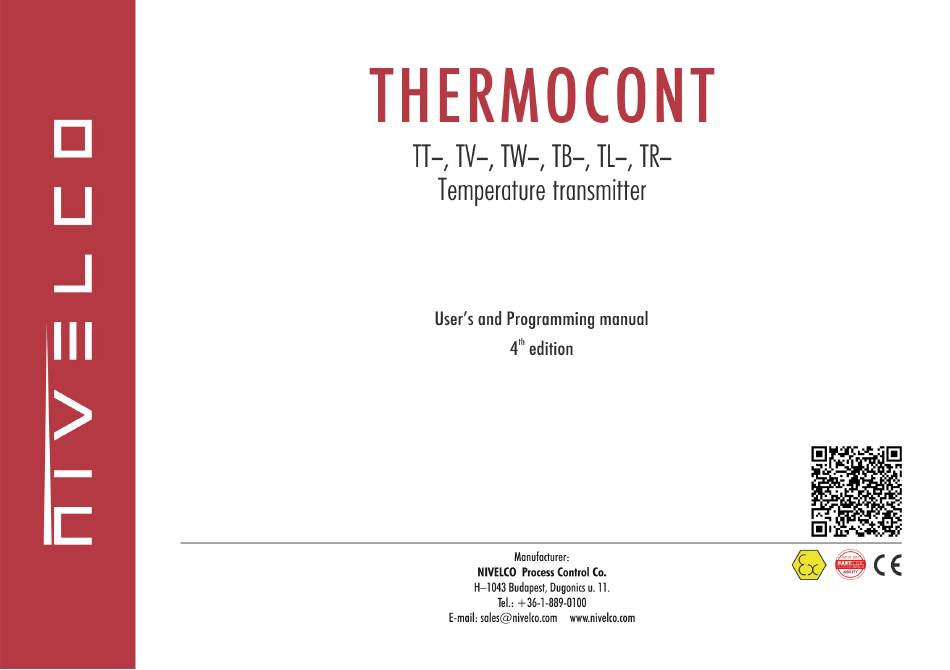

- Page 1 tbj524en25p04 ♦ 1 / 16...
- Page 2 CERTIFICATES Reference document number ATEX, Certificate No.: BKI16ATEX0015X tbj5242m0600p_02 tbj524en25p04 ♦ 2 / 16...
- Page 3 C O N T E N T S 1. INTRODUCTION ....................................5 2. ORDER CODES ....................................5 3. TECHNICAL DATA ................................... 6 3.1 G ..................................6 ENERAL 3.2 E ........................ 7 XPLOSION ROTECTION ESIGNATION IMIT ALUES 3.3 D ....................................7 IMENSIONS 3.4 A ....................................
- Page 4 tbj524en25p04 ♦ 4 / 16...
- Page 5 Thank you for purchasing a NIVELCO product. 1. INTRODUCTION THERMOCONT T–500/600 series 2-wire temperature transmitters are suitable for measuring, indicating, and transmitting the temperature of ordinary and hazardous gases, fumes, liquids, and masses. The Pt100 sensor of the unit is accommodated in a normal or plastic-coated stainless-steel tube manufactured with different intrusion length end process connections.
- Page 6 3. TECHNICAL DATA 3.1 General Data Standard version Plastic-coated version Strengthened probe version High-temperature version [TT, TB] [TR, TW] [TS, TZ] [TV, TL] –50…+200 °C (–58…+392 °F), –50…+200 °C –50…+600 °C Measuring Range TW: −40…+70 °C (–40…+158 °F) (–58…+392 °F) (–58…+1112 °F) Insertion length As per order code, up to 3000 mm (10 ft)
- Page 7 3.2 Explosion Protection, Designation, Limit Values T–5–6 Ex T–5–A Ex T–5–C Ex Type T–5–8 Ex T–5–B Ex T–5–D Ex Protection mode Intrinsically safe Flame proof casing Flame proof casing and intrinsically safe Protection mark II 1 G Ex ia IIB T6...T1 Ga II 2 G Ex d IIB T6…T1 Gb II 1/2 G Ex d ia IIB T6…T1 Ga/Gb = 30 V...
- Page 8 3.4 Accessories Installation and Programming Manual • Warranty Card, • EU Declaration of Conformity, • 2× cable glands • 4. INSTALLATION AND ELECTRIC CONNECTION Place of installation should be selected so that proper place should be available for handling. • Depending on the version, the unit is mounted with a threaded connection or a flange.
- Page 9 4.1 Wiring Transmitters are used in 2-wire systems with power supply of • 10…36 V DC. Resistance of the units in the loop depends on the voltage of the power supply. For wiring shielded cable suggested in the Technical Data should be used. •...
- Page 10 5. PUTTING INTO OPERATION, PROGRAMMING Transmitter installed and wired correctly will operate after powering according to the Manufacturer’s (Default) or to the last settings. Operability is indicated by lighting of the LED VALID. Unit with removed cover and without SAP-202 display module 5.1 Programming Adjustment of the unit to the conditions of the application will be carried out by programming parameters with the aid of the push buttons and following the procedure on the display of the SAP–202 module.
- Page 11 5.1.1 Display and keys of the SAP–202 display module Symbols on the screen – pointer (showing to the • relevant engineering unit) °C – temperature grade Celsius • – current output (lighting) • – display in percentage • PROG (blinking) – indicating programming Symbols on the frame metric system •...
- Page 12 Operation of programming keys operation Enter or exit programming mode (Return to the Measurement mode means saving modifications of parameter value) (for minimum 3 s!) GET VALUE – function for automatic setting. Actual/measured value will be accepted as value to be programmed. SET will be displayed for confirmation pressing Keys while the Parameter address blinking...
- Page 13 5.1.3 Parameters – descriptions and programming - - - a Assignment of the (lowest) measured temperature to 4 mA - - - a Assignment of the (highest) measured temperature to 20 mA The lowest and highest (limit) value of the temperature range is to be assigned to the 4 and 20 mA output current. This can be performed by two methods a: manually i.e.
- Page 14 P11: - c - - Noise suppression and displayed value Noise suppression Displayed value 50 Hz Temperature (°C or °F – see P10) 60 Hz FACTORY DEFAULT: 0 0 P12: - - - a Error indication Find explanation of errors in 5.2 Error indication 3.8 mA 22 mA...
- Page 15 (Returned Equipment Handling Form) must be filled and enclosed in the parcel. Download it from our website www.nivelco.com. The device must be sent back with a declaration of decontamination. A statement must be provided in the declaration that the decontamination process was successfully completed and that the device is clean from any hazardous substances.
- Page 16 January 2025 NIVELCO reserves the right to change anything in this manual without notice. tbj524en25p04 ♦ 16 / 16...
