Behringer VINTAGE DELAY VD400 Manual

VINTAGE DELAY VD400
Vintage Analog Delay Effects Pedal
Thank you for showing your confidence in us by purchasing the BEHRINGER VINTAGE DELAY VD400.
This ultimate effects pedal is designed to deliver amazing delay sounds comparable to state-of-the-art
studio processors. Thanks to its parameter controls, you'll have plenty of cool sounds at your disposal to
handle almost any situation.
The delay effect creates a delay of the input signal with various repetitions. Different tempo settings
allow interesting delay effects.

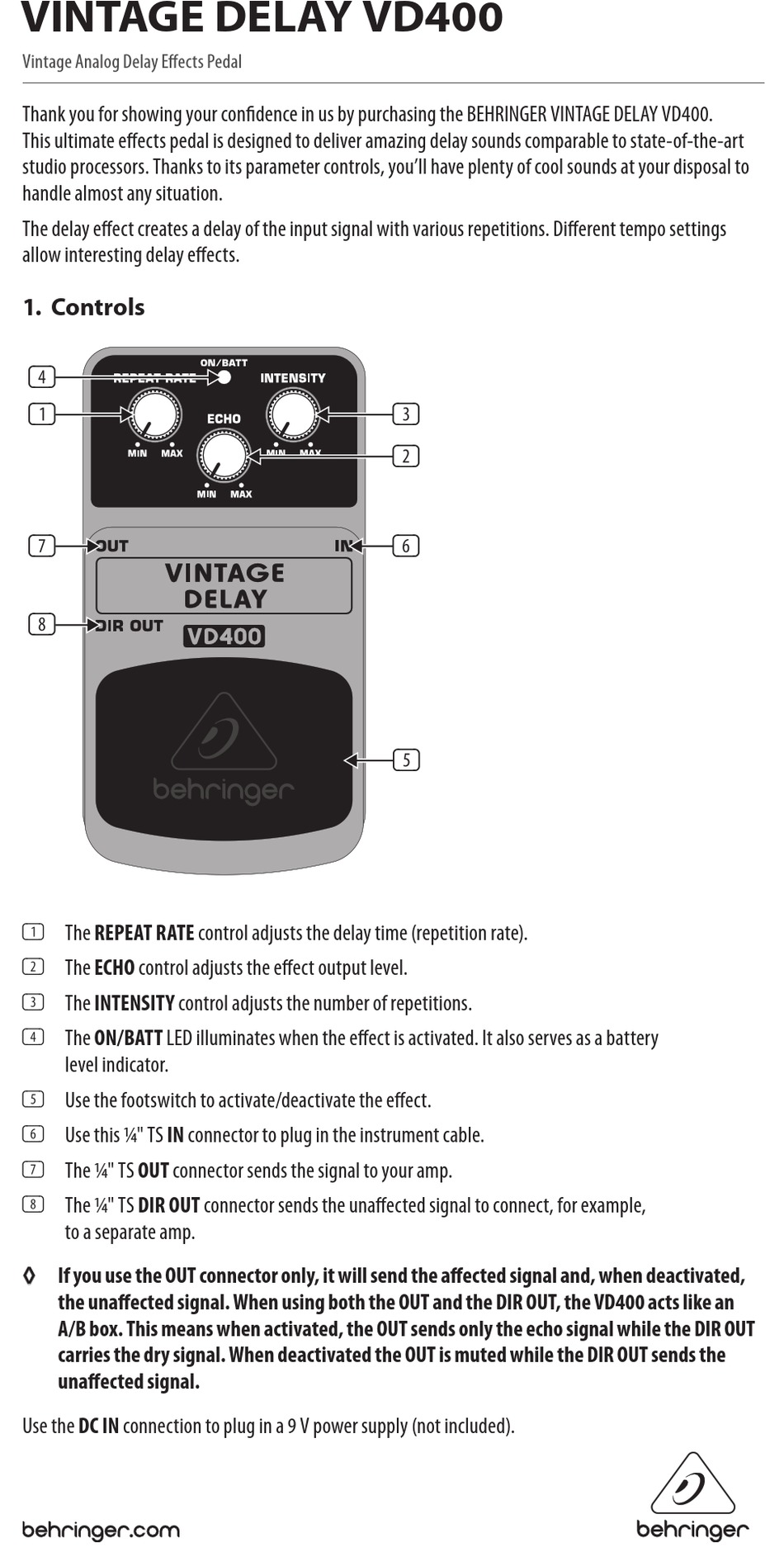

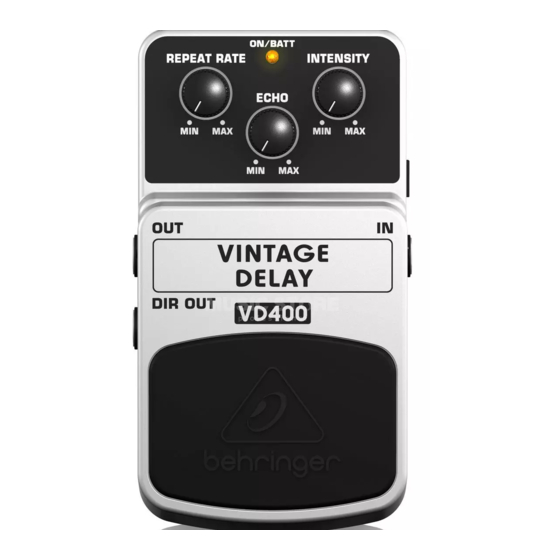

1. Controls
(4)
(1)
(7)
(8)
(1) The REPEAT RATE control adjusts the delay time (repetition rate).
(2) The ECHO control adjusts the effect output level.
(3) The INTENSITY control adjusts the number of repetitions.
(4) The ON/BATT LED illuminates when the effect is activated. It also serves as a battery
level indicator.
(5) Use the footswitch to activate/deactivate the effect.
(6) Use this 1/4" TS IN connector to plug in the instrument cable.
(7) The 1/4" TS OUT connector sends the signal to your amp.
(8) The 1/4" TS DIR OUT connector sends the unaffected signal to connect, for example,
to a separate amp.
◊
If you use the OUT connector only, it will send the affected signal and, when deactivated,
the unaffected signal. When using both the OUT and the DIR OUT, the VD400 acts like an
A/B box. This means when activated, the OUT sends only the echo signal while the DIR OUT
carries the dry signal. When deactivated the OUT is muted while the DIR OUT sends the
unaffected signal.
Use the DC IN connection to plug in a 9 V power supply (not included).
