EG071
Function
The EG071 is a programmable time switch for
the automatic control of electrical loads.
It is fully programmable with a maximum of
20 program steps. Each program step can be
applied to one or several days, maximising the
use of each memory location.
The display will flash in case of power failure
to the unit.
The front cover is sealable preventing
unauthorised access after completion of
programming.

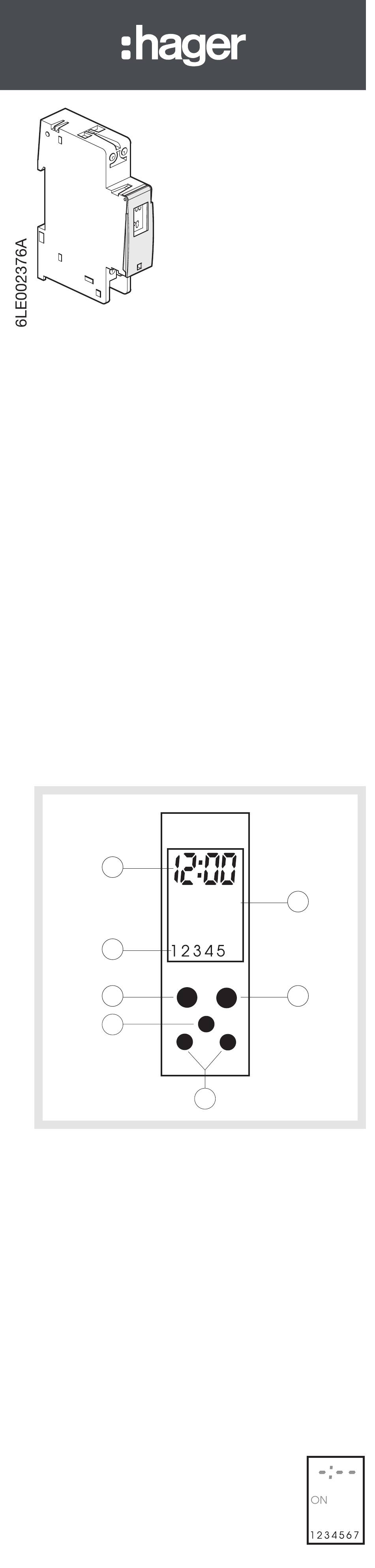

Presentation
Display :
1 time.
2 circuit status (ON or OFF)
3 Day of the week (1 = Monday, 2 = Tuesday
.. 7 = Sunday)
Buttons :
4 "on/off" chooses whether the circuit
is ON or OFF.
5 "Prog" to set the program and scroll
program steps.
6 "reset"
7 "+" and "-" : changes settings.
Time and day setting
Press key "+" or "-".
A continuous pressure on this key will scroll up
or down minutes, hours and then days.
Programming
1. To start programming, press key
"Prog", the first program step
flashes.
F
O F
1
3
on/off Prog
4
6
OFF
+
-
7
z
2
5
