Wireless
quick-start guide
In-wall dimmer
Welcome—and thank you for purchasing a Caséta
Wireless in-wall dimmer. In order to control your lights
remotely, you'll need to replace an existing switch with
a Caséta Wireless in-wall dimmer.
Before you install the dimmer, please watch the
installation video at
www.casetawireless.com.
We hope you enjoy the convenience of Caséta Wireless!
Double your warranty
Love Caséta Wireless dimmers? Have ideas
for making them better? Tell us what you think
and we'll extend your warranty by 1 year.
www.casetawireless.com/register.

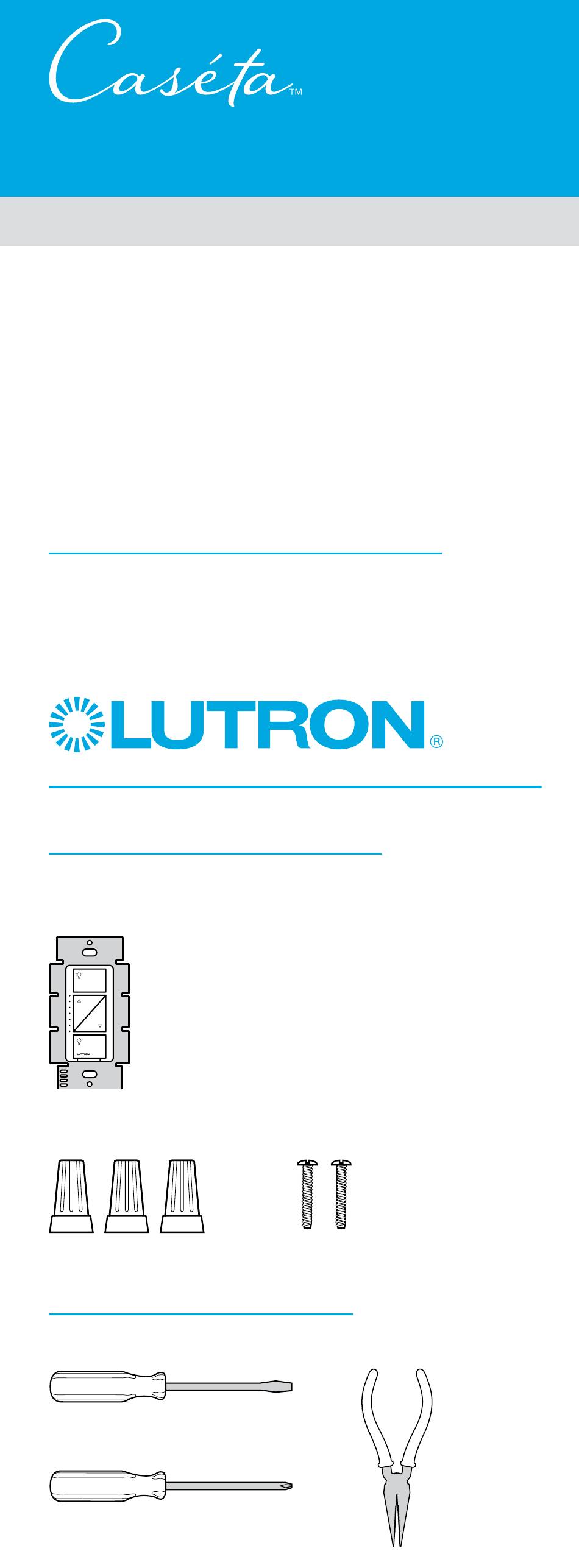

Contents supplied
In-wall dimmer
(PD-6WCL-WH)
Wire connectors (3)
Screws (2)
Tools you'll need
Flat-head screwdriver
Pliers
Phillips-head screwdriver
P/N 030-1696 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Caseta Wireless and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics Caseta Wireless

Summary of Contents for Lutron Electronics Caseta Wireless

  • Page 1 Wireless quick-start guide In-wall dimmer Welcome—and thank you for purchasing a Caséta Wireless in-wall dimmer. In order to control your lights remotely, you’ll need to replace an existing switch with a Caséta Wireless in-wall dimmer. Before you install the dimmer, please watch the installation video at www.casetawireless.com.

  • Page 2: Important Note

    Installing your dimm Installing your dimmer Installation for lights with one wall switch (single pole) Turn power off at circuit breaker! remove existing switch from wall remove side sections (if n Turn power off at circuit breaker! Remove the wallplate from switch. Bend back and forth.
  • Page 3 remove existing switch from wall Remove the wallplate from switch. Remove the switch and pull it away from the wall. Disconnect all three wires* from the switch. Ground Ground * If your switch has more than 3 wires attached, see “Installing Caséta Wireless in a 3-way switch application”...
  • Page 4 remove side sections (if necessary) Bend back and forth. Do not remove outside side sections on dimmers at the end of gang. Each dimmer Dimmer at middle has all has inside side side sections removed. sections removed. Important note: Removing side sections reduces the dimmer’s maximum wattage rating.
  • Page 5 Connect the dimmer Ground Connect the bare copper (or green) “ground” wire from the wallbox to the green wire on the dimmer using a wire connector. Connect either of the remaining wires from the wallbox to either of the remaining wires on the dimmer using a second wire connector.
  • Page 6 attach the wallplate Attach the wallplate to the dimmer using the screws provided. ‘snap’ (If you installed the dimmer next to other dimmers or switches, you’ll need to install a wallplate with the correct size/number of openings to accommodate all the devices.) Turn power on at circuit breaker...

  • Page 7: Important Notes

    Using your dimmer Using your dimmer with a remote control (sold separately) Pairing the dimmer and Changing the fa Pico remote control level on the Pico control (sold sep Brighter (with raised icon) Press and hold “off” button on dimmer Darker Hold for 6 seconds You can use the round “favorit...
  • Page 8 Pairing the dimmer and Pico remote control Press and hold “off” button on dimmer Hold for 6 seconds until LEDs start blinking Press and hold “off” button on remote Hold for 6 seconds until lights flash 3 times. Repeat steps to pair other Pico remote controls.
  • Page 9 Changing the favorite light level on the Pico remote control (sold separately) You can use the round “favorite” button on the Pico remote control to recall a favorite light level. Favorite We’ve set it to 50%, but you can change it to any level you like. Set desired light level on dimmer Press and hold “favorite”...

  • Page 10: Troubleshooting

    Troubleshooting Symptoms Probable cause and action • Light bulb(s) burned out. Light does • Breaker is OFF or tripped. not turn on or • Light not properly installed. in-wall dimmer • Wiring error. LEDs do not light up. • FASS switch on the dimmer is in the Off position.

  • Page 11: Fcc/Ic Information

    For warranty information, please visit www.casetawireless.com/warranty. Lutron, , and Pico are registered trademarks and FASS and Caséta are trademarks of Lutron Electronics Co., Inc. NEC is a registered trademark of the National Fire Protection Association, Quincy, Massachusetts © 2013 Lutron Electronics Co., Inc...
  • Page 12 CFLs, please visit www.casetawireless.com. Approved light bulbs include: Cree BA19-08027OMF-12DE26-1U100 Ecosmart ECS 30 WW FL 75WE 120 ECS 38 WW FL 90WE 120 Feit A19/DM/LED PAR38/LEDG5 Philips 9290002295 Sylvania LED12A19/DIM/O/827 LED21PAR38/DIM/P/930/FL30 Lutron Electronics Co., Inc. 7200 Suter Road Coopersburg, PA 18036-1299, U.S.A.
