Lutron Electronics AYCL-153P Quick Install Manual

LED + Dimmer
How-to Install with
videos confidence
Use included diagrams
or visit our website for
lutron.com/
P/N 0301945 REV A
AYCLwiring
Ganging and Derating
Remove side sections if mounting two or more devices side by side
(see chart for new wattage rating).
* Maximum Allowable Inc. / Hal. Wattage
No sides 1 side removed 2 sides removed
removed
600 W 500 W 400 W
English
WARNING: SHOCK HAZARD. May result in serious injury or death.
Turn off power at circuit breaker or fuse before installing.
For lights switched from one location:
Brass screw
Green wire
NOTE: Wire connections to the bottom screws are interchangeable.
AFTER INSTALLATION: Adjust dimming range for LEDs and CFLs
1. Turn lights ON and move slider to bottom.
2. Adjust lever to improve dimming.
3. Turn lights OFF and ON to verify proper operation.
For Troubleshooting, please visit www.lutron.com/support
FCC / IC Information: www.lutron.com/fcc-ic
Limited Warranty: www.lutron.com/TechnicalDocumentLibrary/369-119_Wallbox_Warranty.pdf ©2013–2020 Lutron Electronics Co., Inc.
Lutron and LED+ are trademarks or registered trademarks of Lutron Electronics Co., Inc., in the U.S. and other countries. The YouTube icon is a trademark of Google LLC.
Receive an Extended Warranty: www.lutron.com/CLregistration
®
120 V~ 60 Hz
Find the
right LED
step-by-step
instructions.
lutron.com/
LEDfinder
Bend back
and forth
INSTALL WITH CONFIDENCE
VIDEO & STEP-BY-STEP INSTRUCTIONS VIDEO & STEP-BY-STEP INSTRUCTIONS
lutron.com/AYCLwiring
Single Pole
Not used
Copper
screw
Insert
and twist
to tighten
Ground wire
(bare or green)
Support: 1.844.LUTRON1 (USA / Canada)

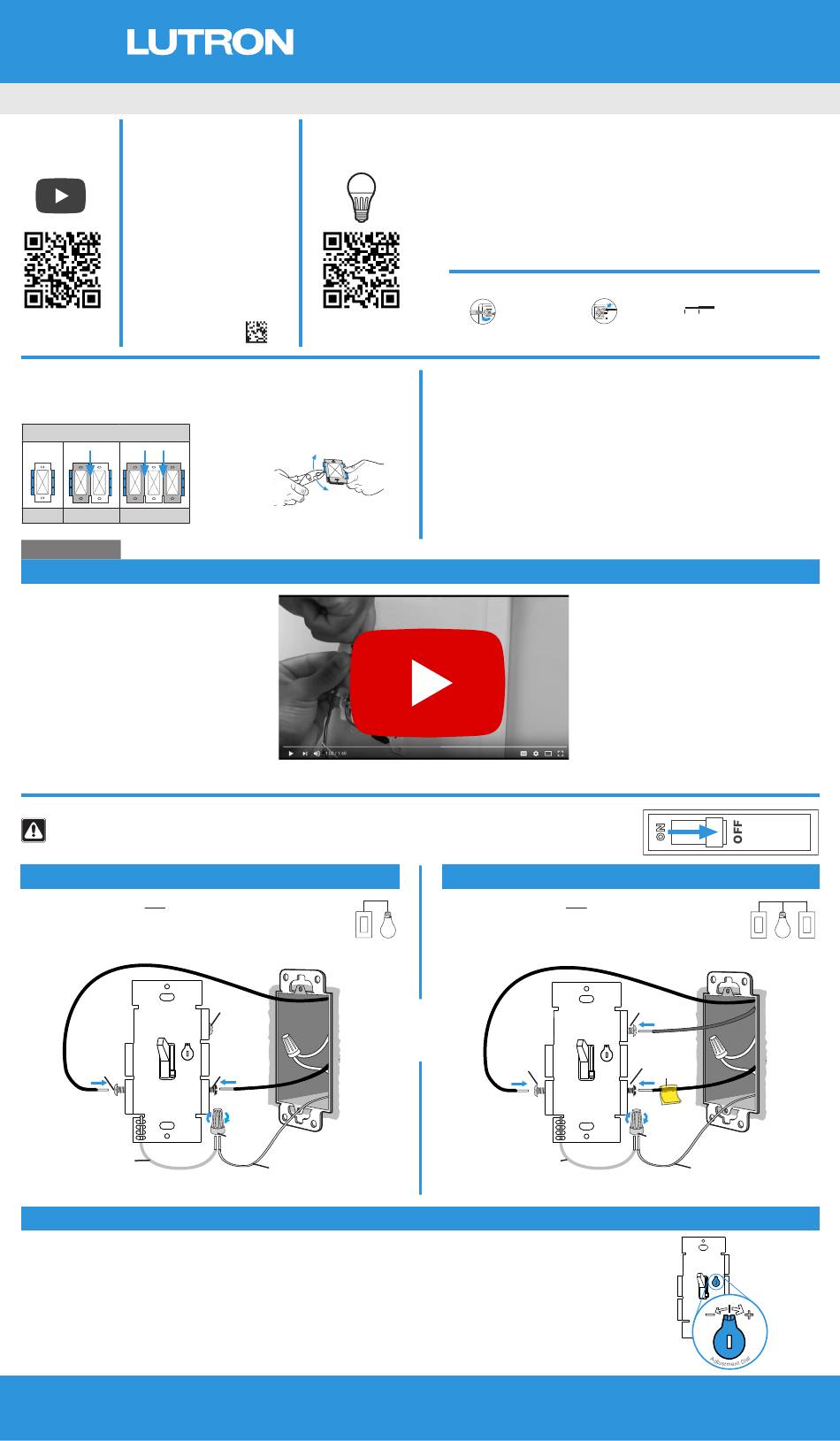

Quick Install Guide

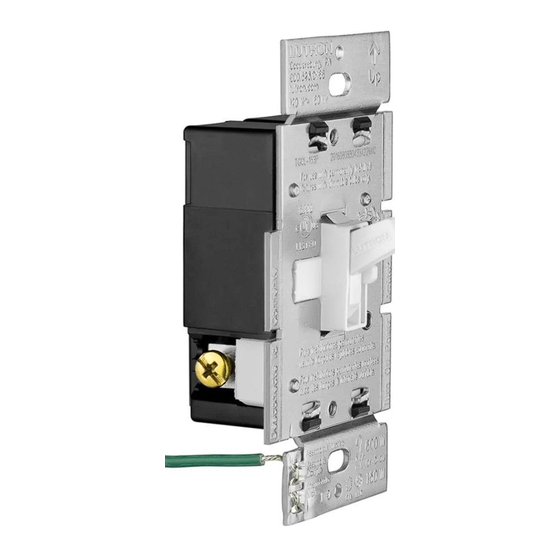

AYCL-153P, TGCL-153P
150 W 600 W *
LED / CFL Incand. / Halogen
AYCL-253P
600 W *
250 W
CFL / LED Incand. / Halogen
Please read before installing
5 in-lbs (0.55 N•m)
OR
12 / 14 AWG
(2.5–1.5 mm 2 )
Important Notes
1. CAUTION: Use only with permanently installed fixtures with dimmable screw-in compact fluorescent,
dimmable screw-in LED, halogen, or incandescent lamps. To avoid overheating and possible damage
to other equipment, do not use to control receptacles, motor-driven appliances, or transformer-supplied
appliances.
2. Install in accordance with all national and local
electrical codes.
3. When no "grounding means" exists in wallbox, the National Electrical Code (NEC
installed as a replacement when a plastic faceplate with plastic fasteners is used, or the circuit is protected
by a ground fault circuit interrupter (GFCI). Lutron wallplates meet this requirement. Cap or remove green
wire before screwing dimmer into wallbox.
4. Protect the dimmer from dust and dirt when painting or spackling the wall.
5. It is normal for the dimmer to feel warm to the touch during operation.
6. Clean the dimmer with a soft damp cloth only. Do not use any chemical cleaners.
7. For indoor use only.
For lights switched from two locations:
IMPORTANT: Mark or tag the common wire
before removing the old switch.
QUESTIONS? See lutron.com/AYCLwiring
OR
Brass screw
Green wire
NOTE: Only one dimmer can be used in a 3-way circuit.
+ 1.888.235.2910 (Mexico)
1/2 in
14 AWG ONLY (13 mm)
) allows a control to be
®
3-Way
Brass screw
Copper
screw
Marked wire
Insert
and twist
to tighten
Ground wire
(bare or green)
5
