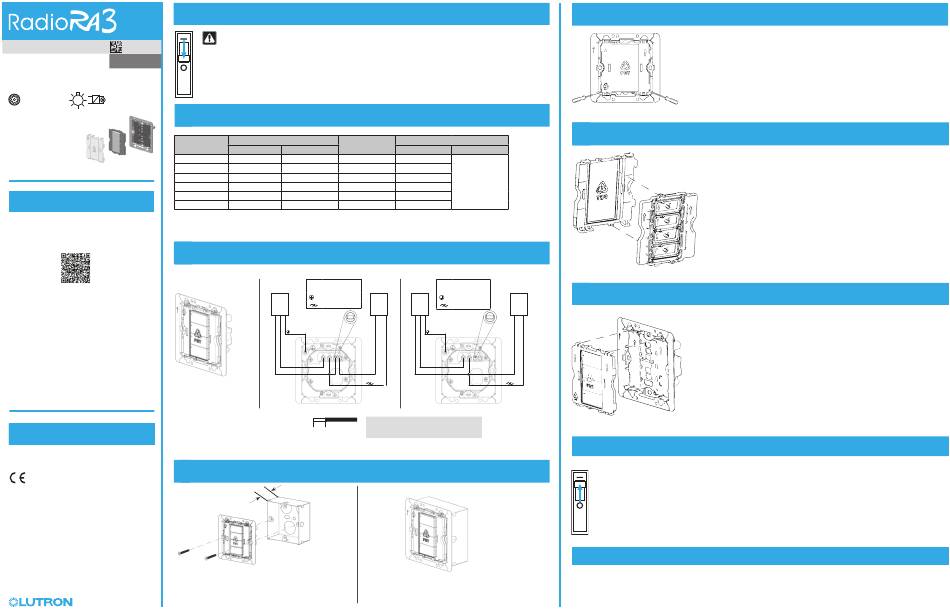

Lutron Electronics RADIORA 3 Quick Start Manual

1
044424 Rev A
Dimmer
03/2025
English
Please read before installing.
RRE-HDS-1
RR-HD
220 - 240 V~ 50 / 60 Hz
1 A 150 W 250 W
LED
LED DEL Inc. / Hal. / ELV
2
Included Components
Bulk Hybrid Keypad
Mounting Plate 1
Button Kit
2
Load Type
Construction Cover
Mounting Screws
LED
1 When Included ELV with LEDs
2 For RR-HD only
ELV with Inc./Hal. 10 W
Inc./Hal.
PHPM-PA-CE
Help
GRX-TVI
RA3 Support Center 1 LED rating is 1 A. If no current rating is specified on the LED lamp, a power rating of 150 W can be used.
NOTE: Do not install hybrid keypads to control sockets or motor-operated appliances.
For additional support with
installing, programming,
3
and troubleshooting
Connect the wires using one
lutron.com/RA3support of the two diagrams.
Europe: +44.(0)20.7702.0657
Indonesia: 001.803.011.3994
KSA: 140.025.05512
Singapore: 800.120.4491
Thailand: 001.800.120.665853
UAE: +800.031.10102
India: 000800.050.1992
U.S.A. / Canada: 1.844.LUTRON1
Mexico: +1.888.235.2910
Other Countries (toll): +971600521581
www.lutron.com/support
Limited Warranty:
https://assets.lutron.com/a/documents/intl_warranty.pdf 4
Hereby, Lutron Electronics Co., Inc. declares that the radio equipment
type RRE-HDS-1 and RR-HD are in compliance with Directive
2014/53/EU
The full text of the EU declaration of conformity is available at the
following internet address: lutron.com/cedoc
Lutron, RadioRA 3, and any related trade dress and logos are
M3.5 mm x
trademarks or registered trademarks of Lutron Electronics Co., Inc. in
30 mm
the US and/or other countries.
All other product names, logos, and brands are property of their
respective owners.
Mount the hybrid keypad to the backbox using the horizontally
located screw holes only as shown.
©2025 Lutron Electronics Co., Inc.
Turn OFF power at circuit breaker or remove fuse
WARNING: SHOCK HAZARD.
May result in serious injury or death. Always isolate the mains power
supply or remove fuse before servicing or installing.
Load types and ratings
Minimum Load
Maximum Load
With Neutral Without Neutral
1 0 W 10 W 1 A 150 W
10 W - 250 W
- 250 W
0 W 10 W 250 W
1 interface - 3 interfaces
1 interface - 3 interfaces
Wiring
With Neutral Wiring (Dimming or Switching Mode)
N = Neutral
L = Live
= Earth
Breaker
= Controlled Output
0,6 N•m
L
N
Products must be installed in accordance with
5 mm
the latest building and wiring regulations.
Note: Terminals are designed for one wire per terminal only.
Mounting
Depth: 35 mm minimum
Neutral Connection
Dimming Switching
Preferred
Required
Required
Required
Preferred
Required
Required
Without Neutral Wiring (Dimming Mode Only)
N = Neutral
L = Live
= Earth
Load Breaker Load
= Dimmed Live
0,6 N•m
L
N N N
Wallplate installation instructions are included with the wallplate.
Replace construction cover with wallplate after construction has
been completed.
5
Removing the Construction Cover
If the keypad already has a button kit installed (RR-HD),
skip to step 8.
If the keypad does not have a button kit installed
(RRE-HDS-1), follow the instructions below to install the
button kit (button kit is sold separately).
Use a screwdriver or other tool to pry free the corners of
the construction cover and remove the construction cover
from the keypad.
6
Adding the Button Kit
Snap the construction cover onto the button kit.
7
Adding the Construction Cover to the Keypad
Snap the construction cover onto the keypad, engaging
the top two snaps first and then the bottom two.
Replace the construction cover with the wallplate after
construction has been completed.
Note: Wallplate installation instructions are included
with the wallplate.
8
Turn ON power at circuit breaker or install fuse
9
System setup
For control of other dimmers, switches, and shades this hybrid keypad must be used in a RadioRA 3 system with a processor.
Use the RadioRA 3 programming software to setup the system (training is required to access the software).
Do not attempt to program a keypad if the keypad does not have a button kit installed.
