Elektra Beckum PKF 255 V8 Operating Instruction

Elektra Beckum PKF 255 V8 Operating Instruction

Panel sizing saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

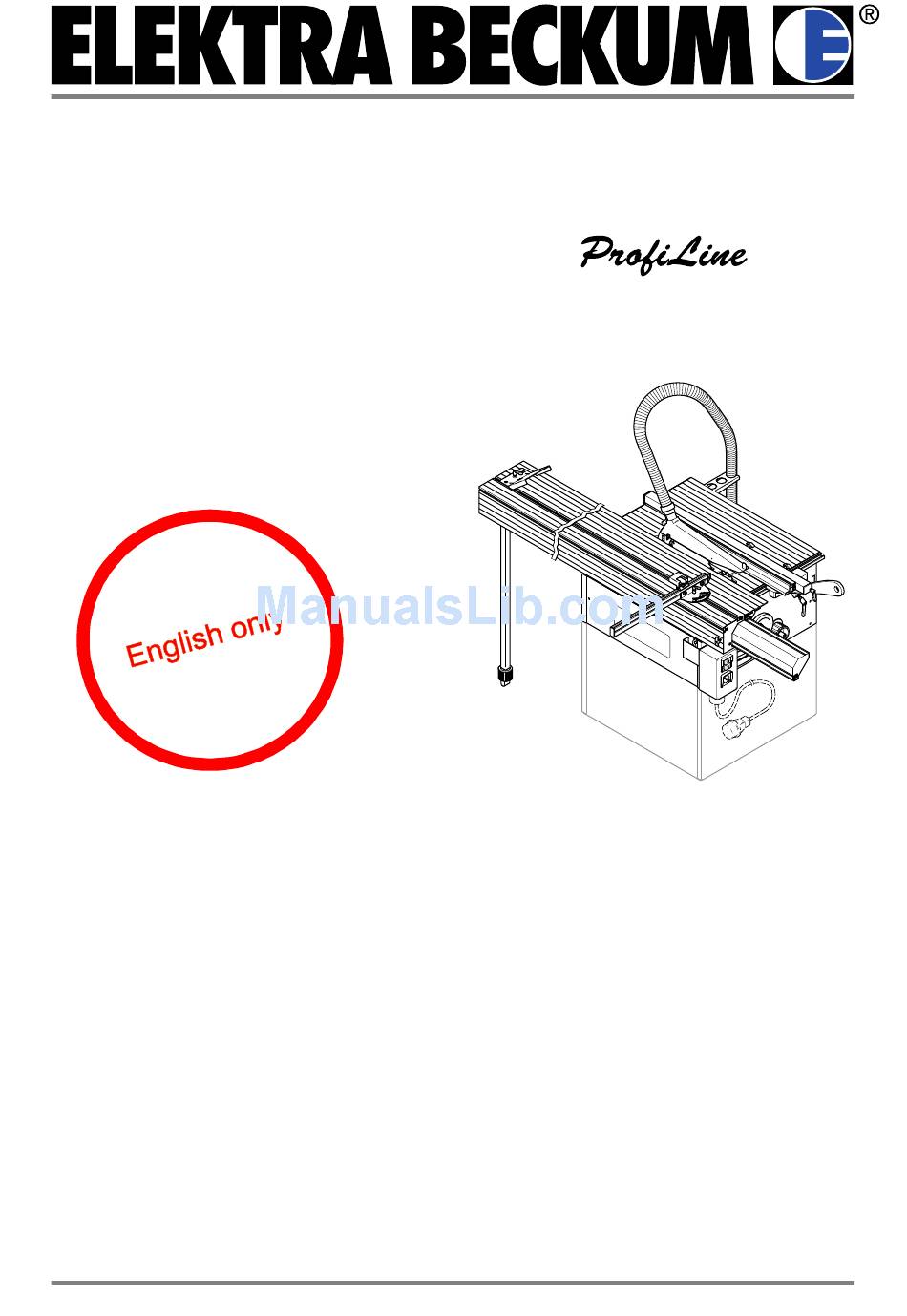

D
Betriebsanleitung
Formatkreissäge
G
Operating Instruction
Panel sizing saw
F
Instructions d'utilisation
Scie circulaire de format
PKF 255 V8
45

Advertisement

Table of Contents
loading

Frequently Asked Questions (9)

  • How do I replace the saw blade on the Elektra Beckum PKF 255 V8 Saw?

    To replace the saw blade on the Elektra Beckum PKF 255 V8 Saw, follow these steps:

    1. Remove the travelling sizing table.
    2. Raise the saw blade fully.
    3. Remove the blade guard.
    4. Loosen screws on the chip case cover. Lift the chip case cover slightly and swing it over the screws.
    5. To block the saw blade, insert the lock bar into the hole in the saw table and turn the saw blade by hand until the lock bar engages in the saw spindle hole.
    6. Loosen the saw blade spindle arbor nut with a spanner (it has a L.H. thread!).
    7. Take the outer blade collar and saw blade off the saw spindle.
    8. Clean the clamping surfaces of the saw spindle and saw blade.
    9. Put on a fresh saw blade, ensuring to observe the direction of rotation. The saw spindle's driving pin must fit into one of the saw blade's two pin holes. 1
    10. Slide the outer blade collar onto the saw spindle. The saw spindle's driving pin must fit into the pin hole of the outer blade collar. 1
    11. Screw the arbor nut, with the low side facing the blade, onto the saw spindle (L.H. thread!). Tighten fingertight only with the tool supplied. 1
    12. Slide the chip case cover back into the closed position and tighten the screws. 1
    13. Reinstall the travelling sizing table.

    Always wear gloves when changing blades to avoid injury from the saw blade's teeth.


    For more information, see page 14 of the manual.
    Was this helpful?
  • How do I adjust the blade height on the Elektra Beckum PKF 255 V8 Saw?

    The depth of cut can be adjusted by turning the handwheel. To compensate for possible play in the blade height setting mechanism, always raise the blade to the desired position.


    For more information, see page 7 of the manual.
    Was this helpful?
  • What type of blades can be used with the Elektra Beckum PKF 255 V8 Saw?

    The Elektra Beckum PKF 255 V8 Saw can use:

    • Main saw blades with a diameter of 250 mm and an arbor bore of 30 mm, with a maximum depth of cut of 80 mm.
      • For extraordinary long edge life for solid timber or laminated timber: Ø 250 x 3.2/2.2 x 30 2NL, T = 42 universal ATB.
      • For smooth edge cuts in solid timber or particle board: Ø 250 x 3.2/2.2 x 30 2NL, T = 80 multiple ATB.
      • In conjunction with a scribing blade for faced sheets or veneered sheets: Ø 250 x 3.2/2.2 x 30 2NL, T = 60 combination ATB.
    • Scribing blades with a diameter of 90 mm and an arbor bore of 30 mm.
      • For solid timber, faced sheets, veneered sheets, or particle board: Ø 90 x 4.8/3.2 x 30, T = 10 flat top.

    Only suitable saw blades should be used. Saw blades made of high speed steel (HSS), saw blades with visible damage, or cut-off wheel blades should not be used.


    For more information, see pages 6, 14 and 22 of the manual.
    Was this helpful?
  • What are the specifications of the motor in the Elektra Beckum PKF 255 V8 Saw?

    The motor specifications for the Elektra Beckum PKF 255 V8 Saw are:

    • Main motor
      • Speed: 2800 min-1
      • Capacity input P1: 2.5 kW S6 40% (single-phase) or 3.4 kW S6 40% (three-phase)
      • Capacity output P2: 1.9 kW S6 40% (single-phase) or 2.5 kW S6 40% (three-phase)
    • Scribing motor
      • Speed: 2800 min-1
      • Capacity input P1: 0.3 kW S6 40%
      • Capacity output P2: 0.2 kW S6 40%

    For more information, see page 21 of the manual.
    Was this helpful?
  • What safety features does the Elektra Beckum PKF 255 V8 Saw include?

    The Elektra Beckum PKF 255 V8 Saw includes several safety features:

    • Riving knife: This device prevents the workpiece from being caught by the rising teeth of the saw blade and being thrown against the operator. It must always be installed during operation.
    • Blade guard: This protects against accidental contact with the blade and keeps chips from flying about. It must always be installed during operation.
    • On/off switch with motor protection: A motor protection switch is built into the switch enclosure to switch the motor off in the event of an overload. An undervoltage relay trips in the event of a voltage failure to prevent a restarting of the saw when power is restored.
    • General safety guidelines: The saw should only be operated in a dry environment and connected to a power source with fuse protection by a residual current operated device (RCD) of 30 mA sensitivity, properly grounded outlets, and outlets for 3-phase circuits with a neutral lead. It's crucial to switch the machine OFF, unplug the power cable, and wait until the saw blade comes to a complete standstill before any service or maintenance work. Dull blades should be replaced without delay to avoid kickback. The workpiece should always be pushed down on the saw table and not jammed.
    Was this helpful?
  • How do I set up the fence on the Elektra Beckum PKF 255 V8 Saw for accurate cuts?

    To set up the fence for accurate cuts:

    • Rip fence:
      • The rip fence slides onto the saw from the right-hand side and locks on the saw's front.
      • Always tighten the lower lock lever to prevent jamming.
      • The auxiliary fence extrusion can be repositioned for a small edge (for cutting thin stock or when the saw blade is tilted) or a wide edge (for cutting thick stock up to 65 mm).
      • For rip cuts, lock the rip fence in the required position on the saw table.
      • Reposition the auxiliary fence extrusion as necessary: low edge for thin stock or high edge for thick stock.
      • To set the rip fence scale, position the rip fence against the right-hand side of the main blade and lock it. The "0"-mark of the scale should be directly underneath the left-hand edge of the rip fence extrusion. If not, loosen the fixing screw and reposition the scale, then tighten the fixing screw and remove the rip fence.
    • Mitre fence:
    • Universal fence adjustments:
      • Check if the fence is square against the saw blade with a try square.
      • If necessary, loosen fixing screws and adjust the mitre scale.
      • Retighten fixing screws.
      • After resetting any backstops, check the bevel tilt scale on the machine's front and adjust if necessary.
    Was this helpful?
  • What should I do if the Elektra Beckum PKF 255 V8 Saw motor overheats?

    If the motor of your Elektra Beckum PKF 255 V8 Saw overheats, which can be caused by a dull saw blade, too high a feed rate, or sawdust build-up in the housing, you should:

    • Eliminate the cause for overheating.
    • Wait for a few minutes.
    • Then, start the saw again.

    For more information, see page 20 of the manual.
    Was this helpful?
  • How often should I clean the Elektra Beckum PKF 255 V8 Saw?

    The Elektra Beckum PKF 255 V8 Saw should be cleaned:

    • Monthly (if used daily): Clean guide elements for saw blade setting (threaded rods for blade rise and fall, swivel segments) and check guide elements of the travelling sizing table (bearing surfaces, roll bearings). This involves removing chips with a vacuum cleaner or brush and applying a light coat of oil to guide elements.
    • Regularly: Remove chips and sawdust from saw blade setting guide elements, travelling sizing table guide elements, and motor vent slots using a vacuum cleaner or brush.
    Was this helpful?
  • What are the main components of the Elektra Beckum PKF 255 V8 Saw?

    The main components of the Elektra Beckum PKF 255 V8 Saw include:

    • Hold-down plate
    • Travelling sizing table
    • Riving knife
    • Suction hose for blade guard
    • Hose carrier for suction hose / blade guard
    • Blade guard
    • Rip fence with auxiliary fence extrusion
    • Saw table
    • Scribing blade
    • Push stick
    • Handwheel for depth of cut setting
    • Handwheel with lock lever for blade tilt setting
    • Workstand (optional accessory)
    • Mains connection
    • On/off switch with emergency stop
    • Mitre fence
    • Main saw blade

    For more information, see page 4 of the manual.
    Was this helpful?
Need help?

Need help?

Do you have a question about the PKF 255 V8 and is the answer not in the manual?

Questions and answers

Related Manuals for Elektra Beckum PKF 255 V8

Summary of Contents for Elektra Beckum PKF 255 V8

  • Page 1 Betriebsanleitung Formatkreissäge PKF 255 V8 Operating Instruction Panel sizing saw Instructions d'utilisation Scie circulaire de format...

  • Page 2: Great Britain

    Die beiliegende Garantiekarte senden Sie bitte an uns zurück. Den Kaufbeleg bitte aufbewahren! Ein Anspruch auf Garantieleistungen Deutschland besteht nur gegen Vorlage des Kaufbelegs. Die Adresse Ihrer nächstgelegenen Werksvertretung finden Sie auf der hinteren Umschlagseite. Please return the enclosed warranty card to us. Retain proof of purchase! You are only entitled to claim warranty against Great Britain proof of purchase.

  • Page 3: Scope Of Delivery

    (only for travelling sizing table 1800 mm) Lock bar Hold-down plate Connector suction hose / chip case hardware bag Connector for suction hoses Hose carrier for suction hose / blade guard Push stick / feeding aid Blade guard hardware bag PKF 255 V8...

  • Page 4: Saw Components And Controls

    Suction hose for blade guard Mains connection Hose carrier for suction hose / blade guard On/off switch with emergency stop Blade guard Mitre fence Rip fence with auxiliary fence extrusion Main saw blade Saw table Scribing blade Push stick PKF 255 V8...

  • Page 5: Please Read First

    Persons under 16 years of age shall use this saw only under the supervision of an instruc- tor in the course of their vocational training. PKF 255 V8...

  • Page 6: Symbols Shown On The Machine

    To start the saw again after a power failure the on/off switch has to be set to ON. Always have blade guard installed during operation. PKF 255 V8...
  • Page 7 The travelling sizing table is mounted on the saw to pull lever up, turn and let engage again. the left of the saw blade (see „Assembly and con- nection"). · To move the travelling sizing table pull travel lock lever and turn by 90˚. PKF 255 V8...

  • Page 8: Assembly And Connection

    (air speed at suction port of - when the saw blade is tilted. saw ³ 20 m/s). Caution! Operation without a dust collector is only possible - outdoors; - for short duration max. 30 minutes); - with a dust mask. PKF 255 V8...
  • Page 9 2. Attach the small diameter suction hose to the blade guard. 3. Hook hose carrier into horizontal slot of the saw housing’s right-hand side panel. 4. Attach small diameter suction hose to hose car- rier. PKF 255 V8...
  • Page 10 5. Put large washer on short stud screw and screw on ratchet lock lever. 6. Fit two cup square neck screws into the fence extrusion’s groove and put the screw’s threaded ends though the oblong holes. PKF 255 V8...

  • Page 11: Mains Connection

    6. With a flat bit screwdriver push the plug's phase lever. inverter in and turn by 180°. Caution! Do not turn the phase inverter by the contact pins! PKF 255 V8...

  • Page 12: Operation

    2. If necessary, set mitre fence to required mitre angle and lock in position. Caution! Position fence extrusion so its edge is between 5-10 mm away from the line of cut. 3. Unlock the travelling sizing table’s travel lock. 2.10 PKF 255 V8...

  • Page 13: Care And Maintenance

    6. Start main saw blade (rotary switch to ON). 7. Push travelling sizing table forward to cut work- piece in a single pass. 8. Switch machine off if no further cutting is to be done immediately afterwards. 2.11 PKF 255 V8...
  • Page 14 8. Clean clamping surfaces of saw spindle and 12. Slide chip case cover back into the closed posi- saw blade. tion and tighten screws. 13. Reinstall the travelling sizing table. 2.12 PKF 255 V8...
  • Page 15 4. Remove scribing blade and dish spring assem- bly from blade arbor. 6. Stand saw back on its feet/workstand. 7. Adjust saw blade position by turning the setting nuts. 8. Turn saw over again and place on its saw table. 2.13 PKF 255 V8...
  • Page 16 - Do not tighten arbor nut by tapping on the wrench. 10. Put scribing blade drive belt back on the pulleys. It must be tensioned by the spring. 11. Install main saw blade and travelling sizing table (as described earlier). 2.14 PKF 255 V8...

  • Page 17: Riving Knife Setting

    The distance between the saw blade’s outer edge and the riving knife should be approx. 5 mm. 3. Check belt tension at window in transmission housing by pressing with a thumb. If the belt requires retensioning: 2.15 PKF 255 V8...

  • Page 18: Blade Tilt Stop Setting

    2. If the 0˚ (90˚) stop does not exactly match the saw blade position: lower saw blade completely, turn saw upside down and place on its saw table. 2.16 PKF 255 V8...
  • Page 19 - loosen fixing screw and reposition scale. - nobody can get injured. - tighten fixing screw and remove rip fence. The on/off buttons can be blocked with a pad- lock. Caution! Do not store machine outdoors or in damp environment without protection. 2.17 PKF 255 V8...

  • Page 20: Service Plan

    Travelling sizing table not running smoothly belt Roll bearings/bearing Clean, if necessary All screwed connec- Check, retighten if nec- surfaces soiled. adjust or replace bear- tions essary (except saw ing surface brushes. blade longitudinal shift setting screws). 2.18 PKF 255 V8...

  • Page 21: Technical Specifications

    Sound power level A L dB (A) 89,0 89,0 Noise emission value during sawing opera- tion, dust collection on A-sound pressure level L dB (A) 89,0 89,0 Sound power level A L dB (A) 98,0 98,0 2.19 PKF 255 V8...

  • Page 22: Available Saw Blades

    Æ 90 x 4.8/ 3.2 x 30 Scribing blade for 091 005 2489 - solid timber T = 10 flat top - faced sheets - veneered sheets - particle board Circuit diagrams Three-phase motor Single-phase motor 2.20 PKF 255 V8...
  • Page 23 Declaramos, que el modelo de la máquina/aparato - Declaramos que o tipo de construção da máquina/do aparelho Formatkreissäge PKF 255 V8/ 3100 WNB - PKF 255 V8/ 4200 DNB Art.-Nr. - Stock-no. - N° d’ article - art.-nr. - art.-nr . - Art.-nr. - Art.-Nr. - tuotenumero - N° Art. - Art.N° - artigo n°: 019 259 3441 - 019 259 3433 folgenden einschlägigen Bestimmungen entspricht - corresponds with the following relevant regulations...
  • Page 24 Fax: 00351-2-712467017 Suomi/ Finland Sverige Nofa OY HDF-Paulsson AB P.O.Box 28 Box 525 Hannuksentie 1 Svaravaregatan 5 FIN-02270 Espoo S-30180 Halmstad Tel.: 00358-9804-861 Tel.: 0046-35-154400 Fax: 00358-9803-9485 Fax: 0046-35-121780 PKF 255 V8 – ARL0014 115 163 7007 D/GB/F 2498 1.0...
