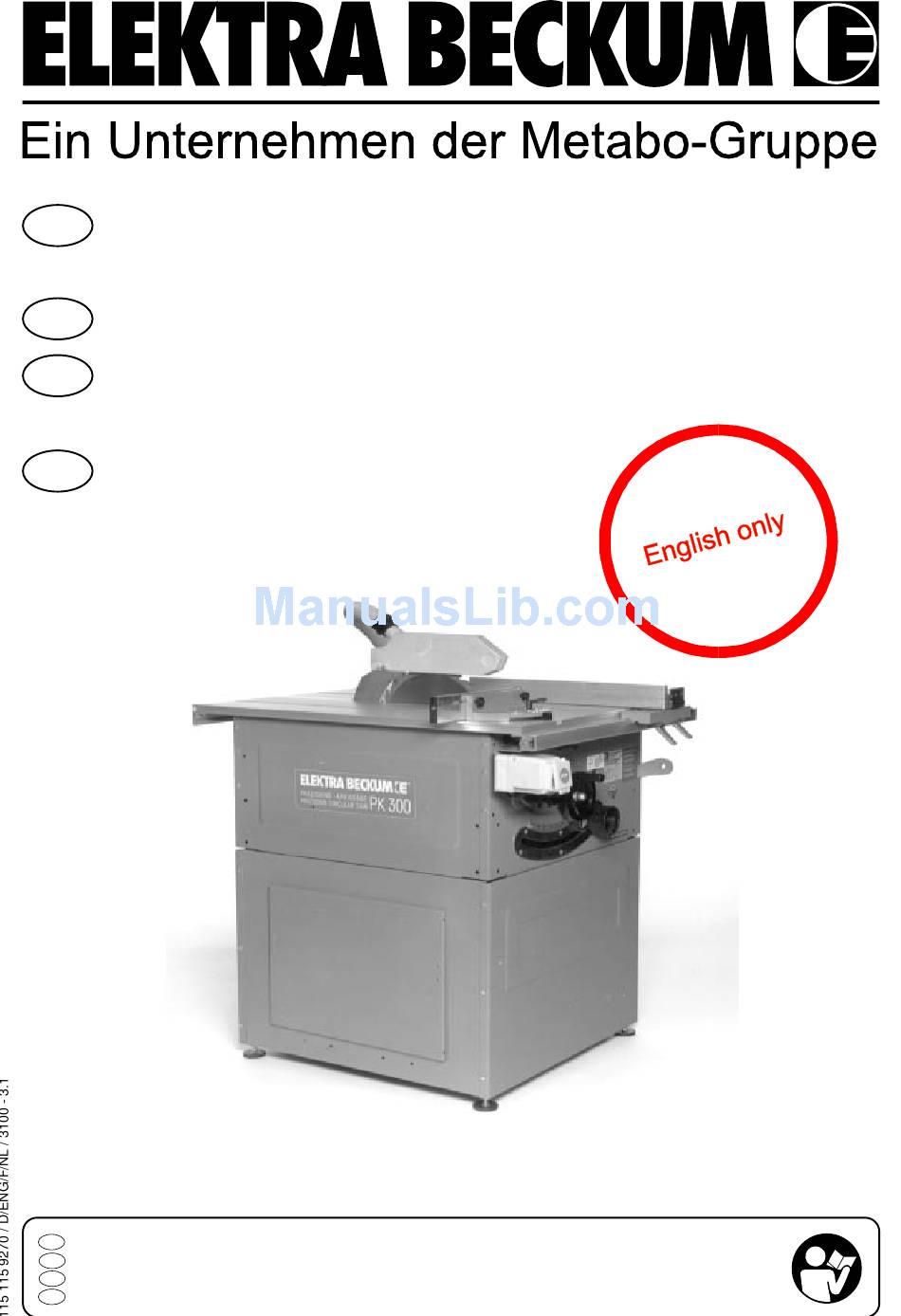

Betriebs- und Montageanleitung
D
Präzisionskreissäge
Operating Instructions Precision Circular Saw
ENG
Notice de service et de montage Scie circulaire
F
de précision
Handleiding Bediening
NL
Precisie-cirkelzaagmachine
PK 300 K
Le châssis n'est pas compris dans le programme de livraison (équipement optionnel)
Achtung!
Lesen Sie diese Anleitung vor der Installation und Inbetriebnahme aufmerksam durch.
D
Attention!
Carefully read through these instructions prior to installation and commissioning.
ENG
Attention!
Prière de lire attentivement la présente notice avant l'installation et la mise en service.
F
Attentie!
Lees deze instructies voor de installatie en ingebruikname aandachtig door.
NL
Untergestell nicht im Lieferumfang enthalten (Sonderzubehör)
Base not included in Standard Delivery (Optional Accessoires)
Het onderstel wordt niet standaard meegeleverd (beschikbaar als optie).
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PK 300 K and is the answer not in the manual?

Questions and answers

Summary of Contents for Elektra Beckum PK 300 K

  • Page 1 Notice de service et de montage Scie circulaire de précision Handleiding Bediening Precisie-cirkelzaagmachine PK 300 K Untergestell nicht im Lieferumfang enthalten (Sonderzubehör) Base not included in Standard Delivery (Optional Accessoires) Le châssis n’est pas compris dans le programme de livraison (équipement optionnel) Het onderstel wordt niet standaard meegeleverd (beschikbaar als optie).
  • Page 3: Table Of Contents

    Scope of Application This Elektra Precision Circular Saw is designed to perform rip and crosscuts in wood or wooden materials having a square or rectangular cross section. - Crosscuts should be performed only with the help of a mitre fence or the Sliding Carriage PK, available as optional accessory.
  • Page 4: Standard Delivery

    Saw blade TCT 300x2.6/1.8x30 mm 28 alternate bevel teeth Riving knife 2.5 mm Saw blade guard Rip fence Mitre fence Dust extraction port with hoses Push stick Tool set Operating instructions Installation Place machine upside down on two battens to install the workstand. Do not tighten screws fully before all parts have been installed.
  • Page 5: Rip Fence Scale Adjustment

    Important! Always disconnect from power before servicing the saw. Direction of rotation of the saw blade is clockwise, when looking at it from the left side of the saw. To check start saw briefly. If the blade runs counter-clockwise on a three-phase machine, have a qualified electrician interchange two of the phases to correct.
  • Page 6: Controls/Settings

    The switch is equipped with a no-volt release solenoid (magnetic switch), to prevent start-up after a power failure. If the saw is not connected to the power mains the switch does not engage. In the event of a power failure the machine has to be restarted.
  • Page 7: Saw Blades

    Set riving knife to a distance of 3 - 8 mm against the saw blade. Set the height so that the top of the riving knife is not less then 2 mm below the crown of the saw blade. Important! Check mounting screw regularly for stripped threads.
  • Page 8: Overview Of Components/Terms

    Overview of Components/Terms Riving knife Saw blade guard Rip fence Auxiliary fence Mitre fence Push stick Optional Accessories Sliding Carriage Table Rear Extension Table Side extension Optional accessories not shown: Edge Trimming Attachment Wheel Set Cam-lock Clamp Square & Round Stock Jig Jigs and Push Blocks Make a deflector board when crosscutting small work pieces (see paragraph 11.5...
  • Page 9: Dust Collection

    - Before operating the saw check if saw blade is mounted correctly and arbor bolt tightened. Check if blade turns freely. - Large or long stock, which may tilt the saw by its weight, must be supported at both infeed and outfeed side of the table by suitable means, e.g.
  • Page 10 Install fence extrusion with the small edge facing the blade and position so that its front end just reaches the saw blade. With very small cutoffs use a deflector board as described in paragraph 8 to keep the cutoffs from being picked up by the rising teeth of the saw blade.
  • Page 11 Use tape or stick measure to set flipstop to desired width. When dimensioning large panels, which are not adequately supported by the saw table, install the table rear and/or table side extension, available as optional extras, for additional support.
  • Page 12: Tool Maintenance

    Adjusting the Saw Blade Position The saw blade is factory set to a centre position in the table slot. Use of saw blades with wider teeth may require a resetting of the blade position Tilt machine to the rear and rest on rear housing panel to have access to the chip case.
  • Page 13: Wiring Diagrams

    Circuit diagram PK 300 K 4.2 DNB Optional Accessories Sliding Carriage PKS 1500 Sliding Carriage PKS 2300 Table Rear Extension PK Table Side Extension PK Square and Round Stock Jig Cam-Lock Clamp Wheel Set BKH/PK Saw Blades Stock-no. 0910003291 Stock-no. 0910003321 Stock-no.
  • Page 14 Grooved roller bearing 6202-2Z/QE6LHT23 Setting tube Hexagon head screw Threaded rod Adapter sleeve Saw blade spindle, 30mm arbor PK 300 Transmission housing Grooved ball bearing 6005 2RS Hex. thin nut, shape B Grooved belt pulley 14J x 46.5PK 300 Poly-V-belt...
  • Page 15 Pressure spring Guide bracket PK 300 Disk spring Cover plate, transmission housing Carriage bolt Saw blade guard w/suction port PK 300 Riving knife carrier Riving knife, std. Gusset plate PK 300 Hexagon nut, Keps type Chip case cover w/o hooks PK 300...
  • Page 16: Wiring Instructions

    U.K Supplement to Operating Instructions for Elektra Beckum PK 300 K Precision Circular Saw Please note the following supplementary information associated with this machine: 1974 Woodworking Machinery Regulations When in industrial use, this machine falls under the scope of these regulations. In the interest of health & safety of the machine user we recommend you study and follow these regulations.
