The ADS131A04EVM is an evaluation module kit that provides hardware and software support for
evaluation of the ADS131A04 delta-sigma analog-to-digital converter (ADC). The kit utilizes the
TM4C1294NCPDT processor to communicate with the ADC via SPI and provide communication with a PC
over USB interface. The kit also includes a software application that runs on a PC allowing for register
manipulation and data collection from the ADC.
!
Do not connect inputs of this EVM to voltages higher than 5 VAC to
minimize shock hazard.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
SBAU259A – March 2016 – Revised October 2016
Submit Documentation Feedback
ADS131A04 Evaluation Module User's Guide

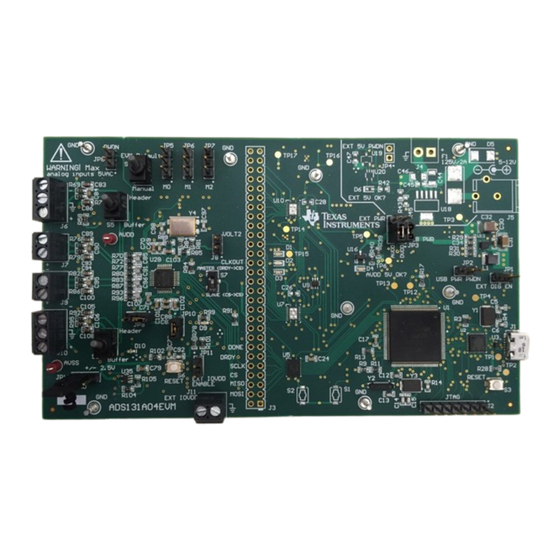

Figure 1. ADS131A04 Evaluation Module
Table 1. Related Documentation
Device
ADS131A04
WARNING
This EVM is not intended for high voltage connections.
Copyright © 2016, Texas Instruments Incorporated
SBAU259A – March 2016 – Revised October 2016
Literature Number
SBAS590
ADS131A04 Evaluation Module User's Guide
User's Guide
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments ADS131A04
Summary of Contents for Texas Instruments ADS131A04
-
Page 1: Ads131A04 Evaluation Module
The ADS131A04EVM is an evaluation module kit that provides hardware and software support for evaluation of the ADS131A04 delta-sigma analog-to-digital converter (ADC). The kit utilizes the TM4C1294NCPDT processor to communicate with the ADC via SPI and provide communication with a PC over USB interface. -
Page 2: Table Of Contents
........................ Reset ................Power Supply Connections – EVM and ADC ....................Powering the EVM ..................Powering the ADS131A04 ............ADS131A04 Bill of Materials, PCB Layouts, and Schematics ....................Bill of Materials ....................... PCB Layouts ......................Schematic List of Figures ................... -
Page 3: Evm Overview
The ADS131A04EVM is an evaluation module kit that provides hardware and software support for evaluation of the ADS131A04 delta-sigma analog-to-digital converter (ADC). The kit utilizes the TM4C1294NCPDT processor to communicate with the ADC via SPI and provide communication with a PC over USB interface. -
Page 4: Quick Start
Down Device interface connected for SLAVE mode operation Channel 4 connected to J7 header Figure 2. ADS131A04 EVM ADS131A04 Evaluation Module User's Guide SBAU259A – March 2016 – Revised October 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 5: Power Connection
M1 pin floating M2 control M2 pin connected to IOVDD M2 pin connected to DGND Open M2 pin floating SBAU259A – March 2016 – Revised October 2016 ADS131A04 Evaluation Module User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 6 ADC IN1 connection Inputs connected to terminal blocks Down Inputs connected to buffers ADS131A04 RESET button (press to reset ADC) Master/Slave interface connection Down Interface configured for device is master (DRDY → CS) Interface configured for device is slave (CS → CS)
-
Page 7: Header And Connector Reference
JTAG test data in signal JTAG test mode select signal JTAG test clock signal Debug UART receive signal Debug UART transmit signal SBAU259A – March 2016 – Revised October 2016 ADS131A04 Evaluation Module User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... - Page 8 The EVM provides the capability to connect an external supply for IOVDD (see Table Table 9. External IOVDD Header, J11 Function Signal Name External IOVDD IOVDD Ground ADS131A04 Evaluation Module User's Guide SBAU259A – March 2016 – Revised October 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
- Page 9 Odd numbered pins not included are connected to microprocessor inputs whose functionality is not used for this EVM. SeeFigure 10 for connection details. Even numbered pins not included are not connected. SBAU259A – March 2016 – Revised October 2016 ADS131A04 Evaluation Module User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
-
Page 10: Software Details
Run the installer and follow the on-screen prompts. Note that future software versions may show slightly different screens. Figure 3. Delta-Sigma Evaluation Engine Installation Instructions ADS131A04 Evaluation Module User's Guide SBAU259A – March 2016 – Revised October 2016 Submit Documentation Feedback... -
Page 11: Ads131A04 Device Package Installation Instructions
Download the ADS131A04 device package installer from the EVM tool page and save to a known folder. Run the ADS131A04 device package installer and follow the on-screen prompts. Note that future software versions may show slightly different screens. Figure 4. ADS131A04 Device Package Installation Instructions SBAU259A –... -
Page 12: Connecting To The Evm Hardware
Software Details www.ti.com Connecting to the EVM Hardware After the Delta-Sigma ADC EvaluaTIon Software and the ADS131A04 device package are installed, ensure that all jumpers and switches are in their default positions per Table 2, and then connect the hardware with the provided USB mini cable. Start the Delta-Sigma Evaluation Engine. The GUI... - Page 13 4.3.2 ADS131A04-Specific Commands Table 11 shows the ADS131A04-specific commands that can be used in the Scripts tab. For more information about scripts, refer to the PA Delta-Sigma Evaluation Software User's Guide (SBAU260). Table 11. ADS131A04 EVM Device-Specific Software Commands Command...
-
Page 14: Evm Hardware Details
Access the digital signals of the device via J3. This header allows for the connection to a logic analyzer or when the EVM is used in a stand-alone configuration for connections to the microprocessor or microcontroller. If controlling the ADS131A04 with an external processor is desired, power down the onboard TM4C1294NCPDT by placing a jumper on JP1. Clock By default, a clock is supplied to the ADC via an external 16.384-MHz crystal. -
Page 15: Adc Reference
To use an external reference, remove JP9 and connect the external reference to JP9, pin 1. Reset Reset the ADC by pressing S6. SBAU259A – March 2016 – Revised October 2016 ADS131A04 Evaluation Module User's Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated... -
Page 16: Power Supply Connections - Evm And Adc
The EVM is only powered by the USB connection at J1. Powering the ADS131A04 The ADS131A04 analog supply is provided by AVDD and AVSS connections. The ADC is designed to be operated by either via single or bipolar supply. 6.2.1 Single-Supply Configuration To connect the ADC in a single-supply configuration, install a jumper on JP11, pins 1-2. -
Page 17: Ads131A04 Bill Of Materials, Pcb Layouts, And Schematics
ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com ADS131A04 Bill of Materials, PCB Layouts, and Schematics Bill of Materials NOTE: All components should be compliant with the European Union Restriction on Use of Hazardous Substances (RoHS) Directive. Some part numbers may be either leaded or RoHS. - Page 18 ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com Table 12. ADS131A04 Bill of Materials (continued) Designator Value Description Package Reference Part Number Manufacturer Alternate Part Alternate Number Manufacturer D9, D10 Yellow LED, Yellow, SMD LED, 1.3x0.65x0.8mm LY L29K-J1K2-26-Z OSRAM H1, H2, H3, H4 Bumpon, Cylindrical, 0.312 X 0.200, Black...
- Page 19 ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com Table 12. ADS131A04 Bill of Materials (continued) Designator Value Description Package Reference Part Number Manufacturer Alternate Part Alternate Number Manufacturer Switch, Slide, SPDT 100mA, SMT Switch, 5.4x2.5x2.5mm CAS-120TA Copal Electronics SH-J1, SH-J2, SH-J3, SH-...
- Page 20 ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com Table 12. ADS131A04 Bill of Materials (continued) Designator Value Description Package Reference Part Number Manufacturer Alternate Part Alternate Number Manufacturer Single Output High PSRR LDO, 150 mA, Fixed 3.3 V Output,...
- Page 21 ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com Table 12. ADS131A04 Bill of Materials (continued) Designator Value Description Package Reference Part Number Manufacturer Alternate Part Alternate Number Manufacturer R21, R26, R44, R56 10.0k RES, 10.0 k, 1%, 0.1 W, 0603...
-
Page 22: Pcb Layouts
ADS131A04 Bill of Materials, PCB Layouts, and Schematics www.ti.com PCB Layouts Figure 6 Figure 7 illustrate the PCB layouts. Figure 6. Top Soldermask Figure 7. Bottom Soldermask ADS131A04 Evaluation Module User's Guide SBAU259A – March 2016 – Revised October 2016 Submit Documentation Feedback Copyright ©... -
Page 23: Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_TM4C_Main.SchDoc Size: http://www.ti.com... -
Page 24: Ads131A04Evm Power Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_TM4C_PowerMisc.SchDoc Size: http://www.ti.com... -
Page 25: Ads131A04Evm Digital Header Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_DigitalHeader.SchDoc Size: http://www.ti.com... -
Page 26: Ads131A04Evm Power Usb Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_Power_USB.SchDoc Size: http://www.ti.com... -
Page 27: Ads131A04Evm Power External Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_Power_External.SchDoc Size: http://www.ti.com... -
Page 28: Ads131A04Evm Adc Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_ADC_Main.SchDoc Size: http://www.ti.com... -
Page 29: Ads131A04Evm Adc Power Schematic
Version control disabled Assembly Variant: -001 Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: PA015A_ADC_Power.SchDoc Size: http://www.ti.com... -
Page 30: Revision History
Changes from Original (Month Year) to A Revision ....................... Page ......• Updated ADS131A04 EVM image to match Table 2 and reflect correct positions, changed caption........• Removed incorrect statement regarding digital signal header in the Digital Inputs section. - Page 31 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein.
- Page 32 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 33 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page SPACER EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
- Page 34 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2016, Texas Instruments Incorporated...
-
Page 35: Important Notice
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
