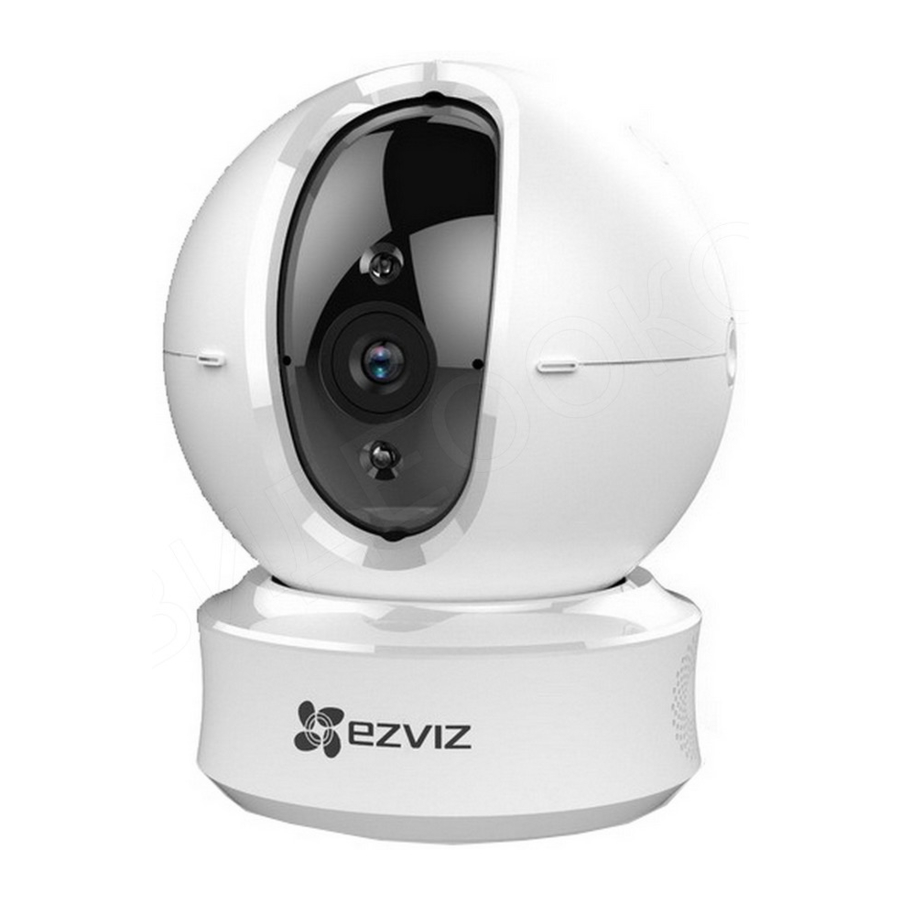

Ezviz C6CN Manual

Setup

Step 1 Power-on

Plug the power cable into the camera, and then plug the power adapter into an outlet as shown in the figure below.

LED Indicator Status

Solid Red: Camera is starting up.
Slowly Flashing Red: Wi-Fi connection has failed.
Fastly Flashing Red: Device exception (e.g. MicroSD card error).

Solid Blue: Video is being viewed or played back in EZVIZ App.
Fastly Flashing Blue: Camera is ready for the Wi-Fi connection.
Slowly Flashing Blue: Camera is running properly.

Turn on the camera and let it power up. The camera will completely rotate side-to-side and tilt up-and-down once.

Step 2 Camera Setup

1. Create a user account

• Connect your mobile phone to Wi-Fi using your 2.4GHz network.
• Search for "EZVIZ" in the App Store or Google Play ^(TM).
• Download and install the EZVIZ app.
• Launch the app.
• Create, and register an EZVIZ user account by following the startup wizard.

2. Adding a camera to EZVIZ

• Log in to your account using the EZVIZ app.
• Tap "+" on the Home page to go to the Scan QR Code interface.

• Scan the QR Code on the camera.
• Follow the EZVIZ app wizard to finish Wi-Fi configuration.



• If the camera fails to connect to your Wi-Fi network, press and hold the Reset button for 5s and repeat Step 2.
• To select another Wi-Fi network, press and hold the Reset button for 5s to reboot the device.

3. Enable the Image Encryption
   After enabling it, your video and image can be encrypted in transmission. You can also change the default password.

• Go to the camera settings.
• Tap "Change Password".


• Tap "Edit".
• Enter the original verification code located on the label of the camera.
• Enter new password (6 to 12 characters and numbers).

4. Angle Adjustment
   You can adjust the camera via the EZVIZ app to get an optimum angle.
   The panning angle ranges from 0° to 340°, and the tilting angle ranges from -15° to 105°.

SD Card Management

• Insert a MicroSD card into the slot before mounting.
• MicroSD card not included in the Box Contents. Recommended compatibility: Class 10, Max.128GB.


1. In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the SD card status.

2. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal and it can store videos and/or pictures.

Mounting (Optional)

The camera can be mounted on the wall or ceiling.

• Make sure the wall/ceiling is strong enough to withstand three times the weight of the camera and the mounting.
• Camera should stay away from any reflective objects such as mirrors.

1. Place drill template onto the surface you have chosen to mount the camera.
2. (For cement wall/ceiling only) Drill screw holes according to the template and insert three expansion screws.
3. Use three metal screws to fix the camera base according to the template.

4. Install the camera on the base, and turn it 15° to secure it.

5. Connect the power cable to the camera. If the camera was previously connected to the Wi-Fi network, it will automatically connect to the same Wi-Fi network.

Box Content

Type

Type A

Type B

For detailed information, please visit www.ezvizlife.com.

Please do not hesitate to contact your seller or our Customer Service, with any questions.
