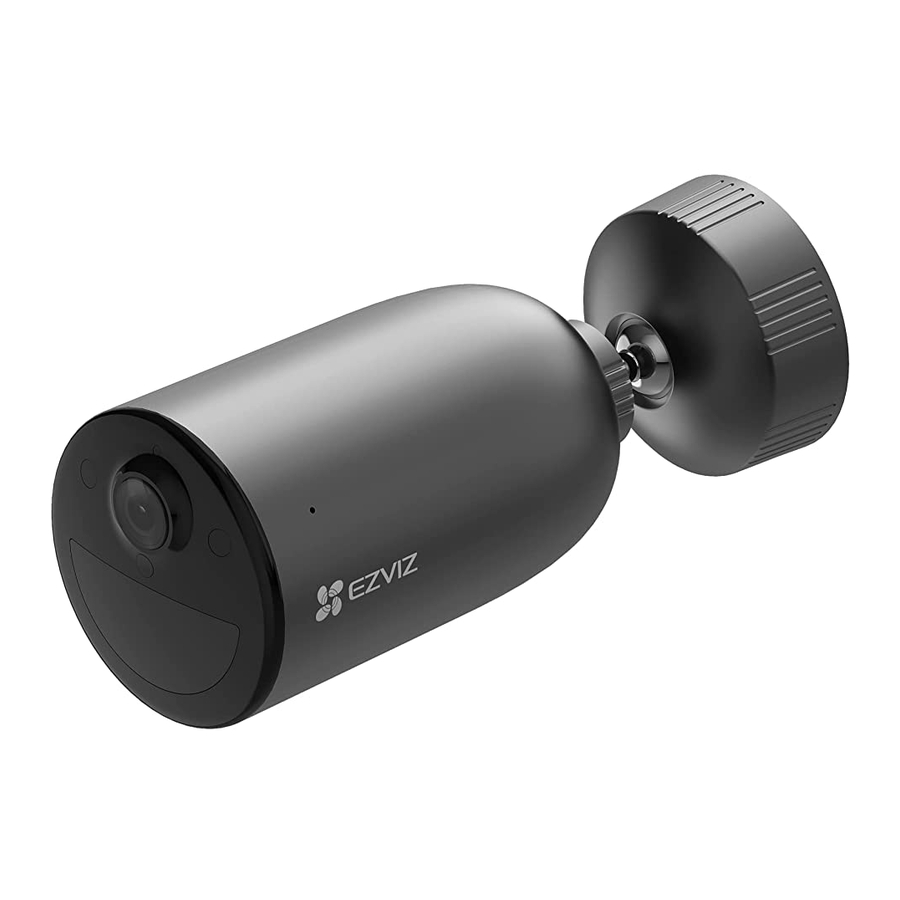

EZVIZ EB3 - Standalone Battery-Powered Security Camera Manual

Overview

Package Contents

Basics

Name	Description
LED Indicator		Solid Blue: Camera starting up or being live viewed in the EZVIZ app.
		Fast-flashing Blue: Camera ready for pairing./Pairing in progress.
		Slow-flashing Blue: Camera working properly.
		Slow-flashing Red: Network exception.
		Fast-flashing Red: Camera exception.
		Solid Green: Camera fully charged.
		Slow-flashing Green: Charging.

Setup

Follow the steps to set your camera:

Get the EZVIZ App

EZVIZ App

If you have already used the app, please make sure that it is the latest version. To find out if an update is available, go to the app store and search for EZVIZ.

Power on the Camera

In the shutdown state, press and hold the RESET button for 2 seconds to power on.

If the camera is out of battery, connect it to power outlet with the power adapter for charging (5V 2A).

• Both of the power adapter (5V 2A) and solar panel need to be purchased separately.
• Remove the camera from the wall before charging.
• Please do not charge the camera when the temperature exceeds 45 degrees or below 0 degrees.
• It is not allowed to charge the camera with power adapter outdoors.
• When charging, the camera will be automatically turned on.
• For better weatherproof, always keep the USB charging port covered with the rubber plug after charging the battery.

Add camera to EZVIZ

If you want to change your camera's Wi-Fi, press and hold the reset button for 4 seconds and repeat the steps above.

Camera Installation

Installation Location

Choose a location with a clear, unblocked field of view and with a good wireless signal to the camera. Please keep the following tips in mind:

• Make sure the wall is strong enough to withstand three times the weight of the camera.
• Recommended installation height: 7-10 ft (2-3 m) above the ground.
• Recommended installation angle: Tilt down 20 degrees.
• Make sure that side-to-side traffic crosses camera's field of view. The camera's motion sensor is much more sensitive to sideto-side movement across its field of view than to movement directly toward or away from the camera.

  Limited by PIR detection technology, the camera may fail to detect motion when environment temperature is close to human body temperature or someone approaches the PIR sensor vertically.

• It is recommended to set detection sensitivity on the EZVIZ app when selecting location. Thus you can verify if motion can be detected in the camera's placement and adjust the sensitivity based on the size and distance of detected object.
  Important Notes on Reducing False Alarms:
  • Do not install the camera under strong light conditions, including sunshine, bright lamp lights, etc.
  • Do not place the camera near any outlets, including the air conditioner vents, humidifier outlets, the heat transfer vents of projectors, etc
  • Do not install the camera at places with strong wind.
  • Do not install the camera in front of a mirror.
  • Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi routers and phones in order to avoid wireless interference.

Install Micro SD Card (Optional)

• Turn up the Cover on the camera.
• Insert a Micro SD card (sold separately) into the card slot as shown in the figure below.
• Place the cover back on.

  After installing the Micro SD card, you should initialize the card in the EZVIZ app before using it.
• In the EZVIZ app, tap the Record List in the Device Settings interface to check the SD card status.
• If the memory card status displays as Uninitialized, tap to initialize it.
  The status will then change to Normal and it can store videos.

Installation Steps

View Your Device

The App interface may change due to version update. Please refer to the actual interface.

Live View

When you launch the EZVIZ app, the device page displays as shown below.
You can view and listen to a live feed, take snapshots or recordings, and choose video definition as needed.

Swipe left and right across the screen to see more icons.

Icon	Description
	Share. Share your device.
	Settings. View or change the device settings.
	Snapshot. Take a snapshot.
	Record. Manually start/stop recording.
	Talk. Tap the icon, and then follow the on-screen instructions to talk to or listen to people in front of the camera.
	Alarm. Sound or flash to deter intruders.
	Definition. Select video resolution from Ultra HD, Hi-Def or Standard.
	Multi-screen Live. Tap to select live view window layout.

Please refer to the actual interface for specific information.

Settings

In the settings page, you can set the parameters of the device.

Parameter	Description
Name	Customize the name of your device.
Working Mode	Record Mode: The camera will keep recording. Please plug the camera in. Performance Mode: One video clip is longer but saves less power. Power Saving Mode: One video clip is shorter but saves more power. Super Power-saving: Sleep Mode is on. Active live view can wake up the camera. Configure Working Mode: Customize the working mode in different periods.
Intelligent Detection	You can customize the detection notification by changing the value of detection sensitivity. The higher sensitivity is, the easier people farther to the camera can be detected. Basic Detection (Required): PIR Infrared Detection: Higher sensitivity, farther detectable distance. Human Shape Detection: Higher sensitivity, farther detectable distance. Devices will alert based on the selected mode, including device-side audible notification and App-side message notification.
Notification	You can set the notification from the device-side and app-side.
Audio	When disabled, both live view and recorded videos will not have audio.
Image	You can select different shooting modes here. Image Style: Original: Default image style. Soft: Lower color saturation. Vivid: Higher color saturation. Night Vision Mode: Color Night Vision: Warm light, can be used as night light and the image is colorful. Black/White Night Vision: IR light, of high invisibility and the image is black and white.
Light	When disabled, the camera indicator will be off. Exceptions: The camera indicator will still be on, when the camera is charging or the camera is exception.
Battery	You can see the battery capacity here.
Cloud Storage	You can subscribe and manage the cloud storage.
Record List	You can see the device storage status, include cloud storage and memory card.
Network	You can see the Wi-Fi that the device has connected to, and you can tap to change to another Wi-Fi. You can also check the Wi-Fi signal strength.
Device Information	You can see the device information here, including the user guide.
Share the Device	Enter an email address or phone number to invite and grant device permissions to a family member or guest.
Delete Device	Tap to delete the camera from your EZVIZ account.

EZVIZ Connect

Use Amazon Alexa

These instructions will enable you to control your EZVIZ devices with Amazon Alexa. If you run into any difficulties during the process, please refer to Troubleshooting.

Before you start, make sure that:

Voice Command
Discover a new smart device via the "Smart Home" menu in the Alexa app or the Alexa Voice Control function. Once the device is found, you can control it with your voice. Speak simple commands to Alexa.
Your device's name for example: "show xxxx camera," can be modified in the EZVIZ app. Every time you change the name of the device, you will need to discover the device again to update the name.

Use Google Assistant

With the Google Assistant, you can activate your EZVIZ device and watch live by speaking Google Assistant voice commands.

The following devices and apps are required:

Troubleshooting

What do I do if Alexa fails to discover my device?
Check if there are any Internet connecting problems.
Try to reboot the smart device and re-discover the device on Alexa.

Why does the device's status show "Offline" on Alexa?

Your wireless connection might have been disconnected. Reboot the smart device and re-discover on Alexa.
Internet access on your router could be unavailable. Check if your router is connected to the Internet and try again.
For details about countries that support the using of Amazon Alexa, see its official website.

FAQ

Q: If the camera is offline on the App, will the video recording be continued?
A: If the camera is powered on but disconnect to the Internet, then local recording will continue but cloud recording will stop. If the camera is powered off, both video recordings will stop.

For additional information about the device, please refer to www.ezviz.com/eu.
