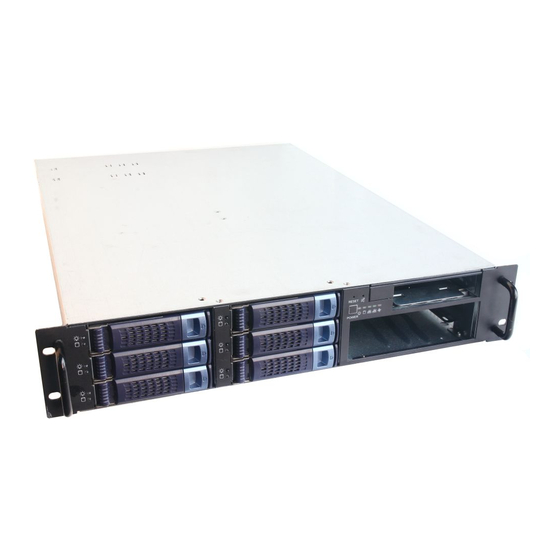

RM21400 Chassis
Installation Reference Guide
Chenbro Micom CO., LTD.
1
15Fl., No. 150, Jian Yi Road, Chung Ho City,
Taipei Hsien, Taiwan, R.O.C.
Tel: +886-2-8226-5500
www.chenbro.com.tw
RM21400 Chassis Installation Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chassis RM21400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Chenbro Chassis RM21400

  • Page 1 RM21400 Chassis Installation Reference Guide Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2-8226-5500 www.chenbro.com.tw RM21400 Chassis Installation Reference Guide...
  • Page 2 Copyright This document is copyrighted, 2002, by Chenbro Micom Co., Ltd. and all rights are reserved. Chenbro Micom Co., Ltd. reserves the right to make improvements to the products described in this document at any time without prior notice. Specifications are thus subject to change without notice. No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Chenbro Micom Co., Ltd.
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 General Information...4 1.1 Specification...4 1.2 Features...4 Chapter 2 SCSI Backplane Installation ...6 2.1 Remove the top cover...6 2.2 Remove the fan bracket...6 2.3 Remove the HDD drawer...7 2.4 Install the SCSI backplane assembly...8 2.5 Connect LED and switch wires ... 11 2.6 Reattach the fan bracket and top cover ...16 RM21400 Chassis Installation Reference Guide Chenbro Micom CO., LTD.
  • Page 4: Chapter 1 General Information

    Chapter 1 General Information 1.1 Specification Model Name Standard M/B Form Factor CPU Support Dimension (D x W x H) HDD Tray Drive Bays Exposed Internal PSU Type Slot Opening Cooling subsystem Indicators Switch Riser card (option) Backplane (option) Construction Net weight Cubic feet Container information...
  • Page 5 Compliance with Dual Intel Xeon or Dual AMD MP Server boards Validated Thermal Solution Optional 4cm fan on rear panel for pulling out heated air efficiently. System Monitoring Buzzer alarm for Fan failure and overheat warning Support Alarm reset Application Strength Designed for high density front end server Ideal for NAS and RAID application and also for general purpose server...
  • Page 6: Chapter 2 Scsi Backplane Installation

    Chapter 2 SCSI Backplane Installation 2.1 Remove the top cover Remove three screws on top cover. Push top cover backward and life off the top cover. 2.2 Remove the fan bracket Remove two screws on left & right side of fan bracket. Lift off the fan bracket from chassis.
  • Page 7: Remove The Hdd Drawer

    2.3 Remove the HDD drawer Push the blue door lock to right-hand side; the handle will be release automatically. Use the handle to pull HDD drawer out a little bit. Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C.
  • Page 8: Install The Scsi Backplane Assembly

    Repeat the same operation for the other 5 drawers. 4 Rear view of HDD trays. 2.4 Install the SCSI backplane assembly Insert the SCSI backplane assembly into chassis. RM21400 Chassis Installation Reference Guide Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C.
  • Page 9 Check whether the SCSI bracket assembly is installed properly. Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2-8226-5500 www.chenbro.com.tw RM21400 Chassis Installation Reference Guide...
  • Page 10 Fasten the screws to fix the SCSI backplane assembly. Push the HDD drawers back to drive trays. RM21400 Chassis Installation Reference Guide Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2-8226-5500 www.chenbro.com.tw...
  • Page 11: Connect Led And Switch Wires

    2.5 Connect LED and switch wires There is one 2 x 9 pin connector on left-bottom side on SC SI backplane. This connector provides several LED and switch connections for devices. The detail pin definition is listed below. Pin 1 Device 1 Power LED - Pin 3 Device 1 Access LED + Pin 4...
  • Page 12 Check the pin number of “Fail LED” connector. Pin 1 Device 1 Power LED - Pin 3 Device 1 Access LED + Pin 4 Pin 5 Device 2 Power LED - Pin 7 Device 2 Access LED + Pin 8 Pin 9 Device 3 Power LED - Pin 11 Device 3 Access LED + Pin 12 Device 3 Access LED -...
  • Page 13 Check the pin numbers of HDD LED connectors. Pin 1 Device 1 Power LED - Pin 3 Device 1 Access LED + Pin 4 Pin 5 Device 2 Power LED - Pin 7 Device 2 Access LED + Pin 8 Pin 9 Device 3 Power LED - Pin 11 Device 3 Access LED + Pin 12 Device 3 Access LED -...
  • Page 14 Plug the LED with red wire to the lowest LED len. 10. Plug the green LED with green wire to the second lowest LED len. Chenbro Micom CO., LTD. 15Fl., No. 150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan, R.O.C. Tel: +886-2-8226-5500 www.chenbro.com.tw RM21400 Chassis Installation Reference Guide...
  • Page 15 11. Repeat step 9 & 10 till all LED are installed properly. 12. Use the same way to install the LED on another SCSI backplane. Till now, the installation of LED is completed. 13. Plug the power connectors to SCSI backplane. Chenbro Micom CO., LTD.
  • Page 16: Reattach The Fan Bracket And Top Cover

    14. Plug the power connectors for another SCSI backplane. 15. Attach the SCSI cable to the unused SCSI connector. 2.6 Reattach the fan bracket and top cover Plug two of the fan power connectors on fan bracket onto SCSI backplane. The left fan connector should be connected to M/B. RM21400 Chassis Installation Reference Guide Chenbro Micom CO., LTD.
  • Page 17 Reattach the fan bracket and arrange the cables properly. Fasten the screws that are detached in section 2.2. Put the top cover back and fasten the screws. Please check section 2.1 for detail locations of screws. The installation of SCSI backplane is finished now.
