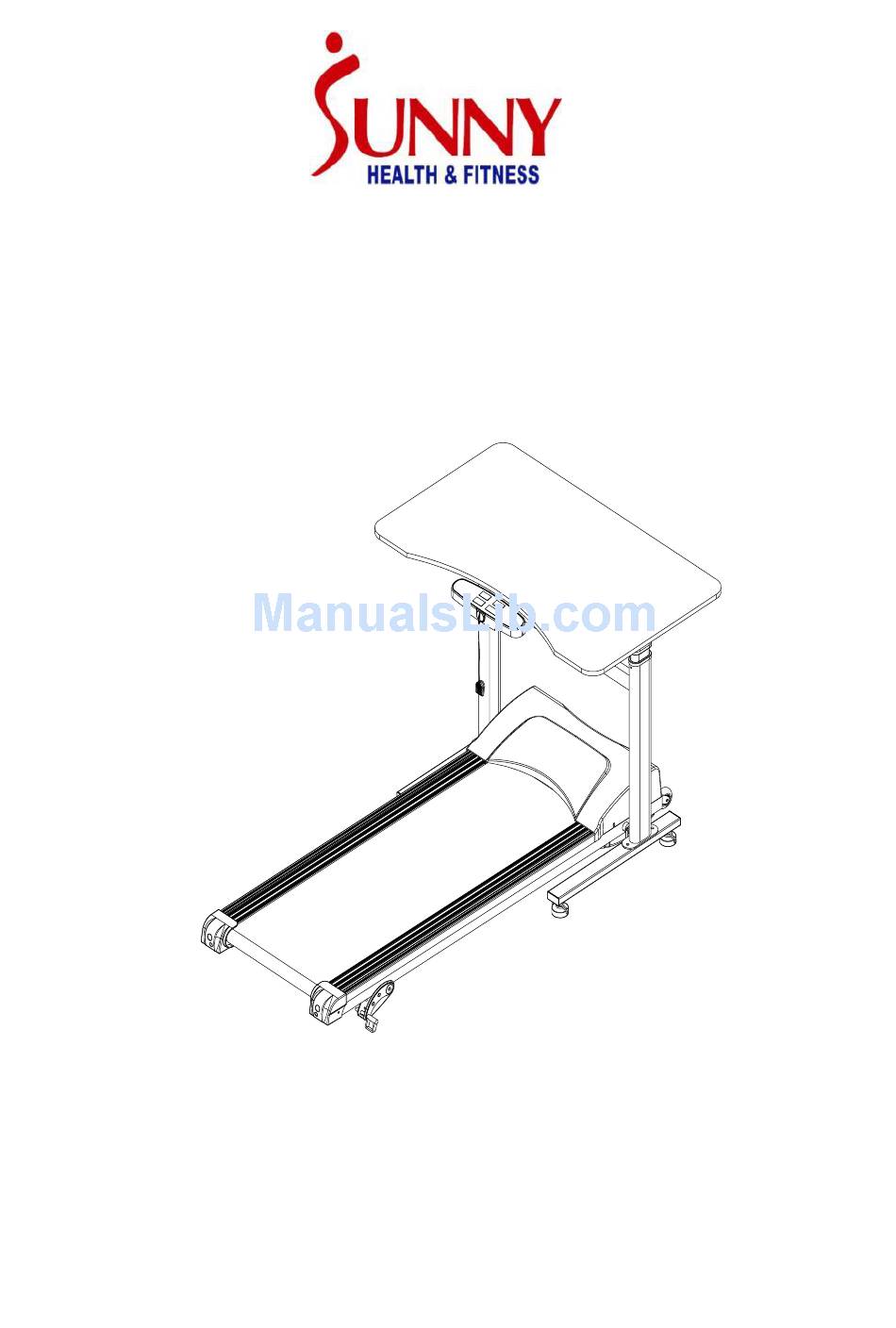

TREADMILL DESK
SF-TD7704
USER MANUAL
IMPORTANT:
Read all instructions carefully before using this product. Retain this manual for future
reference. For customer service, contact support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-TD7704 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny Health & Fitness SF-TD7704

Summary of Contents for Sunny Health & Fitness SF-TD7704

  • Page 1 TREADMILL DESK SF-TD7704 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this manual for future reference. For customer service, contact support@sunnyhealthfitness.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 3 EXPLODED VIEW...

  • Page 4: Parts List

    PARTS LIST ITEM NO. DESCRIPTION ITEM NO. DESCRIPTION Bolt M5*12 Main Frame Bolt ST3.0*8 2 L/R Left & Right Bottom Bar Bottom Upright Bar Nylon Nut M8 Computer Frame Nylon Nut M6 Motor Base Flat Washer D8 Reinforce Tube Of Running Spring Washer D8 Board Support Horizontal Tube...
  • Page 5 Central Spindle Bottom Cover For Console Copper Sheathing Square Tube Plug 38*38 Deep Groove Ball Bearing 6802Z Flat Washer Φ20*Φ23*1 Square Tube Plug 25*50 E Shape Snap Ring Hollow Oval Tube Plug Table Plastic Box 1 Screw ST2.5*7 Plastic Box 2 Screw ST4.2*15 Running Belt (5400-S06) Flat Washer Φ4.5*Φ10*1...
  • Page 6 HARDWARE PACKAGE When you open the carton, you will find the below parts. 2L/R 38&39 ITEM NO. SPECIFICATION NAME Main Frame Safety Key 2L/R Left & Right Bottom Bar 2 pc Upright Assembly 38&39 Tool Box 1 set Table 1 pc Nylon Nut 4 pcs Flat Washer...

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: We recommend having 2 people to do the assembly. Always use proper lifting technique to prevent injuries. Open the carton, take out the parts, and put the Main Frame (No. 1) on level ground. STEP 2: Keeping the wire straight, insert Middle Signal Wire (No.
  • Page 8 Secure the Upright Assembly (No. B) to Left & Right Bottom Bar (No. 2L/R) with 4 Bolts (No. 40), 4 Flat Washers (No. 34) and 4 Nylon Nuts (No. 31). STEP 3: Place the Table (No. C) on the floor. Secure and lock the Upright Assembly (No. B) to the Table (No.
  • Page 9 STEP 4 Hold the Rear Roller (No. 37) and lift the Main Frame (No. 1) until the wheels are able to move on the ground. Move the Main Frame (No. 1) under the Table (No. C), and make sure the knobs on the sides of the Main Frame (No.
  • Page 10 HOW TO MOVE THE TREADMILL Disconnect Middle Incline Power Cable (No. 109) and Bottom Incline Power Cable (No. 110). Disconnect Middle Signal Wire (No. 108) with Bottom Signal Line (No. 107). Hold the Rear Roller (No. 37) and lift the Main Frame (No. 1) until the wheels are able to move on the ground.

  • Page 11: Grounding Methods

    GROUNDING METHODS This product power must be grounded. Should the treadmill malfunction or breakdown, grounding provides a path with the least resistance for electric current to reduce the risk of electric shock. This product is equipped with a plug that has an equipment-grounding conductor and a grounding plug.
  • Page 12 MAINTENANCE AND ADJUSTMENTS Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. Warning: Always unplug the treadmill from the electrical outlet before removing the motor cover. At least once a year remove the motor cover and vacuum under the motor cover.
  • Page 13 CENTERING THE RUNNING BELT Place the treadmill on level ground and set it at 6-8 mph to check if the Running Belt drifts. If the belt drifts to the right, turn off the switch first, turn the right adjusting bolt 1/4 turn clockwise, then turn the left adjusting bolt 1/4 turn counter-clockwise until the belt is centered.
  • Page 14 COMPUTER OPERATION GUIDE I. START Display will countdown 3 seconds before starting. II. SAFTY KEY FUNCTION If you remove the safety key, the meter will show “---” and beep. The treadmill will stop. Insert the safety key back, the data will be all cleared. III.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Error Code Error Description Solution Check if the computer and control board wire are connected. Message failure between Check if the wires are damaged. If they are, change the wire. E01/E10 Check if IC on bottom control board or computer is damaged. If computer and control board they are ok, change the control board or computer.
