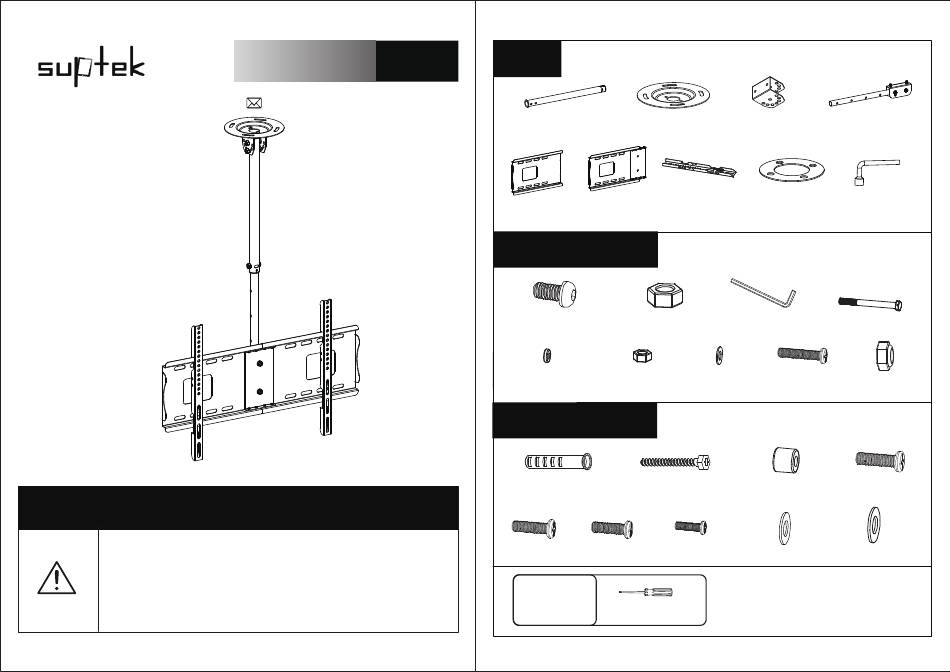

User Manual
after-sales@suptekmount.com
Warning!
1.Please do not exceed the maximum load. Overweight may cause
damage or drop of equipment.
2.Fits wooden wall, brick wall or concrete wall. Do not mount on
drywall.
3.Walls must be able to carry 5 times the weight (total weight of the TV
plus wall mount).
4.Please read the installation instructions carefully, we are not respon
sible for any damage or injury caused by improper, assembly or use!
Any question, please contact our customer service.
Parts
MC5602
a-Outer pole (1)
e1-VESA plate (1) e2-VESA plate (1) f-Hook (2) g-Silicone pad (1) h-Wrench S13 (1)
Screw package1
A-M6X12 (2)
E-M8X20X4Spacer (4) F-M8 Nut (3) G-Ø8 Washer (5) H-M8X45 (1) I-M8 Slef-locking
Screw package2
A-Plastic anchor (4)
E-M6X25 (4)
Tools needed
(not included)
b-Wall plate (1)
c-Junction plate (1) d-Inner pole (1)
B-M6 Nut (2)
C-M4 Allen key (1)
B-Slef-tapping screw (4) C-Ø8 Spacer (4)
F-M5X25 (4)
G-M4X25 (4)
H-Ø5 Washer (4)
Screwdriver
D-M8X50 (2)
nut (2)
D-M8X25 (4)
I-Ø6 Washer (4)
Advertisement
Related Manuals for Suptek MC5602
Summary of Contents for Suptek MC5602
- Page 1 Parts User Manual MC5602 after-sales@suptekmount.com a-Outer pole (1) b-Wall plate (1) c-Junction plate (1) d-Inner pole (1) e1-VESA plate (1) e2-VESA plate (1) f-Hook (2) g-Silicone pad (1) h-Wrench S13 (1) Screw package1 A-M6X12 (2) B-M6 Nut (2) C-M4 Allen key (1) D-M8X50 (2) E-M8X20X4Spacer (4) F-M8 Nut (3) G-Ø8 Washer (5) H-M8X45 (1) I-M8 Slef-locking...
- Page 2 Step 1: Connect wall plate and junction plate Step 2: Install wall plate to wall Wooden wall Solid wall Option A: ±90° tilt install Option B: 360° swivel install Draw point Draw point and punch and punch Ø10mm Ø5.5mm Punch holes in the stud. Install bolts.
