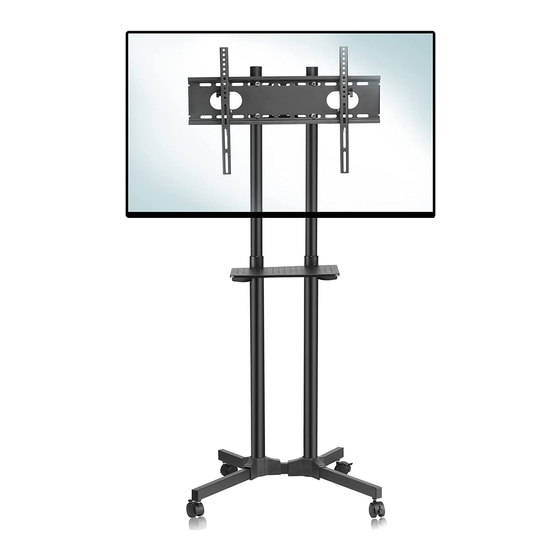

Suptek ML5074 Installation Manual

INSTALLATION MANUAL
ML5074-2
WARNING!
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before
beginning.
●If you do not understand the instructions or have any concerns or
questions, please contact a qualified local installer.
●Do not install or assemble if the product or hardware is damaged or
missing. If you require replacement parts, please contact your local
distributor for assistance.
●This product fits most 32"-75" LCD/plasma screen; load capacity up
to 165 lbs/75kg; lower shelf max load: 10 lbs/4.5kg.
●Do not use this product for anything other than the original purpose.
●This product contains moving parts, please use with caution.
165lbs
32"-75"
（ 75KG ）

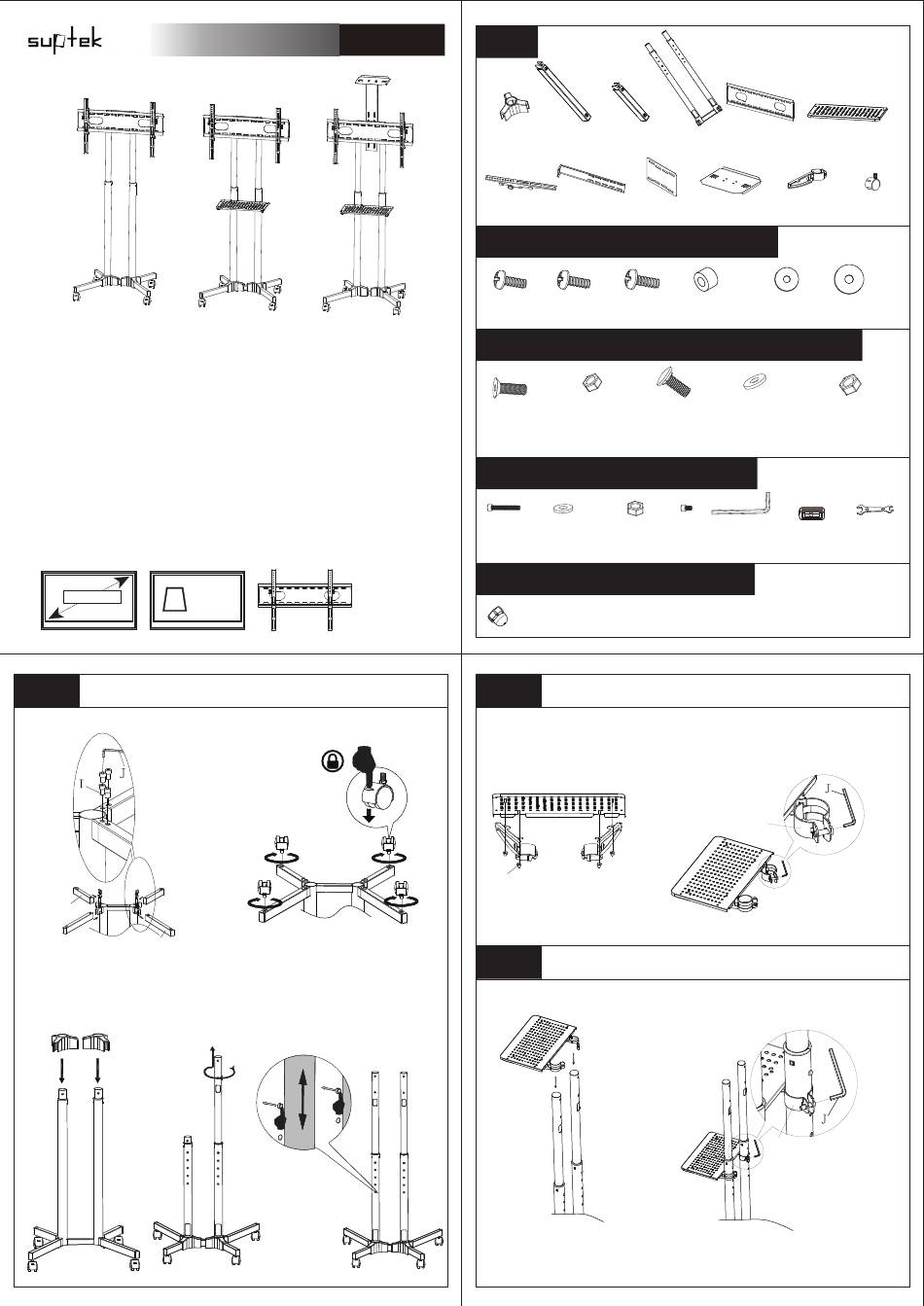

Step 1

Installation of base and column and adjustment of height

1.1
Short square tube
Long square tube
Loosen four screws in four square
tubes and install it with screw I
as shown.
1.3
ML5074
ML5074-3 ML5074
MAX 600x400
VESA Pattern
1.2
1.4 1.5

Parts

Plastic fixing Long square Short square
cover X2 tube x2 tube x2
Hook x2 Connecting plate Plate for fixing
for upper shelf x1 column x1
Screw package (for TV installation)
M5x20 (x4) M6x20 (x4) M8x20 (x4)
(G1) (H1)
( G2)
Screw package (for upper shelf installation)
A:M5x10 B:M5 Nut C:M8x20
(X4) (X4)
Screw package (for floor stand)
φ φ
F:M8x60 G: 8x 16x1.5 H:M8 Nut
(X4) Washer (X4)
(X8)
Screw package (for lower shelf)
M:M5 Cap nut (X4)

Installation of lower shelf

Step 2
2.1
M

Connecting column and lower shelf

Step 3
3.1
Combine lower shelf with column.
Column x1 Panel x1 Lower Shelf x1
Upper shelf x1 Holder for
lower shelf x2
D8 Higher D5 Washer(x4) D6 Washer(x4)
spacer (x4) (F)
(H2)
D: φ 8x φ 16x1.5 Washer E:M8 Nut
(X4)
(X4)
I:M8x12 J:S6 allen key K:bubble level
(X4) (X1) (X1)
2.2
clamping piece
Unscrew the screw
anticlockwise with
allen key, then you
get 2 clamping pieces.
3.2
clamping piece
Put lower shelf on the
proper height. Screw 2
clamping pieces and tighten
it clockwise with allen key.
Castor x4
(O)
(X4)
L:wrench
(X1)
