INSTALLATION MANUAL
WARNING!
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before
beginning.
●If you do not understand the instructions or have any concerns or
questions, please contact a qualified local installer.
●Do not install or assemble if the product or hardware is damaged or
missing. If you require replacement parts, please contact your local
distributor for assistance.
●This product fits most 32"-75" LCD/plasma screen; load capacity up
to 165 lbs/75kg; lower shelf max load: 10 lbs/4.5kg.
●Do not use this product for anything other than the original purpose.
●This product contains moving parts, please use with caution.

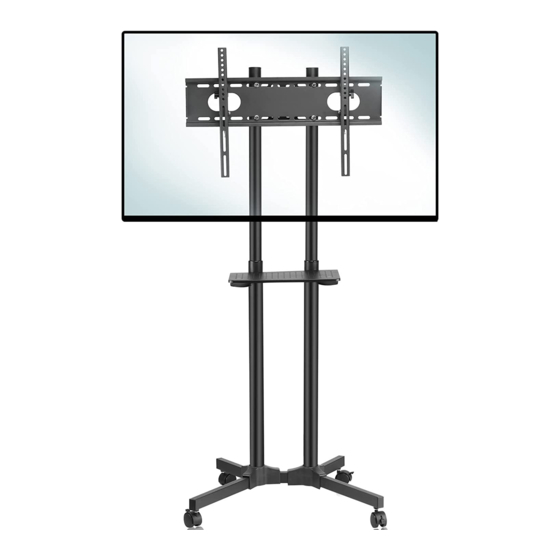

32"-75"
Step 1
Base installation
1.1
Insert four square tubes
into the base as shown
1.3
ML5074-3
MAX 600x400
165lbs
（ 75KG ）
VESA Pattern
J
I
1.2
Tighten screw I with wrench J
Parts
Plastic fixing cover X2 Long square tube x2
Panel x1 Base x1
Plate for fixing column x1 Holder for lower shelf x2
Screw package (for TV installation)
M5x20 (x4) M6x20 (x4) M8x20 (x4)
(G1) (H1)
( G2)
Screw package (for floor stand)
φ φ
F:M8x60 G: 8x 16x1.5 H:M8 Nut
(X6) Washer (X4)
(X10)
Screw package (for lower shelf )
M:M5 Cap nut (X4)
Step 2
Installation of base and column and the adjustment of height
2.1
2.3 2.4
Short square tube x2 Column x1
Lower Shelf x1 Hook x2
Castor x4
D8 Higher D5 Washer(x4) D6 Washer(x4)
spacer (x4) (F)
(H2)
I:M8x12 J:S6 allen key K:bubble level
(X8) (X1) (X1)
2.2
Tighten screw F with wrench J as shown.
2.5
(O)
L:wrench
(X1)
