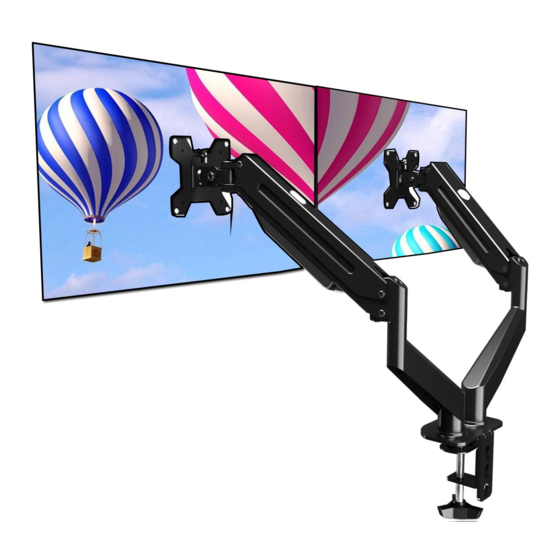

Suptek MD8SP Installation Manual

MD8SP
Hold monitors: 17"-27"
Weight capacity: 2.2-13.2 lbs (1-6kg)
Compatible VESA patterns: 75x75mm/100x100mm
WARNING!
Incorrect installation may cause loss of life, personal injury and
damage of property. Please read the following information before
installation.
If you do not understand the manual or meet any problem, please
contact your local qualified installation person.
If any of the parts are damaged or lost, do not install it. If you need
to exchange parts, please contact retailer.
This item holds 17" - 27" LCD monitors less than 13.2lbs weight.
This item is simple and easy to install on a desk or disassemble.
To ensure security, the capacity of the desk need to be over 3 times
of the weight of all loading (include mount, monitor and its
accessories).
Do not use this item for any purpose or in any configuration not
explicitly specified in this instruction.
For safety, be careful with the slideable parts of the item.
Be careful with the wires when installation of the monitor.
We are not responsible for: reformed or incorrect installation,
beyond the capacity, damage during usage.

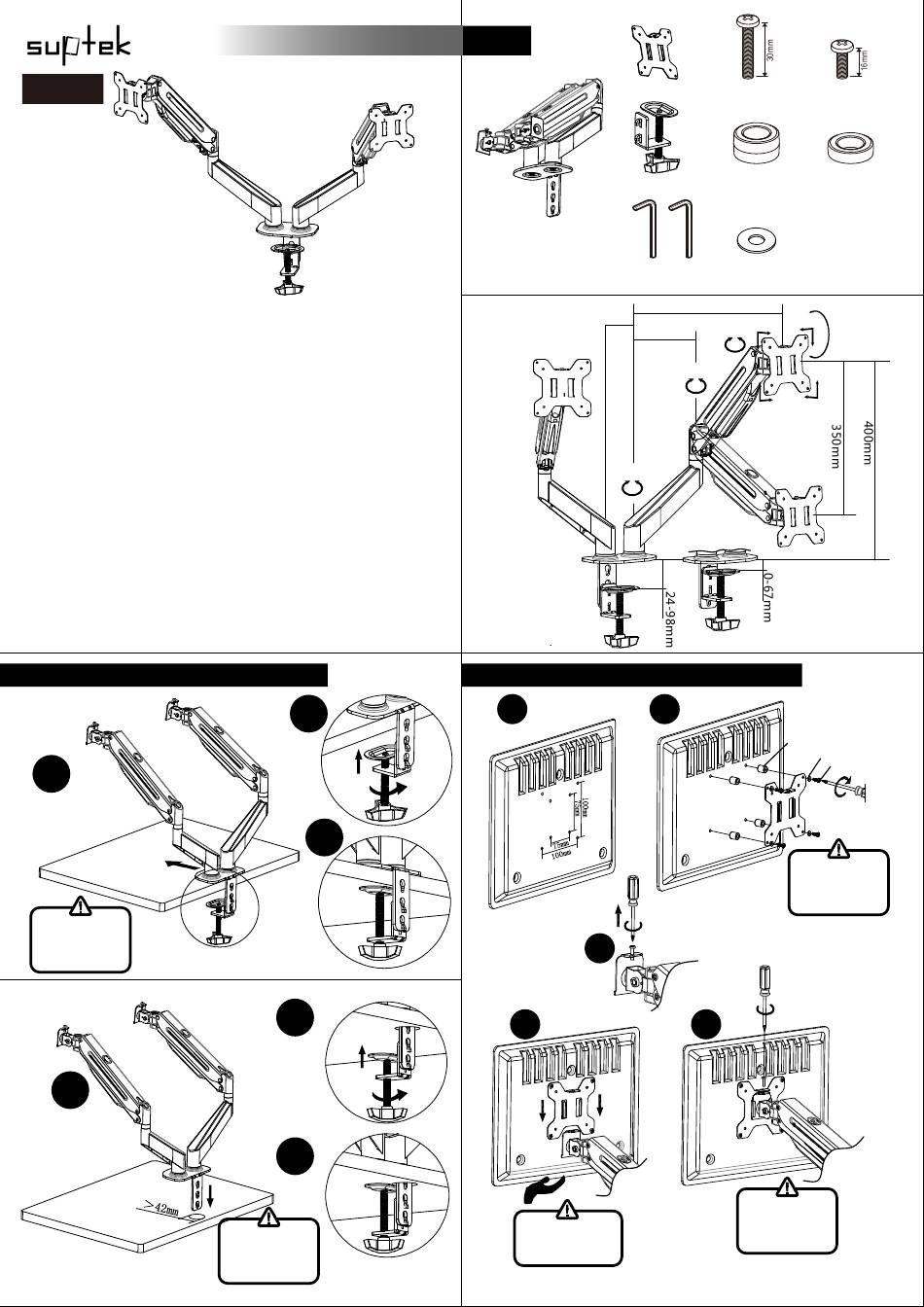

A: Install the main mount on a desk

A1: Clamp installation

A1.1
WARNING:
Make sure the
screws are
tightened.

A2: Grommet installation

A2.1
INSTALLATION MANUAL
A1.2
A1.3
A2.2
A2.3
WARNING:
Make sure the
screws are
tightened.

Parts

VESA plate x2
Clamp x1
Main mount x1
M4
S4/S5 wrench
70mm
160mm
±180°

B: Install the monitor on the main mount

B1
unscrew the pre-positioned screw
B3
B4
WARNING:
Hold the monitor
in case of falling.
G1:M4x30 (x8) G2:M4x12(x8)
H1:(x8)
M5
F:Φ4x12(x8)
405mm
±90°
±180°
360°
B2
H1 or H2
F
WARNING:
Make sure the
screws are
tightened.
tighten the screw
B5
WARNING:
Make sure the
screws are
tightened.
H2:(x8)
±80°
G1 or G2
