Suptek TS004 Instruction Manual

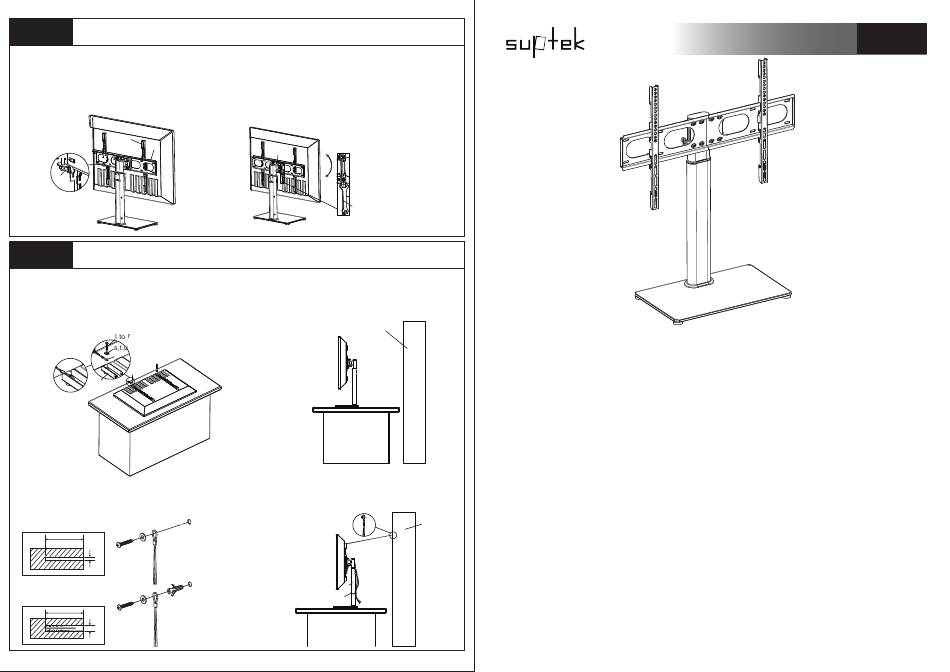

Step 5 Attaching TV To TV Plate
1. Select your preferred viewing height and carefully hold
the TV assembled with Monitor Bracket-b onto the assem-
bled TV Plate-a2, insert the Buckle-z to the beneath HOOK
between TV Plate-a2 and Monitor Bracket-b to tighten up.
Insert
buckle
into hook
b
a2
Z
Step 6 Attaching the Anti-tip Cable to the TV
Keep your child safe, solid steel anti-tip cables prevent huge unsecured TV or big cabinet
from tipping over injuring kids. Recommended to be mounted to Wood studs, concrete or
Brick walls. Heavy duty ensuring safety, wear-resistance and durability. Please get back to
Step 4 and place the 2 holes of the Anti-tip Cable Kit-y between the top Monitor Bracket-b
and metal bolt washer before you tighten them up to TV mounting holes.
y
b
Mount the other end single hole to your
wall using Anti-tip Cable Kit-y drill suitable
hole size according to your wall material.
Wood Stud Wall
45mm
3.8mm
Concrete&Brick
Wall
50mm
8mm
2. Swivel Headstock-a1 set up
with tilt +15/-3 degree, use
Wrench-d4 to loose/tight the
beneath screw to set your
preferred angle.
+15°
a1
Unscrew the nuts
with wrench, adjust
-3°
the tilt angle up and
down.
d4
wall
Tie up the Nylon Cable
Tie-z1 to Support
Column-d1 for cable
management.
d1
z1
4
after-sales@suptekmount.com
•Carefully open the carton, remove contents and lay out on cardboard or
other protective surface to avoid damage.
•Check package contents against the Supplied Parts List in the next page to
assure that all components were received undamaged. Do not use damaged
or defective parts.
•Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
begining the installation, and carefully follow all instructions contained
herein. Use proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
•If you don' t understand these directions or have any doubt about the safty of
Mur
the installation.
•If you are uncertain about the nature of your wall, consult a qualified installa-
tion contractor.
Do not use this product for any purpose or in any configuration not explicitly
specified in this instruction. We hereby disclaim any and all liability for injury
or damage arising from incorrect assembly, incorrect mounting, or incorrect
use of this product.
INSTALLATION MANUAL
UNPACKING INSTRUCTIONS
1
TS004
