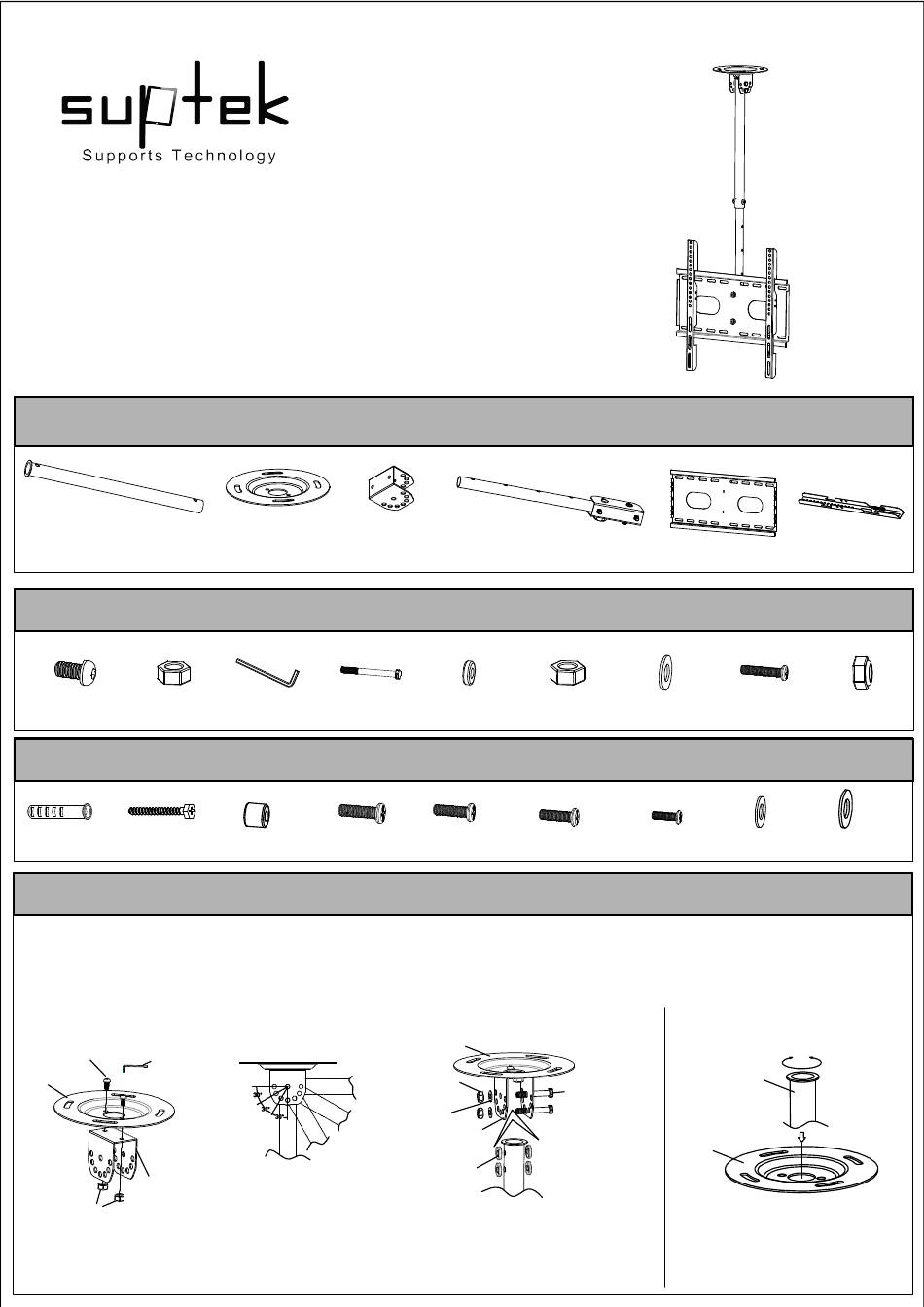

Suptek MC4602 Quick Start Manual

Model Number：MC4602
Display Size：up to 55＂
Maximum Load：45KG
Mounting Pattern：400mmX400mm
Tilt Range：15°
Profile：580mm-900mm
Product Components
Outer Pole*1
Screw Package 1
A-M6*12 Semicircle B-M6 Nut*2
Hexagon*2
Screw Package 2
A-Plastic B-Drilling
Anchors*4 Screw*4
Installation Steps
The First Step:Pedestal And Outer Pole Connection(One way is for ±90°Front and rear adjustment;Another way is for
360°rotation adjustment; Customers can choose the way which is needed)
The way of Connection 1
Use Screw Package 1
A-M6*12
Semicircle Hexagon
C-M4 Allen Key
Pedestal
Junction Plate
B-M6 Nut
The assembly of the Pedestal
and the Junction Plate is shown
in the diagram.
Pedestal*1 Junction Plate*1
C-M4 Allen Key*1 D-M8*50 Outer
Hexagonal Screw*2
C- Φ8 Spacer*4 D-M8*25 Screw*4
G-Φ8Washer
Customers can choose
installation angle which
is needed.
Inner Pole Connector*1
E-M8*20*4 F-M8 Nut*3
Spacer*4
E-M6*25 Screw*4 F-M5*25 Screw*4
Use Screw Package 1
Pedestal
F-M8 Nut
D-M8*50 Outer
Hexagonal Screw
Junction Plate
E-M8*20*4
Spacer
The assembly of the Outer Pole and the
Junction Plate is shown in the diagram.
This way of connection is for ± 90° Front
and rear adjustment.
faceplate*1
G-Φ8Washer*5 H-M8*45 Screw*1
G-M4*25 Screw*4 H-Φ5Washer*4
The way of Connection 2
Outer Pole
Pedestal
Insert the outer pole into the center hole
of the pedestal as shown in the diagram.
This way of connection is for 360°rotation
adjustment.
Hang hook*2
I-M8
Locking Nut*2
I-Φ6Washer*4
360°
