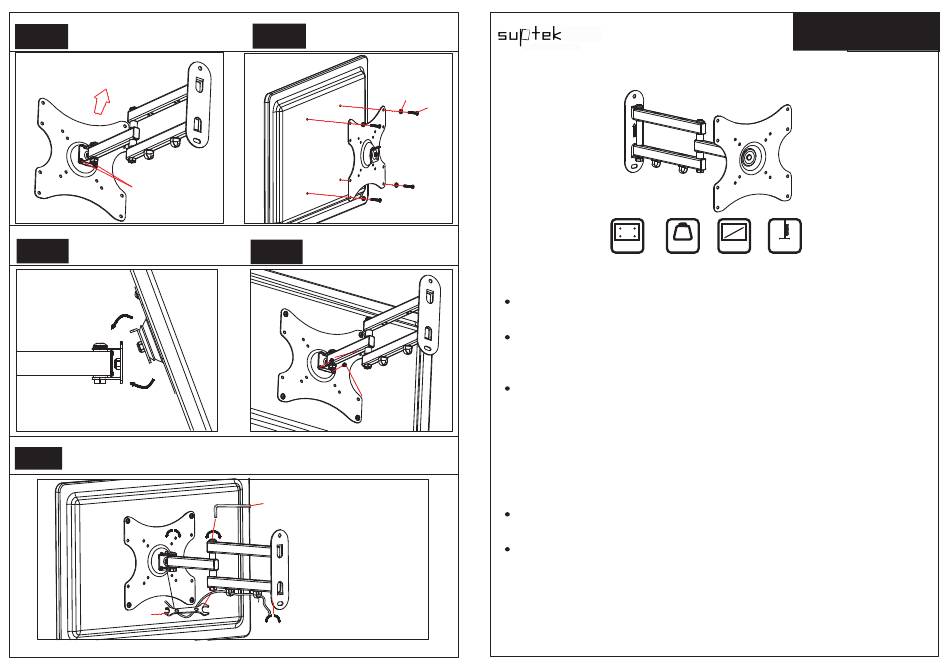

Suptek MA2770-3260 Installation Instruction

Step 2 Removal of the panel
2：Then lift the panel
up by hand
1：Remove the screw
Step 4 Panel installation
Hang the panel into
the head-stock
Step 6 The cable arrangement and the adjustment of the joint tightness
I
Step 3 Install the TV
K
D
E
F
G
Step 5 Fix the panel
Reinstall the
screw removed
in step 2
J
Hold the left and right sides of the TV,
can adjust the rotation about the TV.
If the rotation adjustment is too loose
or too tight, use wrench (I) to tighten
or loosen the nut on the figure shown
to control the tightness of left and right
rotation adjustment.
Insert the two wire clips (H) into the
hole in the lower side of the square
tube to complete the routing. Use
H
the wrench (J) and wrench (I) to
adjust the tightness of the joint.
Installation Instruction
MAX
75X75- 25kg
200X200 (55lbs)
VESA Pattern Bearing Range Applicable Size
UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on cardboard or
other protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page
to assure that all components were received undamaged. Do not use
damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
beginning the installation, and carefully follow all instructions contained
herein. Use proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
If you don't understand these directions or have any doubts about the
safety of the installation.
If you are uncertain about the nature of your wall, consult a qualified
installation contractor.
Do not use this product for any purpose or in any configuration not
explicitly specified in this instruction. We hereby disclaims any and all
liability for injury or damage arising from incorrect assembly, incorrect
mounting, or incorrect use of this product.
MA2770-3260
"
9-35CM
13" - 42"
(3.5"-13.8")
Profile
