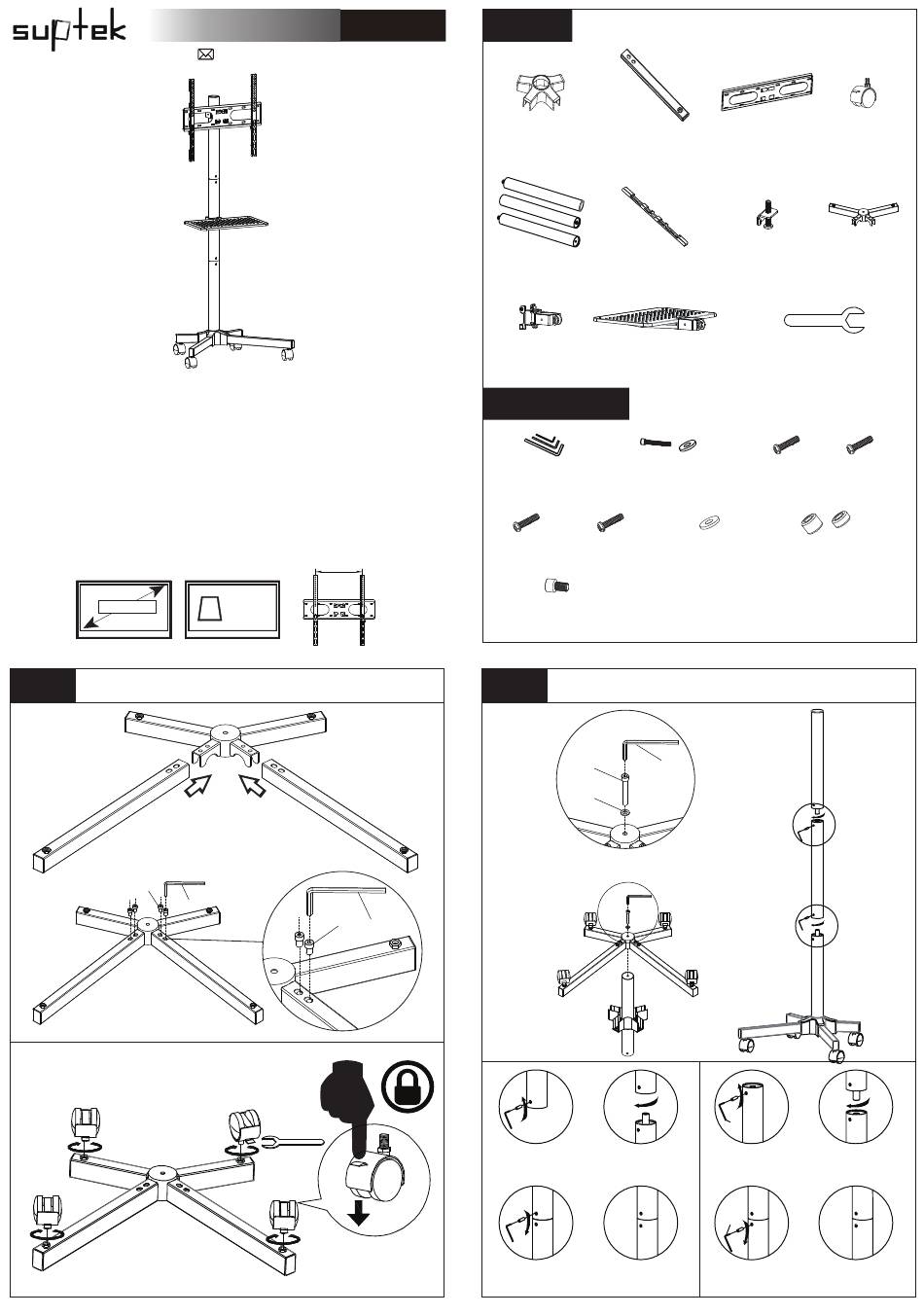

INSTALLATION INSTRUCTION
WARNING!
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before beginning.
If you do not understand the instructions or have any concerns or questions,
please contact a qualified local installer.
Do not install or assemble if the product or hardware is damaged or missing. If you
require replacement parts, please contact your local distributor for assistance.
This product fits most 21"-60" LCD/plasma screen; load capacity up to 77lbs/35kg.
Do not use this product for anything other than the original purpose.
This product contains moving parts, please use with caution.
21"-60"
Step 1
Install the base
1.1
I
A
1.2
ML55B
after-sales@suptekmount.com
MAX:400X400MM
77LBS
(35KG)
VESA Pattern
I A
Part List
Plastic fixing cover *1
Long square tube*2
Column*3
Hook*2
Head locking bracket*1 Tray locking bracket*1
Screw Package
A: S3/S5/S6 Allen key
B:M8*60 Inner-hexagon *1
8*16*1 Washer *1
E:M6*25*4
F:M8*25*4
G:6*12*1 Washer*4
I: M8x12 Inner-hexagon*4
Step 2
Install plastic fixing cover and column and base
B
B
2.1
A
2.2.1 Loosen the screw
2.2.2 Tighten the
on the column with
2 columns
wrench A
A
2.2.3 Re-insert the
2.2.4 Finished
screw with wrench A
Panel*1
Locking piece*2
Welded base *1
Wrench*1
C:M4*20*4
D:M5*25*4
H:8*14*11 Spacer*4
8*14*6 Spacer*4
A
A
2.3.1 Loosen the screw
2.3.2 Tighten the
on the column with
2 columns
wrench A
A
2.3.3 Re-insert the
2.3.4 Finished
screw with wrench A
Caster*4
2.3
2.2
