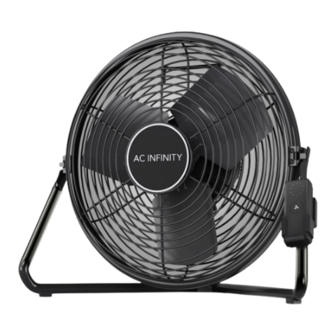

- Page 1 CLOUDLIFT WALL AND FLOOR CIRCULATOR FAN USER MANUAL USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE CL2212X2 PRODUCT MODEL UPC-A CLOUDLIFT S12 AC-WFS12 819137022263 CLOUDLIFT S14 AC-WFS14 819137022430 CLOUDLIFT S20 AC-WFS20 819137022485 CLOUDLIFT S24 AC-WFS24 819137022492...
-
Page 5: Table Of Contents
Powering and Setup ..............Page 11 Controller Mounting ............... Page 13 Platform ................Page 15 Compatibility ................ Page 16 Adding More Devices ..............Page 17 Programming ................. Page 18 Other AC Infinity Products ............. Page 19 Warranty ..................Page 20... -
Page 6: Product Warning
PRODUCT WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: Ensure your power source conforms to the electrical requirements of this product. Check your local code restrictions for additional safety measures that may be needed for a proper code compliant installation. -
Page 7: Key Features
KEY FEATURES EC MOTOR RUGGED BUILD WIDER COVERAGE Next generation motor runs Black powder-coated steel fan Pivoting fan head on the quieter, is more energy guard supported by a rigid floor floor or wall-mounted creates efficient, and has a longer stand cages the fan blades for dynamic circulation to direct lifespan than AC motors. -
Page 8: Product Contents
PRODUCT CONTENTS INDUSTRIAL WIRELESS WIRELESS WALL FAN CONTROLLER RECEIVER (x1) (x1) (x1) WALL-HANG BATTERIES CORD, 20 IN. CORD, 10 FT. BRACKET (x2) (x1) (x1) (x1) WOOD SCREWS WALL CONTROLLER WIRE (WALL HANG) ANCHOR SCREW SET TIES (x2) (x2) (x2) (x1) -
Page 9: Installation
INSTALLATION STEP 1 Mark the drilling holes in your chosen mounting location using the wall-hang bracket. Make sure your chosen mounting location is structurally sound and free of obstruction. STEP 2 Drill the two holes into your marked locations and apply the wall anchors. - Page 10 INSTALLATION STEP 3 Replace the bracket and drill the screws into your wall to secure it. STEP 4 Pull the stand vertically and hook the fan onto the bracket.
-
Page 11: Powering And Setup
POWERING AND SETUP STEP 1 Use one of the included UIS M-M extension cords to connect the fan to the wireless receiver. You may magnetically mount the receiver in the controller slot. STEP 2 Insert the two AAA batteries into the wireless controller. - Page 12 POWERING AND SETUP STEP 3 Adjust the sliders on the controller and receiver so their numbers match. Close the battery door when you are finished. The receiver’s indicator light will flash when connected. Any number of devices may be controlled using the same controller, as long as the fans’...
-
Page 13: Controller Mounting
CONTROLLER MOUNTING STEP 1 — WALL MOUNTING Locate a spot free of obstruction and secure the anchor into your wall. Twist the wood screw into the anchors. STEP 2 — WALL MOUNTING Use the mounting hole located on the back of the controller and receiver for wall mount. - Page 14 CONTROLLER MOUNTING MAGNET MOUNTING Mount the controller on a steel surface using the magnets located next to the mounting hole. PLATE MOUNTING* Screw the controller plate bolts into the slot or mounting holes at the upper half of the plate. Hang the controller and receiver by the bolts using the holes on the backsides.
-
Page 15: Uis Tm Platform
By creating this fully integrated system, you can power and program all your devices together or separately for optimized grow tent management. Your grow system can be regulated using your controller hub or remotely on the AC Infinity app (paired with compatible controllers), where you will have access to automation programming and climate data. -
Page 16: Uis Tm Compatibility
The expansion splitter will allow you to connect 4 devices with a single port and can support additional splitters to create up to 3 tiers of expansion ports (up to 64 units supported with the use of 20 splitters). Intended for exclusive use with AC Infinity controllers with UIS ports. UIS M - F... -
Page 17: Adding More Devices
ADDING MORE DEVICES DAISY-CHAINING Each of the included controller’s ports can support up to 20 devices using a daisy-chain adapter (not included). All devices must be from the same series but can be of differing sizes. Plug the male end of the daisy-chain adapter into your device. Connect your UIS controller to the daisy-chain adapter’s INPUT port using a M-M connector cord. -
Page 18: Programming
PROGRAMMING LIGHT INDICATOR Features ten LED lights to signify the current level. The LEDs will briefly light up before shutting off. Pressing the button will light up the LEDs. Press the button will turn your device on at level 1. Continue pressing it to cycle through the ten device levels. -
Page 19: Other Ac Infinity Products
AC INFINITY PRODUCTS Inline Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures. -
Page 20: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 21 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
- Page 24 www.acinfinity.com...
