Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENT
LIQUID TEMPERATURE RANGE
© 2018, WAYNE/Scott Fetzer Company.
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
120 V, 60 Hz
Single Phase
1/2 HP ..................(VIP50)
1/5 HP ...................(VIP15)
15 A (minimum)
40° F- 120° F
PERFORMANCE
Model
HP
Discharge Head
VIP50
1/2
VIP15
1/5

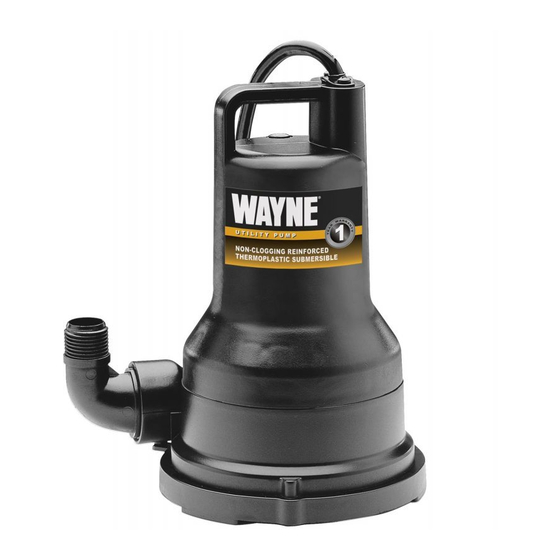

Submersible Multi-Use Pumps
MOTOR HOUSING
MOTOR SHAFT
IMPELLER
VOLUTE
PUMP DISCHARGE
0 ft.
5 ft.
10 ft.
Gal/hr
2600
2160
1680
Gal/hr
2050
1740
1350
www.waynepumps.com
VIP Series
CONSTRUCTION
Thermoplastic
Stainless Steel
Thermoplastic
Thermoplastic
1-1/4 in. NPT or 3/4 in. Hose Threads
15 ft.
20 ft.
1080
300
880
-
620007W-001 C 02/19
