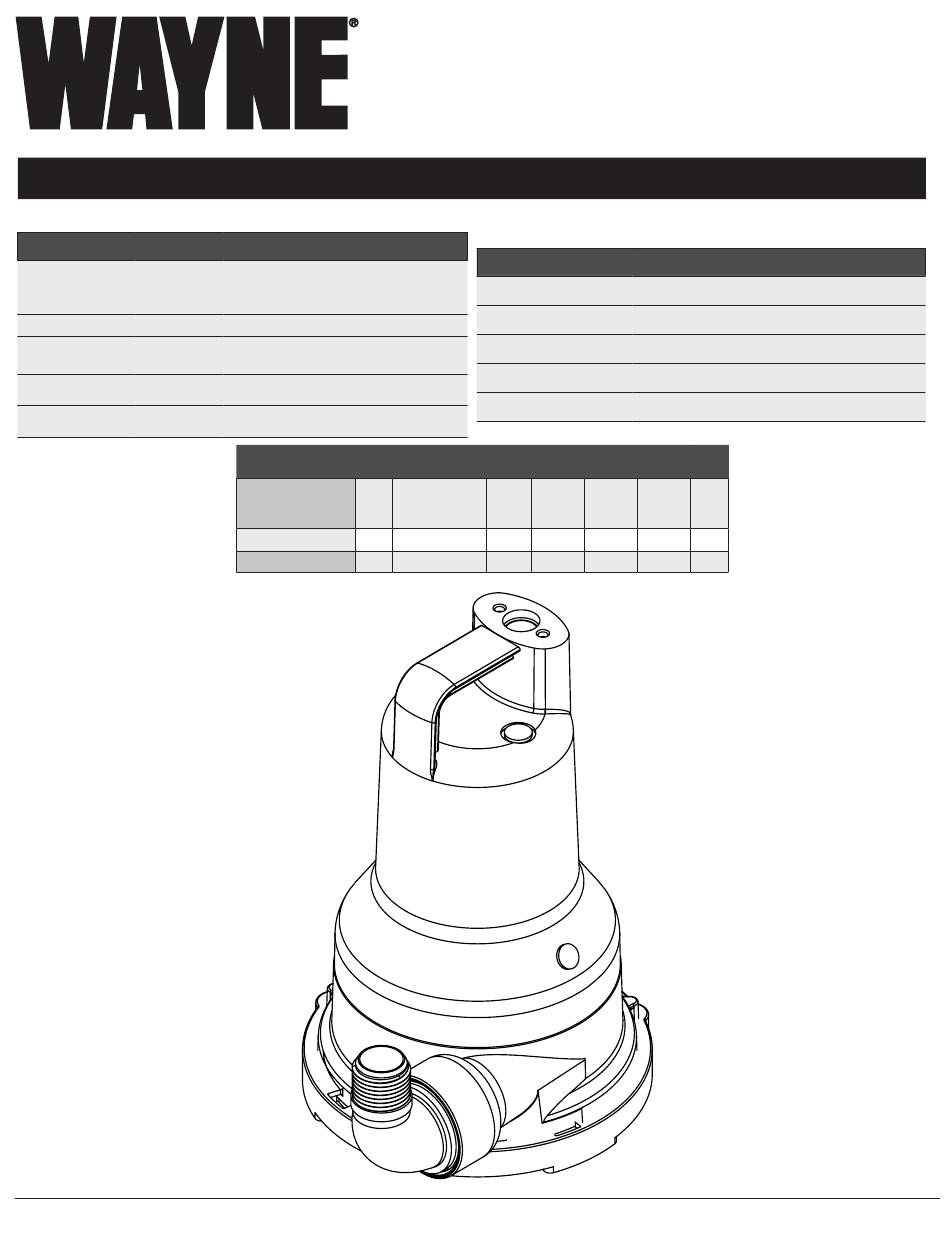

Operating Instructions and Parts Manual
SPECIFICATIONS
POWER SUPPLY REQUIREMENTS
MOTOR
HORSEPOWER
CIRCUIT REQUIREMENT
LIQUID TEMPERATURE RANGE
© 2018, WAYNE/Scott Fetzer Company.
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
120 V, 60 Hz
Single Phase
1/2 HP ..................(VIP50)
1/5 HP ...................(VIP15)
15 A (minimum)
40° F- 120° F
PERFORMANCE
Model
HP
Discharge Head
VIP50
1/2
VIP15
1/5
Submersible Multi-Use Pumps
MOTOR HOUSING
MOTOR SHAFT
IMPELLER
VOLUTE
PUMP DISCHARGE
0 ft.
5 ft.
10 ft.
Gal/hr
2600
2160
1680
Gal/hr
2050
1740
1350
www.waynepumps.com
VIP Series
CONSTRUCTION
Thermoplastic
Stainless Steel
Thermoplastic
Thermoplastic
1-1/4 in. NPT or 3/4 in. Hose Threads
15 ft.
20 ft.
1080
300
880
-
620007W-001 C 02/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wayne VIP15
Summary of Contents for Wayne VIP15
- Page 1 LIQUID TEMPERATURE RANGE 40° F- 120° F PERFORMANCE Model Discharge Head 0 ft. 5 ft. 10 ft. 15 ft. 20 ft. VIP50 Gal/hr 2600 2160 1680 1080 VIP15 Gal/hr 2050 1740 1350 © 2018, WAYNE/Scott Fetzer Company. www.waynepumps.com 620007W-001 C 02/19...
-
Page 2: General Safety Information
Operating Instructions and Parts Manual DESCRIPTION GENERAL SAFETY INFORMATION This portable, submersible multi-use pump is designed and in tend ed for CALIFORNIA PROPOSITION 65 non-automatic use in water. The units are equipped with an 8-ft. 3-prong ground ing-type power cord. The motor is oil filled and sealed for cooler running and designed to operate under water. -
Page 3: Personal Safety
Operating Instructions and Parts Manual VIP Series GENERAL SAFETY INFORMATION (CONT’D) This equipment is only for use on 120 volt (single-phase) and is equipped with an ap proved 3-conduc tor cord and Disconnect power before servicing. If the power 3-prong, grounding-type plug. disconnect is out of sight, lock in the open (OFF) position and tag it to prevent unexpected application of power. -
Page 4: Operation
Operating Instructions and Parts Manual APPLICATION OPERATION Important: This pump is not designed for use in septic tanks or Do NOT touch pump, pump motor, water or underground vaults to handle raw sewage or gray water. It should never be used in hazardous or explosive locations. Do not use discharge piping when the pump is connected to electrical power. -
Page 5: Maintenance
Operating Instructions and Parts Manual VIP Series OPERATION (CONT’D) MAINTENANCE A pump that has a tripped thermal protector Make certain that the pump is unplugged may start suddenly! before attempting to service or remove any component. This pump is assembled in the factory using special equipment; therefore only Une pompe dotée d’un protecteur thermique authorized service dealers or qualified electricians should attempt activé... -
Page 6: Troubleshooting Chart
Operating Instructions and Parts Manual Operating Instructions and Parts Manual TROUBLESHOOTING CHART Symptoms Possible Cause(s) Suggested Remedies Pump will not 1. Blown fuse or tripped circuit breaker 1. If blown, replace with proper sized fuse or reset breaker start or run 2. -
Page 7: Limited Warranty
LIMITED WARRANTY For one year for VIP models from the date of purchase, from an authorized dealer, Wayne Water Systems will repair or replace, at its option for the original purchaser, any part or parts of its Multi-Use Pumps or Water Pumps (“Product”) found upon examination by Wayne Water Systems to be defective in materials or workmanship. - Page 8 NOTES www.waynepumps.com...
