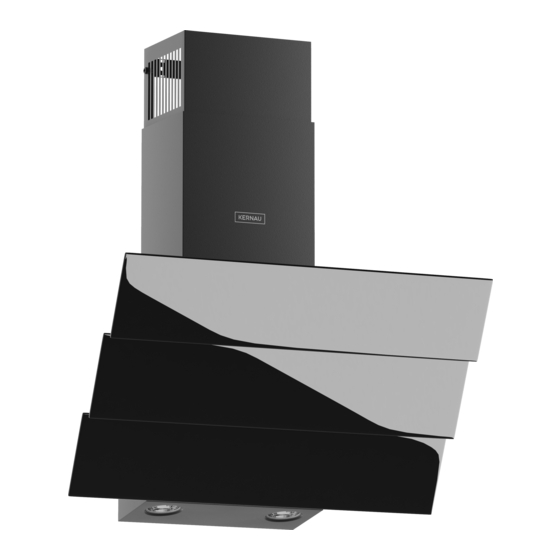

- Page 1 MANUAL INSTRUCTION OF KITCHEN HOOD KCH 3561.1 B / KCH 3561.1 W / KCH 3591.1 B...
-
Page 3: Table Of Contents
DEAR CUSTOMER, You have become users of the latest generation kitchen hood type KCH 3561.1 B, KCH 3561.1 W, KCH 3591.1 B. This hood was designed and made especially for fulfillment of yours expectations and it will certainly be part of a modern equipped kitchen. Modern constructions and new technology used in it ensure high functionality and aesthetics. -
Page 4: Technical Parameters
TECHNICAL PARAMETERS Efficiency 305m3/h Rated voltage 220-240V ~50Hz Total power 121 W Lightbulb power 2x3W (Max 3W, GU10) Ø120mm Air outlet OPERATION CONDITIONS 1. When installing the device, comply with the conditions and guidelines contained in these instructions for use. 2. -
Page 5: Purpose And Type Of Work
17. All assembly and maintenance operations should be carried out using protective gloves. 18. Before connecting the hood to the mains power supply and checking its proper operation, always check that the power cable has been correctly installed and that it has not been crushed by the hood during installation. -
Page 6: Power Connection
POWER CONNECTION The mains voltage should comply with the conditions specified on the rating plate located inside the hood. If the hood is equipped with plug, it should be placed in a socket that meets the reqirements of applicable regulations and located in easily accessible place. If the hood is not equipped with plug, instalation of the hood entrust to the qualificated technician. -
Page 7: Grease Filter
GREASE FILTER The hood is equipped with an aluminum filter. The filter is removed by moving the locks in the direction shown by the arrow (figure S1). The filter should be washed by hands as follow: by immersing it in water with a liquid at a temperature of 40-50 C for 15 minutes. -
Page 8: Mechanical Control
MECHANICAL CONTROL Turbine operation control: • 0 - turns off the turbine • 1 - turbine operation at minimum speed • 2 - turbine operation at average speed • 3 - turbine operation at maximum speed Turbine is started by pressing the selected buton. Higher gear means grates air flow. The button which is located near to the lightbulb symbol, serves to turning on / off the hood light: WAYS TO REDUCE IMPACT OF COOKING ON ENVIRONMENT To reduce the consumption of the energy should prepare the meals in the dishes under the lid.
