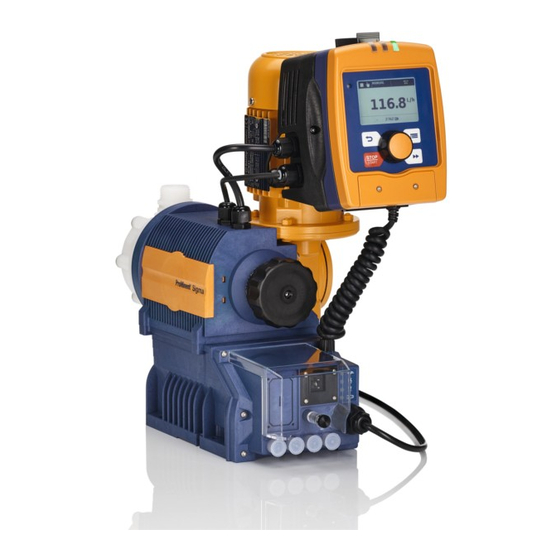

ProMinent DULCO flex Control - DFXa Quick Start

Quickstart
Page 2 English English
Connection
(Optional)

Setup DFXa

1.
Connect the power cable.
2.

Setup DULCOnneX Gateway

1.
Start the
DULCOnneX Gateway
Start the DULCOnneX Gateway
by connecting the power cable.
Page 2
Any questions?
DULCOnneX
DULCO flex Control - DFXa
Connect your
to the
using the provided
and
Press the Menu key
Navigate to Fieldbus
using the control knob
(turn to move up/down,
press to select)
Navigate to Bus Active
Select Passive
2.

Connect to WiFi

"DULCOnneXgwXXXX"
Name / SSID
DULCOnneXgwXXXX
Password
FD1960de01
On your Mobile / Tablet / PC,
connect to a WiFi network with
DULCOnneXgwXXXX
Name / SSID:
FD1960de01
Password:
(„XXXX" are the last 4 digits of the
serial number of your DULCOnneX Gateway)
dulconnex.prominent.com
DULCO flex Control - DFXa
DULCOnneX Gateway,
CAN Bus cables,
CAN Bus T-connectors
CAN Bus terminators.
Note: Proceed with one
DFXa at a time only.
Bus Active
Passive
3.
Connect the
Open your web browser and type in following address:
Enter Name / SSID
you want the DULCOnneX Gateway to be connected to.
Also make sure to choose the correct region:
0 = Europe (default)
Press Save and wait for the DULCOnneX Gateway
to reboot.
&

Checklist

Please make sure you
have the following items:
DULCOnneX Gateway
DULCOnneX access code
DULCO flex Control - DFXa
M12 CAN Bus cables
M12 CAN Bus T-Connectors
M12 CAN Bus terminators
(male / female)
WiFi connection
Smartphone, tablet or PC
You may only add one
DFXa device at a time
Before adding a
new DFXa,
the DULCOnneX Gateway needs to
be powered off for at least
All previously linked DFXa
devices need to stay powered on
to the web
DULCOnneX Gateway
http:/ /192.168.42.101
Your_WiFi
Name / SSID
xxxxxxxx
Password
Europe North Asia
Region
(0) America (2)
(1)
192.168.42.101
& Password of the WiFi network
1 = North America
dulconnex@prominent.com
XXXXXX
1 minute
2 = Asia
