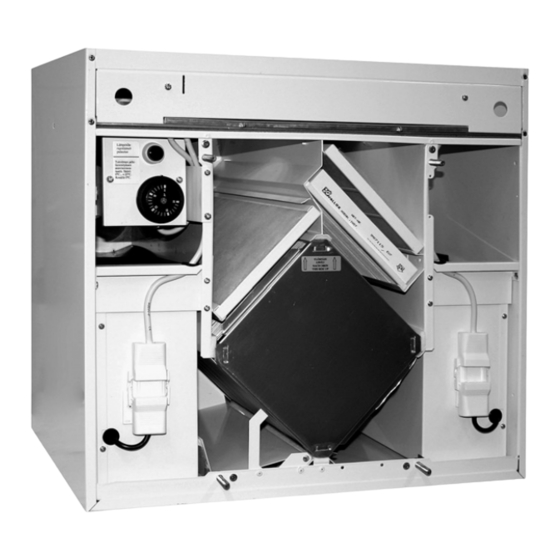

Vallox 95 SILENT Manual

The VALLOX SILENT models have been designed especially
for ventilation in individual dwellings in blocks of flats
Models:
VALLOX 75 SILENT
VALLOX 75 SILENT VKL
Technical specifications
Fans VALLOX 75
SILENT
Fans VALLOX 95
SILENT
Heat recovery
Heat recovery bypass
Post-heating
Filters Supply air
Extract air
Weight
Service switch
Power adjustment
Input power
and data VALLOX 75 SILENT
VALLOX 95 SILENT
VALLOX 75 SILENT VKL
VALLOX 95 SILENT VKL
SILENT
and terraced houses.
VALLOX 75 SILENT
for dwellings with an area of 40–80 m
VALLOX 95 SILENT
for dwellings with an area of 80–120 m
• Efficient sound insulation in the unit
• Sound silencing fan construction
• Ceiling mounting prevents sound from passing through
to the wall structures in the dwelling
• Supply and extract air ventilation with heat recovery
• Good filtering
• In-built heat recovery bypass for summer ventilation
• Versatile control alternatives
• Handy ceiling mounting plate – for simple and quick
mounting
• Service switch as standard
All models are available as R and L models
VALLOX 95 SILENT
VALLOX 95 SILENT VKL
Supply air
105 W
Extract air
105 W
180 W
Supply air
Extract air 180 W
Plate heat exchanger, efficiency approx. 60%
Summer / winter damper
Electric 500 W radiator or water radiator (VKL)
G 3 + F 7
G 3
52 kg
Door switch
Cooker hood PTX / PTXP, control centre 1992/1992 EK
or remote monitoring control centre 1993 YK
230 V, IP 34
105 W, 0,9 A + post-heating 2.2 A, 3.1 A in all
180 W, 1,6 A + post-heating 2.2 A, 3.8 A in all
105 W, 0,9 A
180 W, 1,6 A
© VALLOX • We reserve the right to make changes without prior notification.
65 dm 3 /s 60 Pa
75 dm /s 75 Pa
3
85 dm /s 50 Pa
3
95 dm 3 /s 75 Pa
• 1.09.353E
• 6.8.2008
• Model 3510
© VALLOX
Model 3510
2
2
