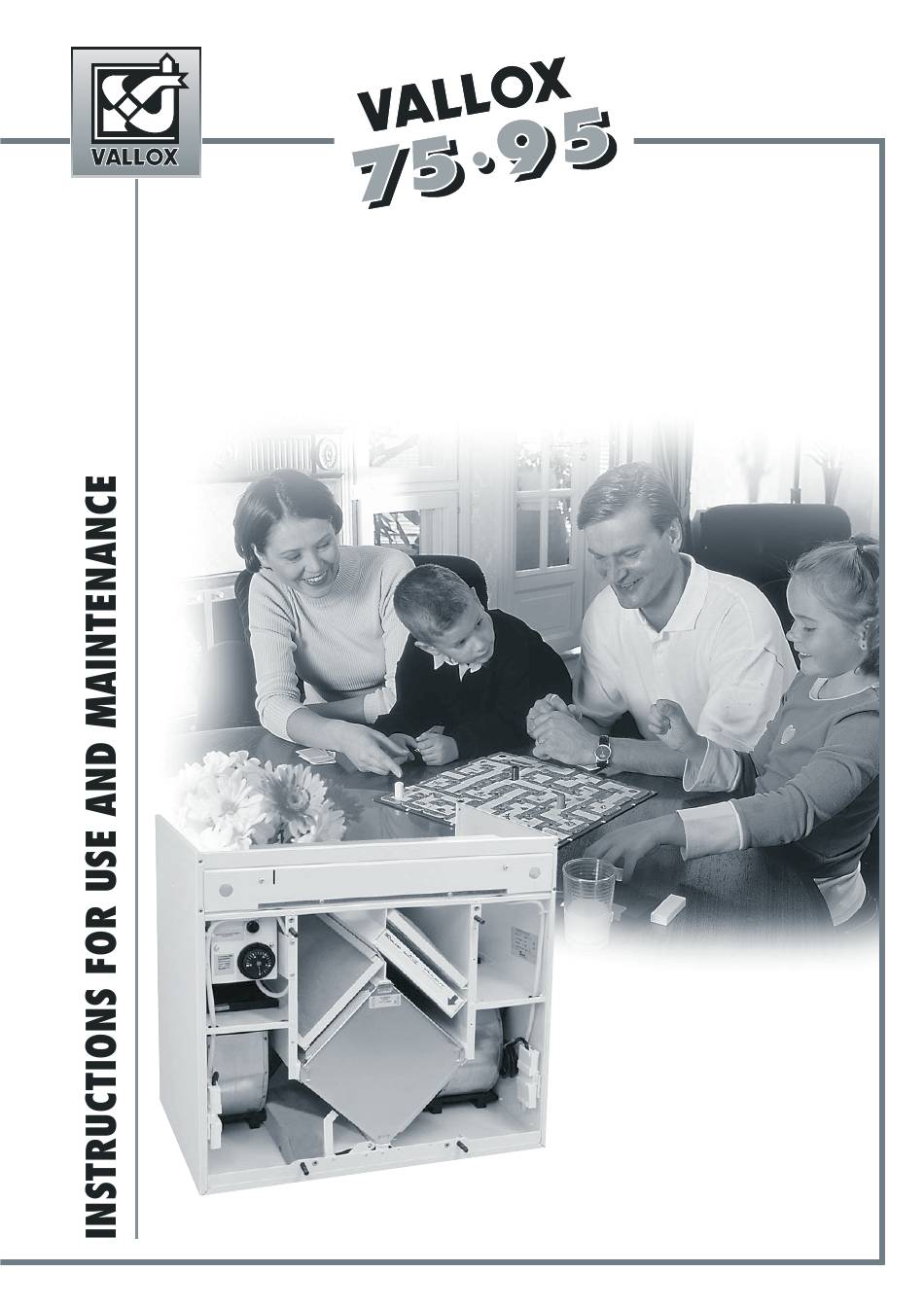

- Page 1 • 1.09.292E • 13.02.07 © VALLOX Type: 3510 Supply and extract air ventilation with heat recovery For blocks of flats, terraced houses and detached houses.
-
Page 2: Main Parts
(the most common way in blocks of flats to abate cooking fumes. Small detached houses and terraced houses are normally equipped with a sepa- rate cooker hood. © VALLOX • We reserve the right to make changes without prior notification. - Page 3 During the heating season window ventilation consumes, uncontrollably, a considerable amount of energy. An open window lets in dusty and dirty air. An open window also lets in noise pollution. © VALLOX • We reserve the right to make changes without prior notification.
-
Page 4: Ventilation System
VALLOX 75/95 VENTILATION SYSTEM As the name says, a dwelling-specific ventilation system (blocks of flats, terraced houses, small detached houses) is meant for only one dwelling. The system includes two sides. The extract air side takes dirty and humid air out, while the supply air side brings a corresponding amount of outdoor air in. -
Page 5: Initial Adjustment
SWITCH POSITION 70 V 90 V 120 V 135 V 160 V 180 V 230 V Living area (m Air flow (dm Total electricity consumption of fans (W) © VALLOX • We reserve the right to make changes without prior notification. -
Page 6: Cooker Hood Control
VALLOX 75/95 INSTRUCTIONS FOR USE Adjustment of the power of ventilation VALLOX 75 and VALLOX 95 ventilation units can be controlled with either a cooker hood or a separate control centre. Cooker hood control The cooker hood is connected to the ventilation unit and is used to control air circulation in the whole dwelling. - Page 7 Post-heating with electric radiator Electric radiator VALLOX 75 and VALLOX 95 come standard with a 500 W electric radiator for heating supply air. The temperature of supply air is adjusted at the thermostat regulator located inside the unit. Adjustment range of temperature is approximately +0...+25 °C.
- Page 8 SUMMER/WINTER VENTILATION In winter use the heat recovery cell of VALLOX 75 and VALLOX 95 recovers heat from the air leaving the dwelling and uses it to heat the air coming from the outside. The damper is in down position.
-
Page 9: Maintenance Instructions
Filter guard Vallox 75/95 (option) In the left handed model (model L) outdoor air VALLOX 75/95 can be equipped with an optional filter guard. The filter guard indicator comes from the left side of the unit. The filters lights up at speeds 3 and 4 when the filters are clean; this is normal and does not call for and the heating radiator (D) change places any maintenance activities. - Page 10 VALLOX 75/95 MAINTENANCE INSTRUCTIONS FANS The supply and extract air fans (D and E) have been fastened with rubber collars (F). When removing the fans for maintenance, release the ear (K) fixed to the fan over the rubber collar (F) flange by turning the ear to the upright position.
- Page 11 This dust sticks to the ceiling or the wall caused by the flow coming from the valve. © VALLOX • We reserve the right to make changes without prior notification.
- Page 12 According to the factory setting, the defrost thermostat works at 4°C. Vallox Oy FIN-32200 Loimaa Finland Telephone +358 2 7636 300 Fax +358 2 7631 539 www.vallox.com © VALLOX • We reserve the right to make changes without prior notification.
