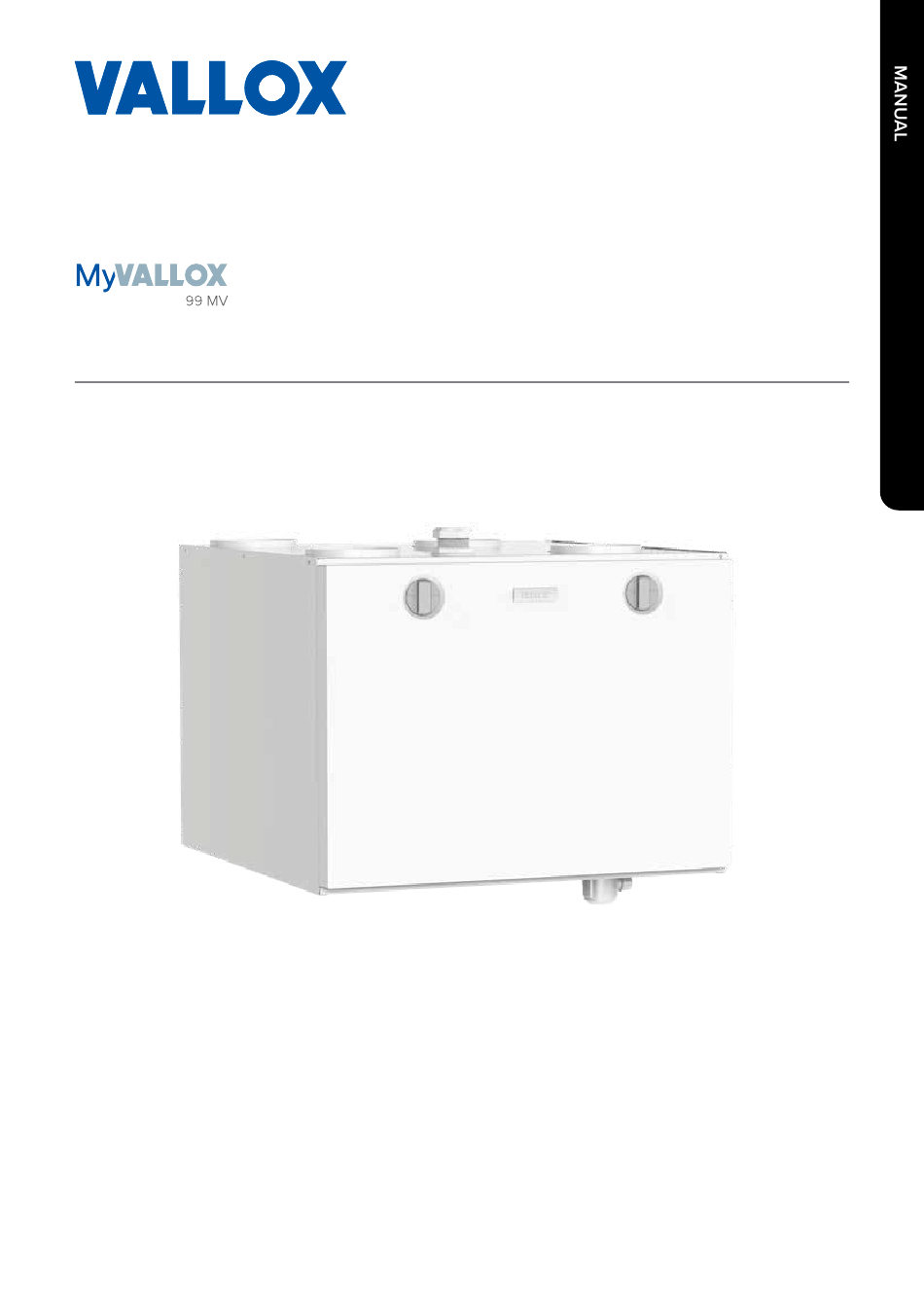

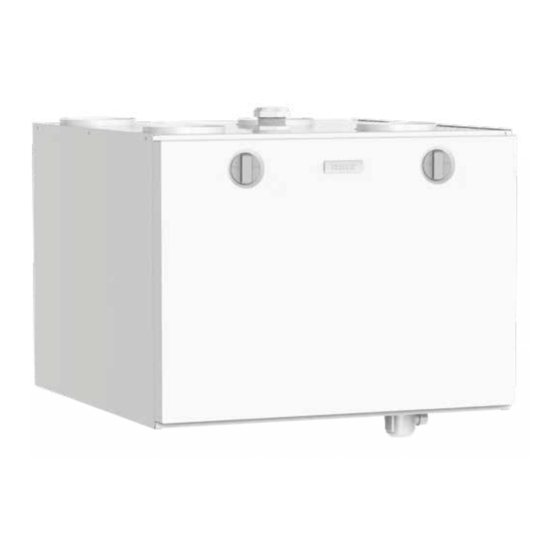

- Page 1 Model Document Vallox 99 MV D10813 Type Valid from 3755 01.01.2022 Updated 19.06.2023 Manual Ventilation unit...
-
Page 2: Table Of Contents
Vallox Silent Klick siphon ........ -
Page 3: Safety
INTENDED USE device. All Vallox ventilation units have been designed to provide appropriate and continuous ventilation so as to present no threat to health and to maintain structures in good condition. IMPORTANT... -
Page 4: Safety Signs Used In The Instructions
INSTALLATION OPTIONS NOTE The standard equipment and • Vallox 99 MV can be mounted either on the wall, or on the ceiling available accessories by using a mounting plate (optional). vary from country to country. SYSTEM DESCRIPTION Internet 2. -
Page 5: Ventilation Unit Control
NOTE For the MyVallox Cloud/ Home instructions, Ventilation unit control options please go to vallox.techmanuals.info/ Operation of the Vallox ventilation unit can be controlled by the ValloxMV/ENG/help/ following means: webhelp • Through the MyVallox control panel installed in the building. -
Page 6: Main Parts
MAIN PARTS R model in the figure Extract air fan Additional heating resistor Supply air fan Safety switch Fine filter for supply air Internal carbon dioxide and humidity sensor Heat recovery cell Ceiling bushing for electric wires Bypass damper of the HR cell Control panel Coarse filter for supply air Carbon dioxide sensor (optional) -
Page 7: Installation
+10°C. MOUNTING ON THE CEILING Vallox 99 MV can be equipped with an optional ceiling mounting plate. To attach the ceiling mounting plate: • On rafter frames or other frame structure with M8 thread bars so that they withstand the weight of the unit. -
Page 8: Installing The Ventilation Unit To The Ceiling Mounting Plate
Installing the ventilation unit to the ceiling mounting plate Install the ceiling mounting plate with M8 thread bars so that it is horizontally level. NOTE The end of the thread bars must be 5 mm or less below the fastening nut. Do not fasten the ceiling mounting plate too tight to the ceiling. -
Page 9: Removal Of Condensing Water
Space required by the alternative Vallox Silent Klick siphon installation method (elbow) MEASURING AND ADJUSTING THE AIR FLOWS OF THE VENTILATION UNIT The accessories delivered with the unit include four (4) air flow measuring tubes. -
Page 10: Dimensions And Duct Outlets
DIMENSIONS AND DUCT OUTLETS Main parts Dimensions and duct outlets Dimensions R model in the figure. In the L model, the parts are mirrored 8. Post-heating resistor 1. Extract air fan in front of the supply air fan 2. Supply air fan 9. -
Page 11: Maintenance
Disconnect the ventilation unit from the mains unit must be at least electricity supply. 500 mm. 2. Open the door of the Vallox ventilation unit by undoing the finger screws. 3. Lift the door off. 4. Remove the old filters (A, B, C) and discard them. -
Page 12: Cleaning The Heat Recovery Cell
To check and clean the heat recovery cell: damaged. Disconnect the ventilation unit from the mains electricity supply. 2. Open the door of the Vallox ventilation unit by undoing the finger screws. 3. Lift the door off. CAUTION The door is heavy. -
Page 13: Cleaning The Fans
To clean the fan: Disconnect the ventilation unit from the mains electricity supply. 2. Open the door of the Vallox ventilation unit by undoing the finger screws. 3. Lift the door off. CAUTION The door is heavy. -
Page 14: Technical Specifications
Sound pressure level coming through the envelope of the unit in the room in which it is installed (10m² sound absorption) Adjustment position Adjustment position (%) , dB (A) You can calculate the sound values for each operating point with the Vallox MySelecta software. -
Page 15: Internal Electrical Connection
Post-heating resistor with 90°C and 11V1 11.1 V operating voltage 130°C overheating protection AN/I Analog input 0-10VDC CABLE COLOURS RM/I 24V relay input Black RM/O 24V relay output Blue Brown White Grey Yellow YEGN Yellow-green © Vallox Oy - All rights reserved... -
Page 16: External Electrical Connection
EXTERNAL ELECTRICAL CONNECTION 7028350 MyVallox 2014-08-29 JS MyVallox REMOTE control sensor MONITORING panel 1 W Modbus RTU MyVallox 0.3W 2x2x0,5+0,5 sensor 2x2x0,5+0,5 MyVallox MyVallox 2x2x0,5+0,5 control CO 2 panel 1.2W sensor 1 W 2x2x0,5+0,5 2x2x0,5+0,5 External Analog input temperature sensor two different 2x0,5 2x0,5 NTC 4K7... -
Page 17: External Electrical Connection For Controlling The Mlv Duct Radiator
Digital and analog ground potential RM/I 24V relay input RM/O 24V relay output RS_A Local hardware Modbus A signal Circulation pump RS_B Local hardware Modbus B signal External temperature sensor connector Solenoid valve D/I1 Digital input 1 © Vallox Oy - All rights reserved... -
Page 18: Duct Radiator Operation
DUCT RADIATOR OPERATION Always follow first and foremost the connection diagram provided by the HVAC designer or heat pump manufacturer. If the duct NOTE: Also read the duct radiator manual. radiator is used in the supply air duct, it The accompanying figure shows an example of the can only be used for arrangement for connecting the heating/cooling radiator unit cooling. -
Page 19: Duct Radiator Operation Chart
Feed from the distribution board External electrical junction box for the MV Air extraction External NTC sensor for Vallox MV ventilation units Duct radiator (reverse connection) 24 VDC relay/contactor for controlling the pump and the solenoid valve. Not included in the delivery. (For example, ABB CR-P024DC2) Heat pump One-way valve. -
Page 20: Exploded View And Parts List
930621 (optional) MyVallox carbon dioxide Lower support for HR cell 4114303 Safety switch 948377 949111 sensor (optional) MyVallox VOC sensor Siphon Vallox Silent Klick 3494701 Motherboard 949032-1 26. 949112 (optional) Glass tube fuse 63mA Door 4116174 952490 Plastic screw Vallox 99... -
Page 21: Conformity Certificates
CONFORMITY CERTIFICATES... - Page 23 © Vallox Oy - All rights reserved...
- Page 24 Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND...
