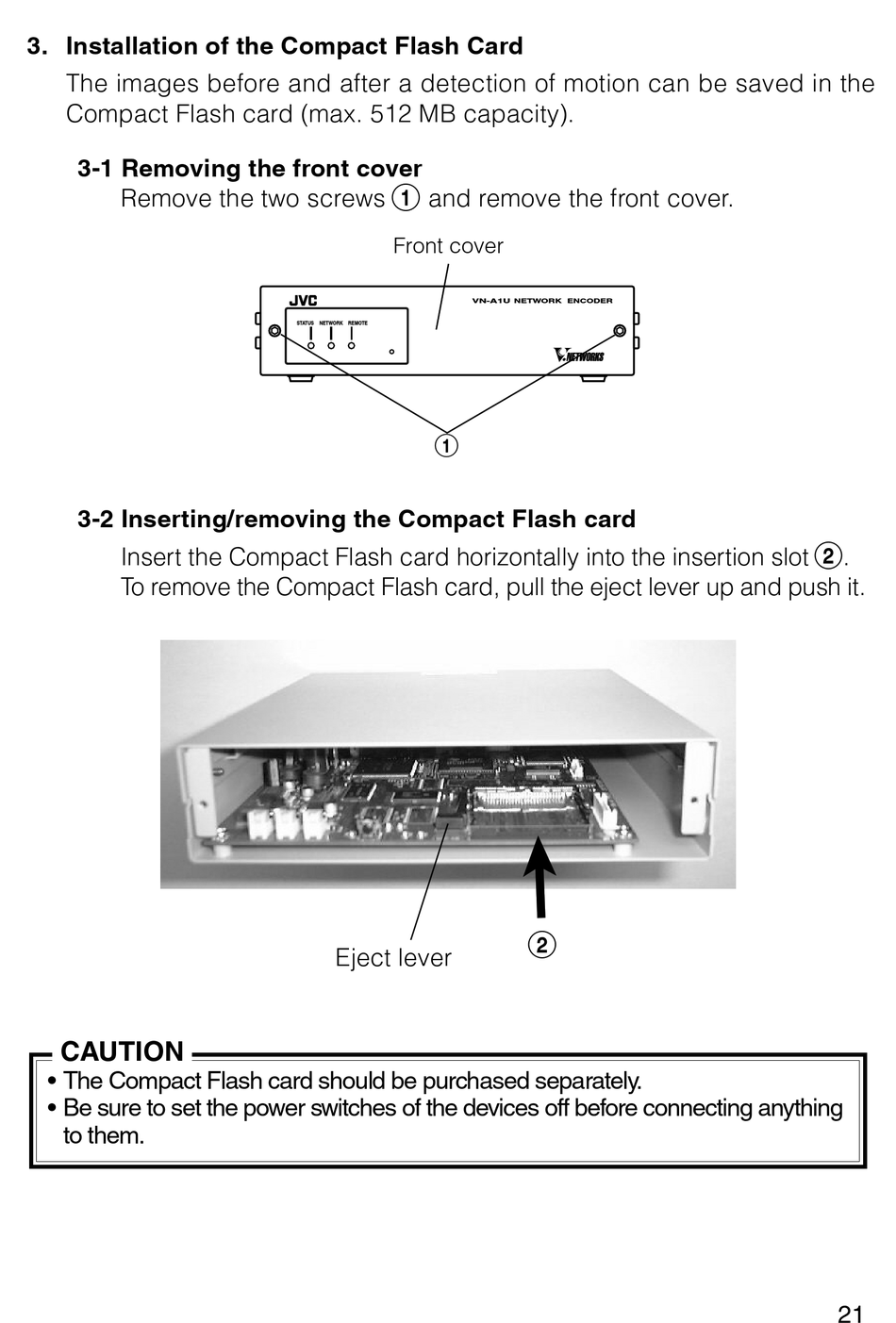

3. Installation of the Compact Flash Card
The images before and after a detection of motion can be saved in the
Compact Flash card (max. 512 MB capacity).
3-1 Removing the front cover
Remove the two screws
3-2 Inserting/removing the Compact Flash card
Insert the Compact Flash card horizontally into the insertion slot
To remove the Compact Flash card, pull the eject lever up and push it.
CAUTION
• The Compact Flash card should be purchased separately.
• Be sure to set the power switches of the devices off before connecting anything
to them.
1
and remove the front cover.
Front cover
STATUS NETWORK REMOTE
1
Eject lever
VN-A1U NETWORK ENCODER
2
2
.
