ROSE DISPLAYS ECONOFRAME WITH TOP AND BOTTOM WALL MOUNTS Instruction Sheet

EconoFrame™

Parts

Instructions For Hanging

Step 1

Locate the two split rails and the solid rail that is the
same length as the split rails.
Insert corner brackets into side EconoFrame rails.
Insert two corner brackets into each end of the solid
side rail. Insert one corner bracket into each end of
each split side rail. Fig. 1 & Fig. 2
Note: Tension tabs on corner brackets face
towards outside of frame.

Step 2

Finish assembling frame by following sequence in
Fig. 3.

Step 3

Install 2 wall mounting hangers using a Phillips head
screwdriver. Make sure that the wall mounting
hangers are level. A plastic expansion anchor is
suggested for drywall installations.
Fig. 4

Step 4

Slide EconoFrame onto wall mounting hangers.
Fig 5

Step 5

Install 2 bottom wall hangers. This secures
frame in place. Fig 6

Step 6

Insert poster. Fig 7

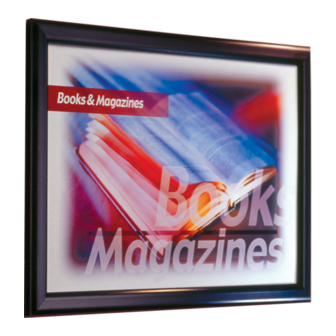

Note: The EconoFrame shown here is a round
profile. It is available in either square or round
profile. Assembly is the same for top and side load.
The EconoFrame is a trademark of Rose Displays, Ltd. Neither the
manufacturer nor any sales agent may be held liable for injury, loss or
damage resulting from the use of these products.
Part #04INSEconoFrame4Hangers
Incept-2.11.04
8
Corner
EconoFrame
Brackets
Rails 12EF-100
Instruction Sheet
3 2
EconoFrame
Split Rails
Figure 1
solid rail
solid rail
Figure 3
Figure 5
2
Wall Mounting
Hangers
06-6067
Figure 2
Figure 4
Figure 6
35 Congress Street, Salem MA 01970
Tel# 1-800-631-9707 Fax# 1-800-560-2890
e-mail:signware@rosedisplays.com
2
Bottom Wall
Hangers
06-6069
Figure 7
